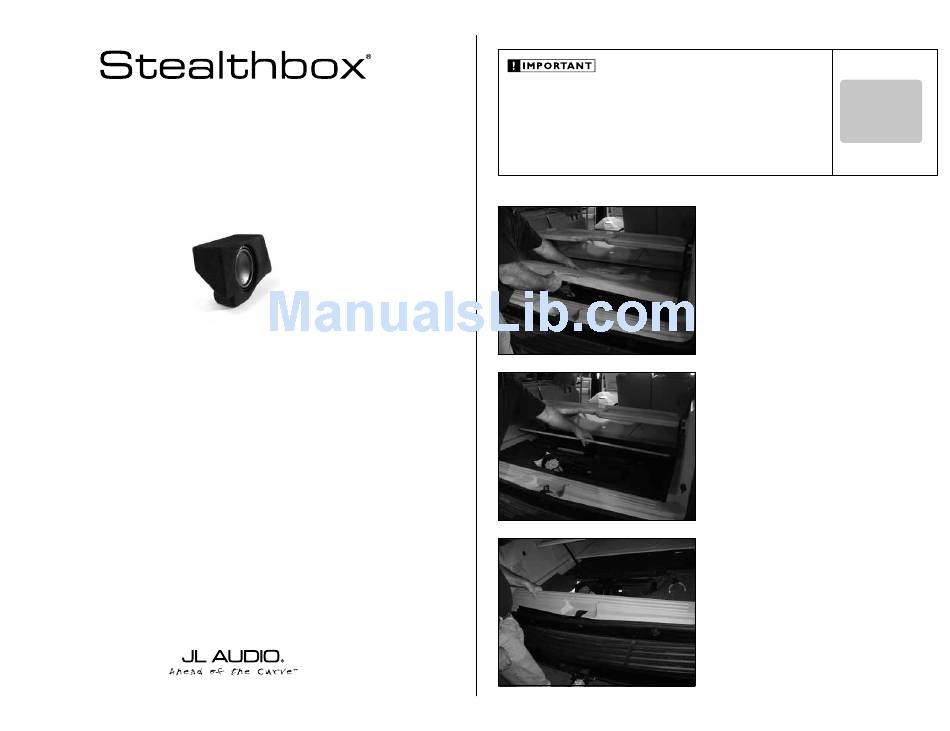

I N S T A L L A T I O N G U I D E
for the
SB-F-EXPEDEL/10W3v3
SB-F-EXPEDEL/10W3v3
2007 - Up Ford Expedition EL (long wheel base)
2007 - Up Ford Expedition EL (long wheel base)

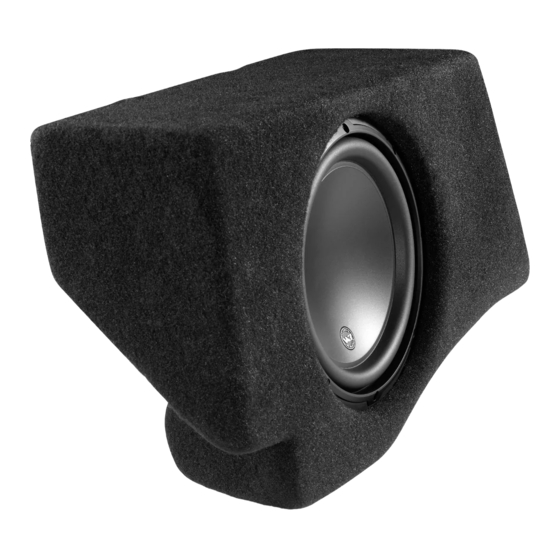

Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
®
for your automotive sound system. With proper
®
installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-EXPED2/10W3v3_INSTR_SKU#011237
SB-F-EXPED2/10W3v3_INSTR_SKU#011237
INSTALLATION
D I F F I C U L T Y :
2
ESTIMATED TIME:
1-2 HOURS
1-2 HOURS
S T E P 1
Collapse the third row seating.
Bring the lift tray to the up positions.
Remove the rear most storage cover.
S T E P 2
Remove the front storage cover
S T E P 3
Remove the tailgate's lower sill plate.
Continued on Next Page
OUT
OF
5
Advertisement
Related Manuals for JL Audio Stealthbox SB-F-EXPED2/10W3v3
Summary of Contents for JL Audio Stealthbox SB-F-EXPED2/10W3v3
- Page 1 Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.
- Page 2 Unplug the power lift gate switch, from behind the side panel. S T E P 7 Pop out the seat belt trim panel from the side panel. Page 2 • JL Audio, Inc 2007 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 S T E P 8 With a T-50 torx socket, remove the bolt that secures the driver’s side third row seat belt to the floor.
- Page 3 Remove the driver’s rear door sill plate. S T E P 1 5 Remove the tailgate’s upper sill plate. Remove the upper d-pillar plastic cover. Page 3 • JL Audio, Inc 2007 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 S T E P 1 6 With an 8mm socket, remove the bolt that secures the side panel metal bracket to the floor.
- Page 4 Place a supplied 3/8-inch lock washer then 3/8-inch flat washer onto each supplied 3/8-inch bolt. Use two of these bolt assemblies to secure the supplied L-bracket to the top of the Stealthbox®. Page 4 • JL Audio, Inc 2007 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 S T E P 2 4 Use the last bolt assembly to secure the supplied Z-bracket onto the bottom front of the Stealthbox®, as...
- Page 5 With a drill and a 1/8-inch drill bit, drill through the impression made in each wax square and into the vehicle’s side panel. Remove the wax squares. Page 5 • JL Audio, Inc 2007 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 SB-F-EXPED2/10W3v3_INSTR_SKU#011237 S T E P 3 2 Remove the screws from the grille assembly.
- Page 6 . j l a u d i o . c o m All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
