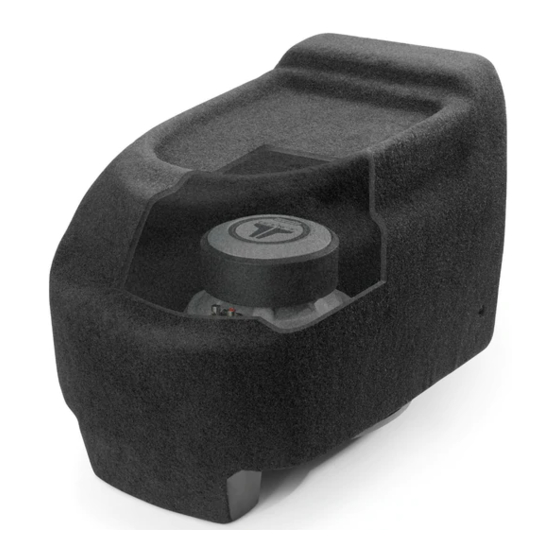

Stealthbox ®
I N S T A L L A T I O N G U I D E
for the
SB-F-RTRKCTR/12W3v2
Rear Console Only
(Fits 2002-Up Ford SuperCrew
Harley Davidson, King Ranch;
2001-2002 Lincoln Navigator and
2002 Blackwood )
This Stealthbox is a product
which requires professional
installation skills and tools.
Please read this installation guide
thoroughly before beginning the
project. It will guide you step by
step through the installation. Several
of the steps in this process may
require two people to accomplish.
It is absolutely vital that the
enclosure be properly mounted to
the vehicle according to these
instructions. Failure to mount the
enclosure properly presents two
problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused
by the force exerted by the
woofer(s) and 2) A loose enclosure
presents a serious safety hazard in
the event of a collision or sudden
deceleration.
Please enjoy your JL Audio
Stealthbox responsibly.
w w w . j l a u d i o . c o m

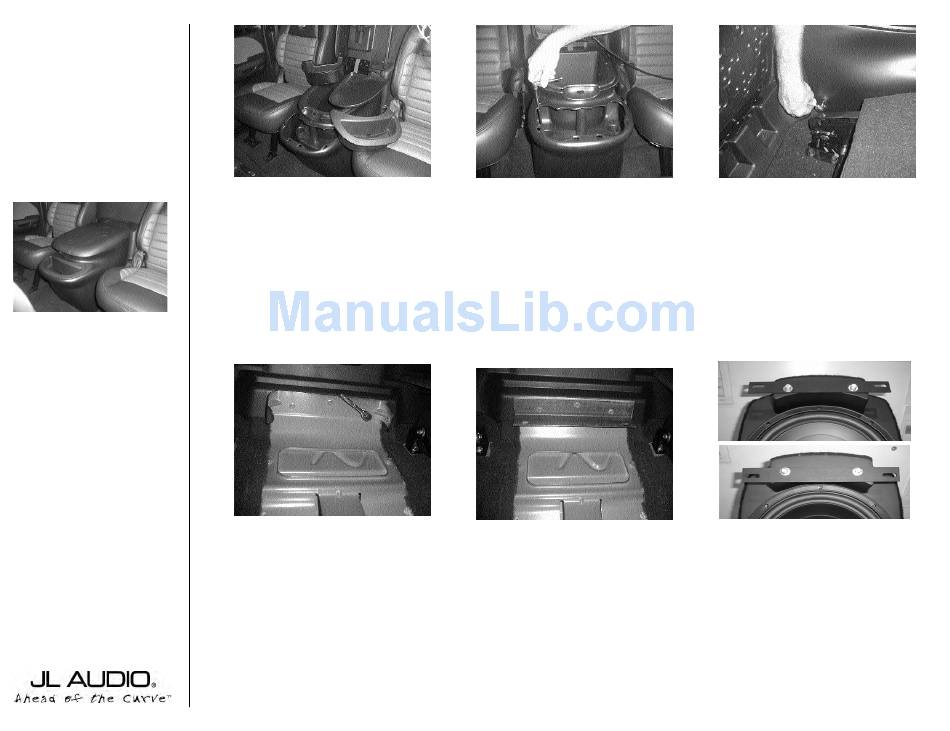

START
HERE
➔
STEP 1: Remove front exposed pocket,
internal instert and rubber flooring.
➔
STEP 4: With the OEM console removed
you , unbolt the rear bracket.
S B - F - RT R K C T R / 1 2 W 3 v 2 - D 2 , J L AU D I O, I n c 2 0 0 2
➔
STEP 2: With an 8mm socket and long
extenstion, remove the four bolts. Located
where the front pocket was removed from in
STEP 1.
➔
STEP 5: The Stealthbox is shipped with two
brackets attacahed to it. Remove the rear
angle bracket from the Stealthbox.
Mount this black angle bracket to where the
OEM bracket was removed.
Use the three bolts that was removed in
STEP4.
Pa g e 1
➔
STEP 3: Remove the pair of bolts from side
rear of the OEM console.
You will have to lower the two rear seats and
lift up drop flooring to expose the bolts.
After the pair of bolts are removed, remove
OEM console out of truck.
➔
STEP 6: The top picture shows how the front
bracket is installed when shipped.
Remove all mounting hardware and flip the
front bracket. Remount the flipped bracket
with the same hardware.
The bottom picture shows the bracket
properly mounted for install.
➔
Continued on Page 2 ➔
S h e e t S K U # 0 1 1 1 5 9 R ev i s i o n 1 1 / 1 8 / 2 0 0 3
