I N S T A L L A T I O N G U I D E
for the

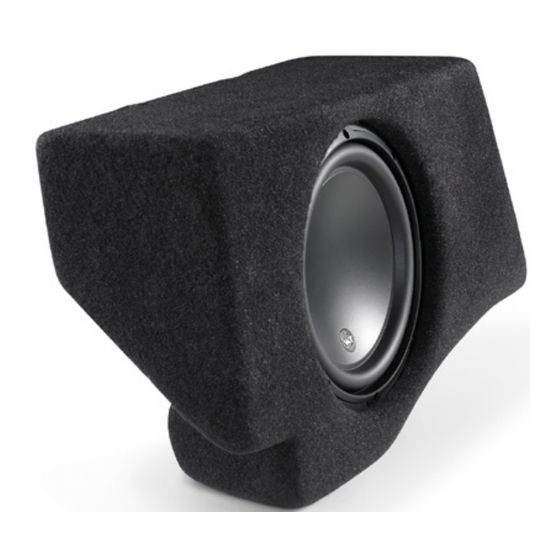

SB-F-EXPDEL/10W3v3
SKU# 94343
2007 - 2017 Ford Expedition EL (long wheel base)
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The installation
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-EXPDEL/10W3v3_INSTR_SKU#011237
INSTALLATION
D I F F I C U L T Y : 2
OUT
OF
ESTIMATED TIME:
1-2 HOURS
S T E P 1
Collapse the third row seating.
Bring the lift tray to the up positions.
Remove the rear most storage cover.
S T E P 2
Remove the front storage cover
S T E P 3
Remove the tailgate's lower sill plate.
Continued on Next Page
