JL Audio Stealthbox SB-F-RTRKCTR/12W3v2 Installation Manual page 4

Cont.
From
Page 3
➔

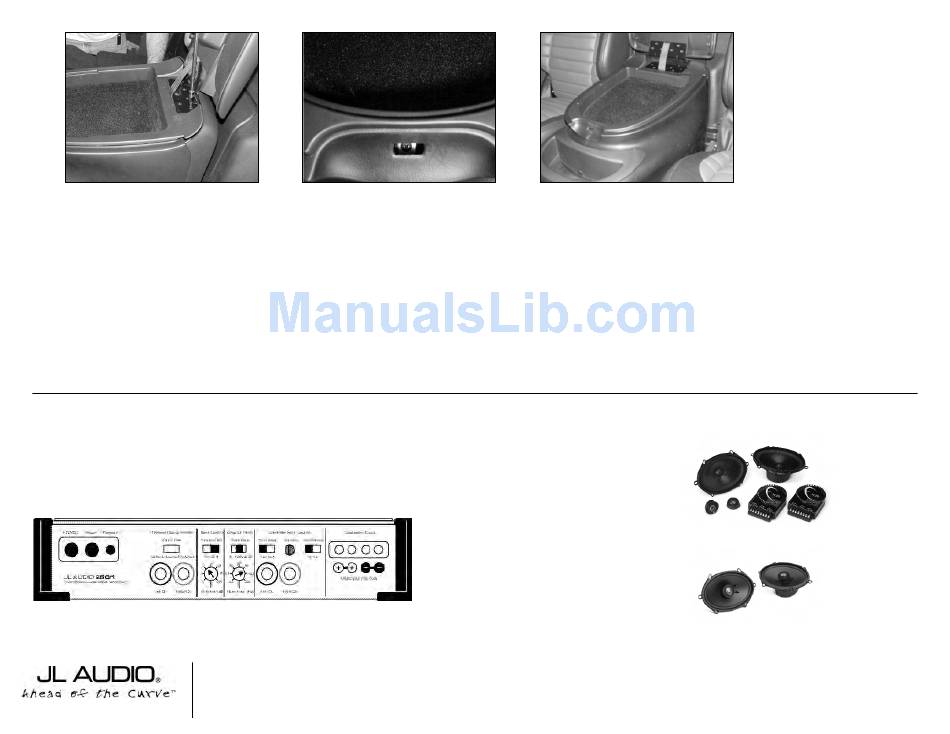

STEP 21: Mount lid strap using the
"7th" T-15 Torx bolt.
Specifications:
Enclosure Type: Acoustic Suspension (Sealed)
Driver Type: One JL AUDIO 12W3v2-D2 Subwoofer
Nominal Impedance: 4Ω
Cont. Power Handling: 300 Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 250/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 250/1 when being used to power the JL Audio Stealthbox®.
The JL Audio 250/1 is a very versitile audio component. Please consult the owner's manual for detailed information
about installing and tuning this amplifier.
w w w . j l a u d i o . c o m
➔
STEP 22: With OEM outer console, OEM
inner cut console and hinged lid mounted.
Look in the lid latch catch, located on the
front of OEM inner console.You will see the
small angle bracket that was mounted in
STEP 11. Drill 1/8" hole through the lid latch
catch using the hole from the small angle
bracket as a guide. Mount the small angel
bracket with supplied #8x1/2" black pan head
screw to the Stealthbox.
10369 N. Commerce Pkwy, Miramar, Florida 33025-392
S B - F - RT R K C T R / 1 2 W 3 v 2 - D 2 , J L AU D I O, I n c 2 0 0 2
➔
STEP 23: Repalce front pocket that was removed
in STEP 1 and close the lid.
Mid/High Frequency Driver Information:
Front Location Driver Size:
5"x7" (1271mm x 177.8mm)
Applicable JL Audio Products:
TR570-CXi, XR570-CXi or CSi
Rear Location Driver Size:
5"x7" (1271mm x 177.8mm)
Applicable JL Audio Products:
TR570-CXi, XR570-CXi or CSi
Phone: 954.443.1100
Pa g e 4
➔
CONGRATULATIONS!
INSTALL COMPLETE.
Included Hardware:
1) Black Pop Rivet
1) #4 Steel Flat Washer
1) Small Angle Bracket
1) #8x1/2" Pan Head Screw
2) 1/4" Flat Washers
2) 1/4" Lock Washers
2) #6 x 40mm Bolts
2) Round Steel Spacers
2) Tree Push-In Rivets
XR570-CSi
XR570-CXi
Fax: 954.443.1111
S h e e t S K U # 0 1 1 1 5 9 R ev i s i o n 1 1 / 1 8 / 2 0 0 3
