JL Audio Stealthbox SB-F-RTRKCTR/12W3v2 Installation Manual page 3

Cont.
From
Page 2
➔

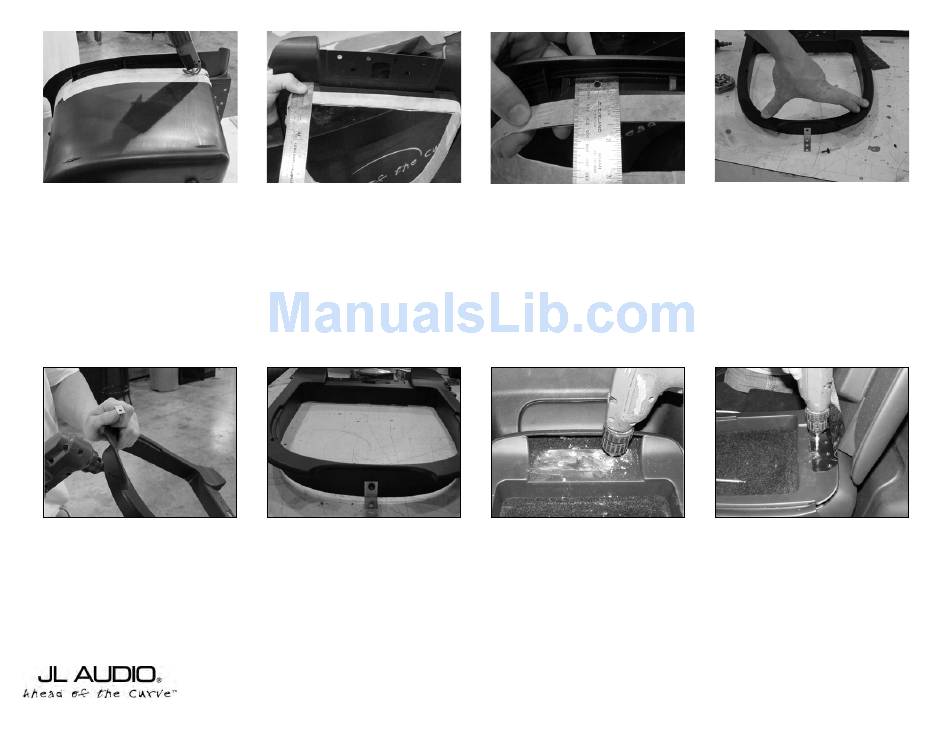

STEP 16: Use masking tape to mark cutting
template.
IMPORTANT!!!! Please read STEP 16 A and
B before cutting.
Using a suitable saw to cut OEM inner
console.
➔
STEP 17: B) Using an 1/8" drill bit, drill
marked hole.
w w w . j l a u d i o . c o m
➔
IMPORTANT!!!!
A) Cut 1 1/2" under lip.Where there is no
ledge/reinforcement
➔
STEP 17: C) Mount the small angle bracket using
the suppied black rivet and small washer.
S B - F - RT E K C T R / 1 2 W 3 v 2 - D 2 , J L AU D I O, I n c 2 0 0 2
➔
IMPORTANT!!!!
B) Where there is a ledge/reinforcement cut
1 5/16" under the ledge/reinforcement.
➔
STEP 18: Place inner (cut) OEM console inside
outter OEM console / top of Stealthbox.
Drill six holes using 1/8" drill bit. Using the OEM
inner console's lid mounting holes as guides.
STEP 19: Using the six(out of seven) T-15 Torx
bolts that was removed in STEP 10, mount lid.
Pa g e 3
➔
STEP 17: A) Line up small angle bracket to front
middle of OEM inner(cut) console and mark hole.
➔
STEP 20: With lid mounted, drill "7th" hole
using a 1/8" drill bit.
Don't forget to bolt down lid strap with the
7th t-15 Torx screw.
➔
Continued on Page 4 ➔
S h e e t S K U # 0 1 1 1 5 9 R ev i s i o n 1 1 / 1 8 / 2 0 0 3
