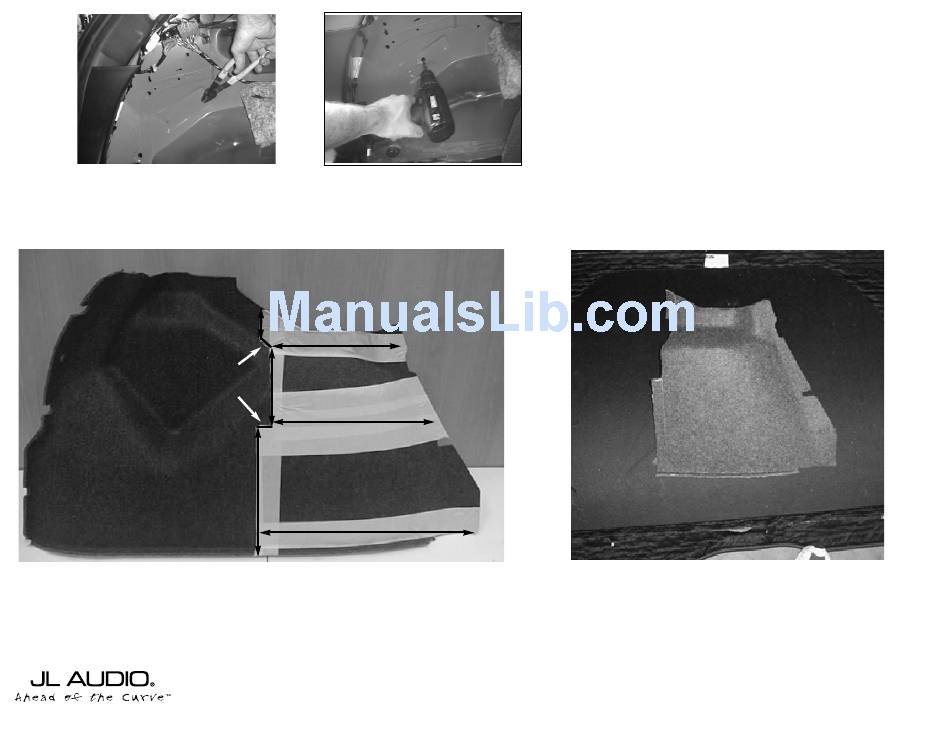

STEP 7: Pull plastic mounting stud out from
the rear side metal panel were the MOLEX
wiring plug was removed in Step 4.
STEP 9: Using a measuring tape and masking
tape, define the area to be cut as shown by
the picture (above) and dimensions (to the
right). All dimensions follow the contour of
the panel.
w w w . j l a u d i o . c o m
➔
STEP 8: Enlarge this hole to 1/2 in. (12.7 mm).
®
CAUTION: Always check for obstructions
before drilling.
ALWAYS WEAR EYE PROTECTION
WHEN DRILLING.
A
C
B
E
D
F
G
H
A) 2.5 in. (63.5mm)
B) 1.0 in. (25.4mm)
C) 11.0 in. (279.4mm)
D) 7.75 in. (196.85mm)
S B - F - Z X 3 / 1 0 W 3 , J L AU D I O, I n c 2 0 0 2
➔
➔
E) 1.25 in. (31.75mm)
F) 13.5 in. (342.9mm)
G) 9.375 in. (238.125mm)
H) 17.5 in. (444.5mm)
Pa g e 2
STEP 10: After panel has been cut, it should
resemble this.
S h e e t S K U # 0 1 1 1 5 7 R ev i s i o n 0 6 / 1 8 / 0 2
Continued on Page 3 ➔
