I n s t a l l a t I o n G u I d e
for the

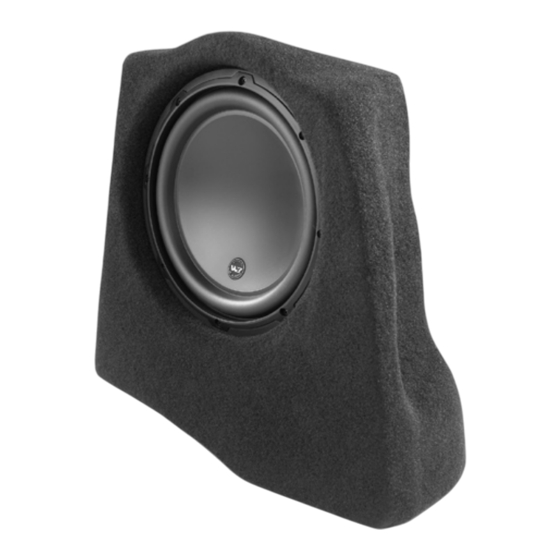

SB-F-Edg/10W3v3
sKu#94376
2007+ Ford edge
Thank you for choosing a JL Audio Stealthbox
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
®
for your automotive sound system. With proper
®
installed by your authorized JL Audio
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-F-EDG/10W3v3 INSTR_SKU# 011254
InstallatIon
d I F F I C u l t Y :
3
estImated tIme:
2-3 HouRs
s t e P 1

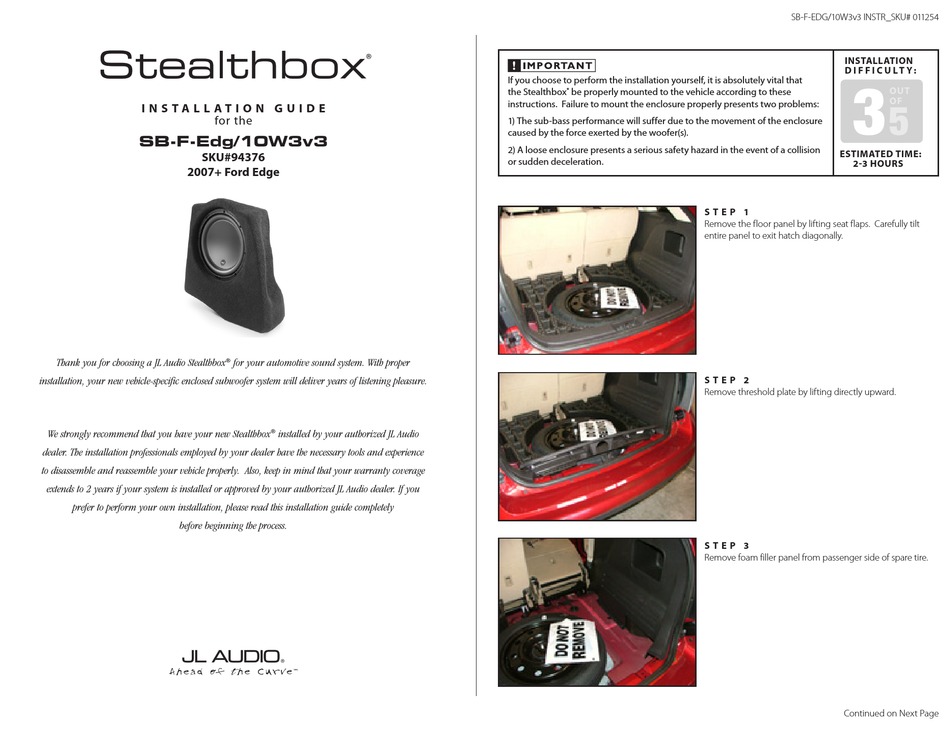

Remove the floor panel by lifting seat flaps. Carefully tilt
entire panel to exit hatch diagonally.
s t e P 2
Remove threshold plate by lifting directly upward.
s t e P 3
Remove foam filler panel from passenger side of spare tire.
Continued on Next Page
out
oF
5
