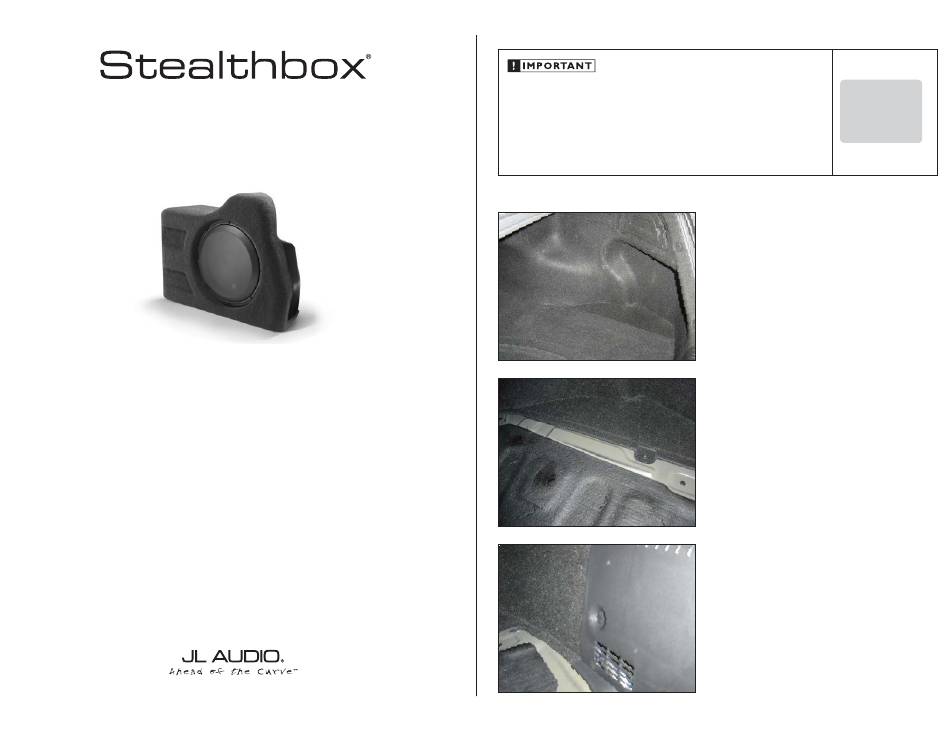

I N S T A L L A T I O N G U I D E
for the
SB-HY-ELANMD/12W3v3
SKU# 94531
2011 - Up Hyundai Elantra
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized
JL Audio dealer. The installation professionals employed by your dealer have the necessary tools
and experience to disassemble and reassemble your vehicle properly. Also, keep in mind that your
warranty coverage extends to 2 years if your system is installed or approved by
your authorized JL Audio dealer. If you prefer to perform your own installation,
please read this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-HY-ELANMD/12W3v3 INSTR_SKU# 011330
INSTALLATION
D I F F I C U L T Y :
2
OUT
OF
ESTIMATED TIME:
1 HOUR
S T E P 1
Empty out the trunk of the car so that you have a clean area
to work in.
S T E P 2
Remove the trunk floor from the vehicle. Locate and remove
the Phillips head screw holding the trunk liner to the trunk
floor.
S T E P 3
Remove the three clips that hold the rear sill panel in place,
then carefully pull up on the panel to release the remaining
clips. Remove the sill panel from the vehicle.
Continued on Next Page
5
