owner's manual

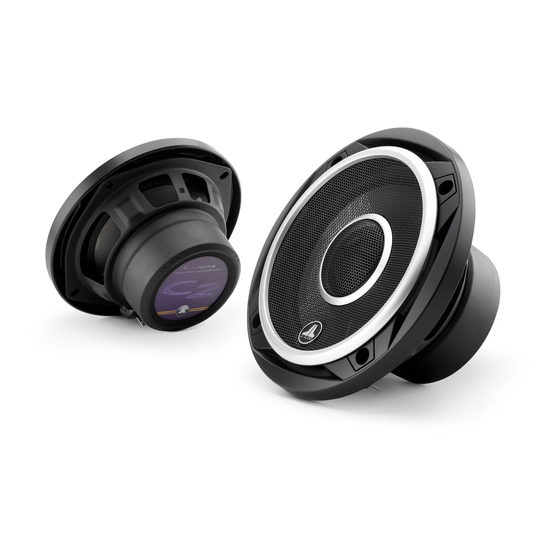

5.25-inch (130 mm) Coaxial Loudspeakers
Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1130 during business hours.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2-525x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JL Audio C2-525x

Summary of Contents for JL Audio C2-525x

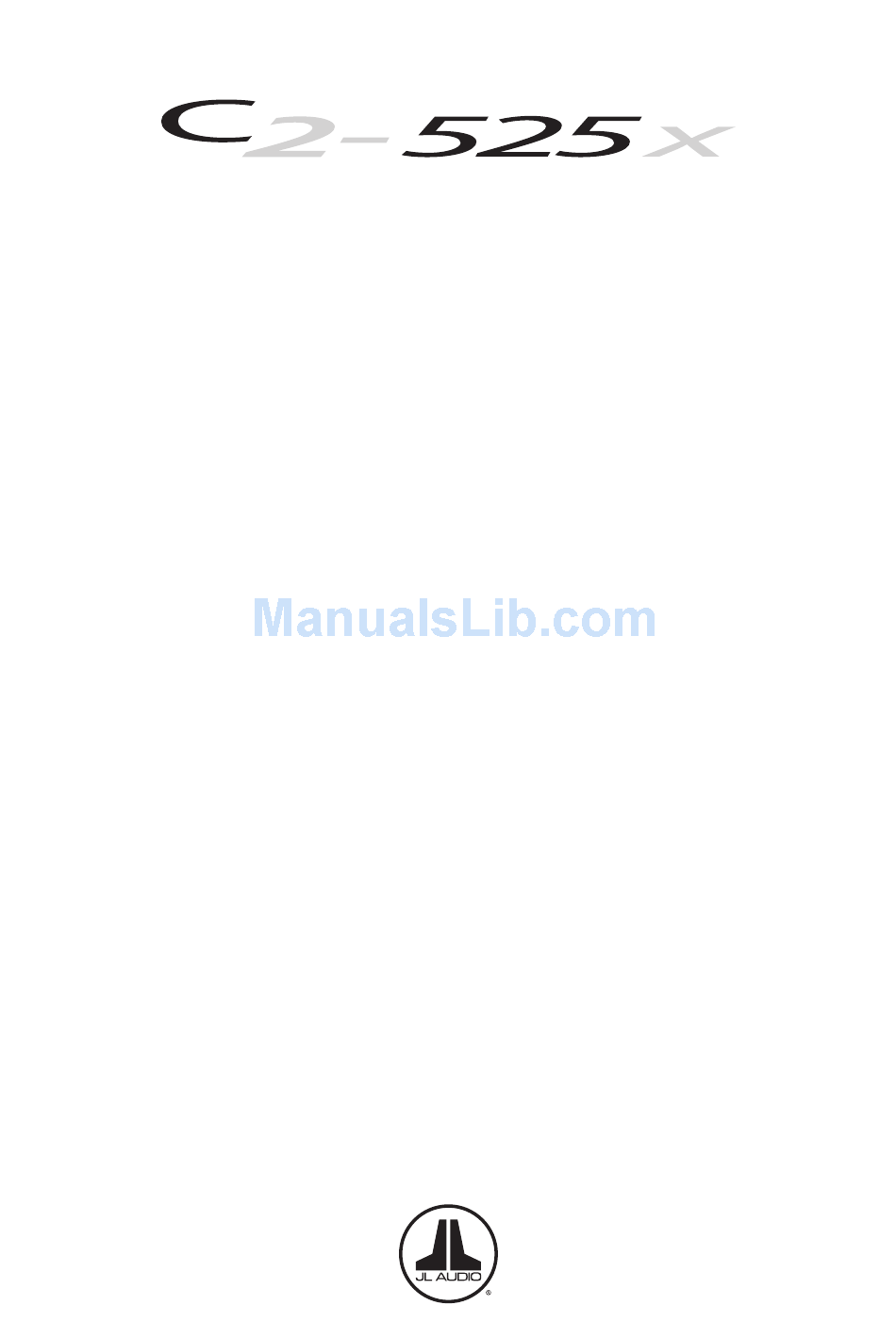

  • Page 1 5.25-inch (130 mm) Coaxial Loudspeakers Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System for your automotive sound system. These Evolution™ Speakers have been designed and manufactured to exacting standards in order to ensure years of musical enjoyment in your vehicle.
  • Page 2 Hole Diameter (F) mounting Depth (G) Due to ongoing product development, all specifications are subject to change without notice. 2 | JL Audio - C2-525x Owner’s Manual woofer Physical Dimensions 5.20 in. / 132.0 mm 6.01 in. / 152.8 mm 2.76 in.
  • Page 3 Nominal Impedance: 4 ohm Frequency Response: 63 Hz - 22 KHz ± 3 dB Included Components and Parts: • Two C2-525x 5.25-inch (130mm) Coaxial loudspeakers • Two Grille Assemblies • Eight #8 x 1 1/4-inch (30mm) sheet metal screws • Eight Mounting Clips •...

  • Page 4: Speaker Installation

    Yournewspeakershavebeendesignedtoinstall, withoutmodifications,intomostvehiclesthataccept a525-inch(130mm)speaker.Mostfactory525-inch speakersusefourmountingscrewswhichwilllineup withthemountingholesonyourC2-525xspeakers. Itisabsolutelyvitalthatthespeakerframefitsinto themountingholecleanly.Thismustbechecked priortotighteningthescrews.Donotforcethe frameintoaholethatistoosmall.Donottightenthe speakerontoanunevensurface.Thiswilldamage yourspeakers.Thespeakershouldalsofitsothatair doesnotleakaroundthemountingflange.Airleaks willcauseaseveredegradationinsoundquality. Sealanyairleakswithanautomotive-gradesealant material. 4 | JL Audio - C2-525x Owner’s Manual InstallasshowninDiagramA(page5).Usethe suppliedmountingclipsunlessthefactoryholes alreadyfeaturethreadedinserts.Hand-tightenthe screwsevenlytoavoidbendingthespeakerframe! Custom location:Runspeakerwiretothe desiredmountinglocation.Ifyouarerunning wiresintoadoor,useexistingfactorywiringboots wheneverpossible.Ifyouaredrillingnewholes,file theiredgesandinstallrubbergrommetsintoeach hole.Then,coverthewireswithaprotectivePVC sleeveandrunthemthroughthedoorjamb.Make surethatthewireswillcleardoorhingesandother structuresinthedoor.Ifyouareunsureaboutany partofthisprocess,pleasecontactyourJLAUDIO dealerforinstallationhelp.
  • Page 5 Connectthespeakerwires,observingcorrect polarity,andinstallthespeakerandgrilleassemblies asshowninDiagramB(below).Hand-tightenthe screwsevenlytoavoidbendingthespeakerframe! TheincludedJLAudiologonamebadgesshould beaffixedtothecircularindentedareainthelower partofeachgrilleassembly.Ifthegrilleassemblyis notused,theJLAudiologobadgescanbeaffixed elsewhereascreativeadditionstoyourinstallation. Diagram a: Factory location woofer installation Diagram B: Custom location woofer installation WAR NI N G Hand-tighten the screws evenly in a criss-cross pattern to avoid bending the speaker frame or stripping the mounting clips.
  • Page 6 6 | JL Audio - C2-525x Owner’s Manual...
