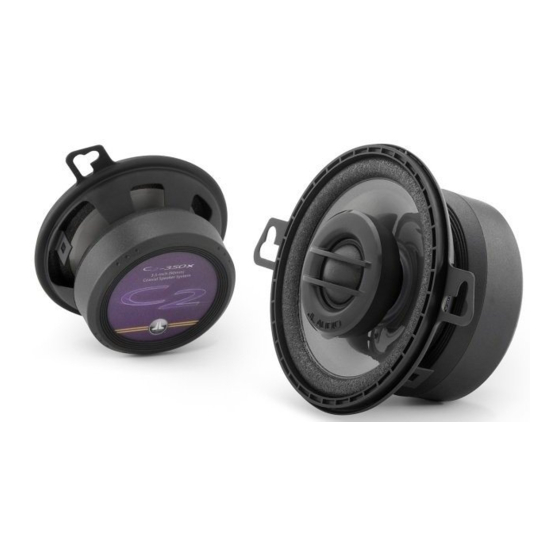

3.50-inch (90 mm) coaxial loudspeakers

Advertisement

owner's manual
3.50-inch (90 mm) Coaxial Loudspeakers
Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2-350x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JL Audio C2-350x

  • Page 1 3.50-inch (90 mm) Coaxial Loudspeakers Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System for your automotive sound system. These Evolution™ Speakers have been designed and manufactured to exacting standards in order to ensure years of musical enjoyment in your vehicle.
  • Page 2 Hole Diameter (D) mounting Depth (e) Due to ongoing product development, all specifications are subject to change without notice. 2 | JL Audio - C2-350x Owner’s Manual woofer Physical Dimensions 3.44 in. / 87.3 mm 2.36 in. / 60.0 mm w/o cover 0.54 in / 13.8 mm...
  • Page 3 Nominal Impedance: 4 ohm Frequency Response: 130 Hz - 22 KHz ± 3 dB Included Components and Parts: • Two C2-350x 3.5-inch (90mm) Coaxial loudspeakers • Four #8 x 1 inch (25mm) sheet metal screws • Four Mounting Clips • Two 5.2 mm female crimpable connectors •...
  • Page 4: Speaker Installation

    Thiswilldamageyourspeakers.Thespeaker shouldalsofitsothatairdoesnotleakaround themountingflange.Airleakswillcauseasevere degradationinsoundquality.Sealanyairleaks withanautomotive-gradesealantmaterial. InstallasshowninDiagramA(page5).Usethe suppliedmountingclipsunlessthefactoryholes alreadyfeaturethreadedinserts.Hand-tightenthe screwsevenlytoavoidbendingthespeakerframe! 4 | JL Audio - C2-350x Owner’s Manual Custom location:Runspeakerwiretothe desiredmountinglocation.Ifyouarerunning wiresintoadoor,useexistingfactorywiringboots wheneverpossible.Ifyouaredrillingnewholes,file theiredgesandinstallrubbergrommetsintoeach hole.Then,coverthewireswithaprotectivePVC sleeveandrunthemthroughthedoorjamb.Make surethatthewireswillcleardoorhingesandother structuresinthedoor.Ifyouareunsureaboutany partofthisprocess,pleasecontactyourJLAUDIO dealerforinstallationhelp. WAR NI NG Double check the clearance for both speakers before proceeding.
  • Page 5 Because3.5-inchspeakersarerarelyusedfor custommounting,grillesarenotsuppliedwiththe C2-350xspeakers.Shouldyouneedthem,youwill needtopurchaseaftermarketgrillesseparately. Diagram a: Factory & Custom location woofer installation WAR NI N G Hand-tighten the screws evenly in a criss-cross pattern to avoid bending the speaker frame or stripping the mounting clips.
  • Page 6 6 | JL Audio - C2-350x Owner’s Manual...
  • Page 7 noTes...
  • Page 8 For service information in the u.s.a. please call Products purchased outside the United States of America are covered only by that country’s distributor and not by JL Audio, Inc. Jl audio Customer service: (954) 443-1100 9:00 AM – 5:30 PM (Eastern Time Zone) Jl audio, inc 10369 North Commerce Pkwy.
