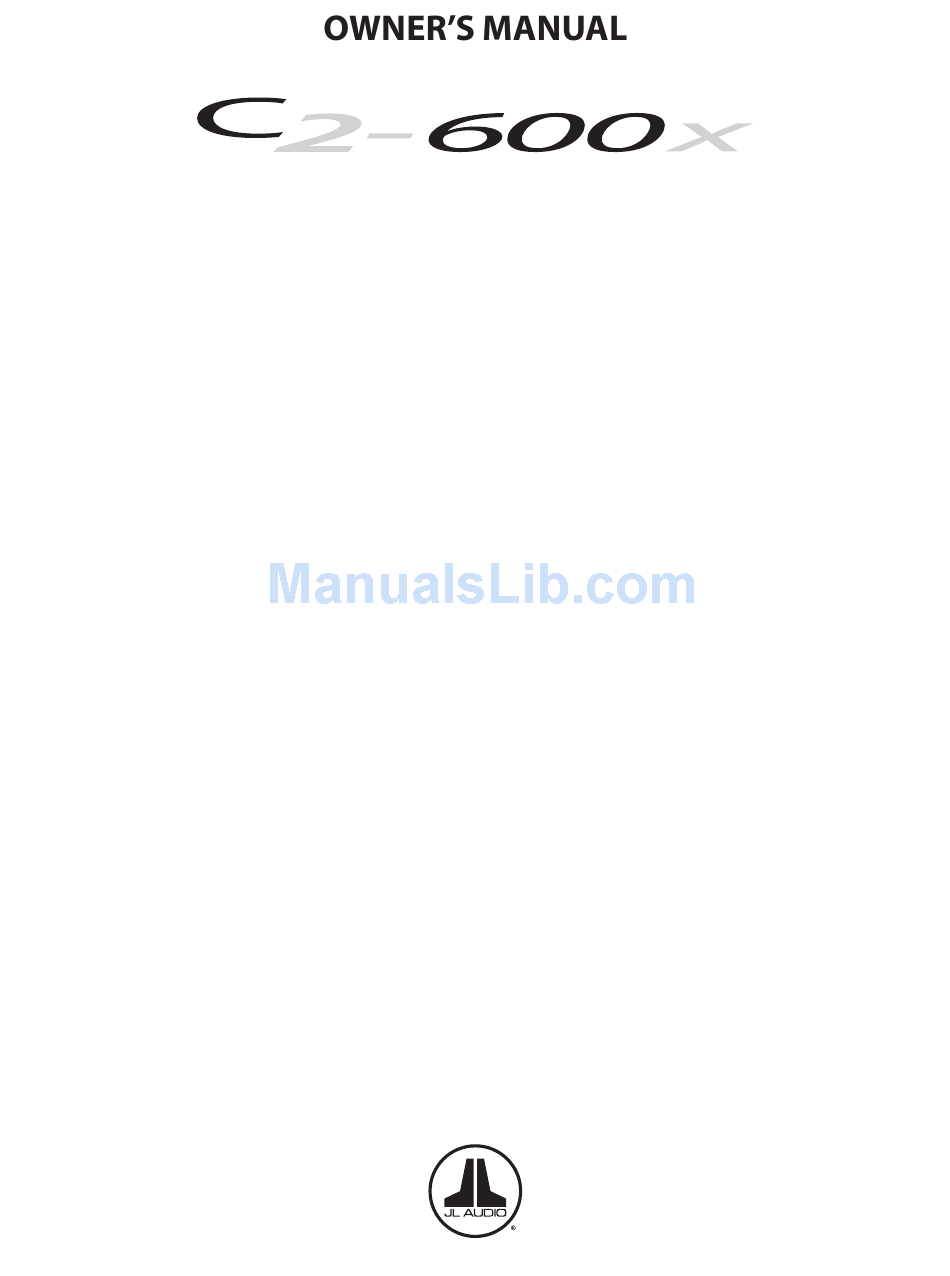

OWNER'S MANUAL

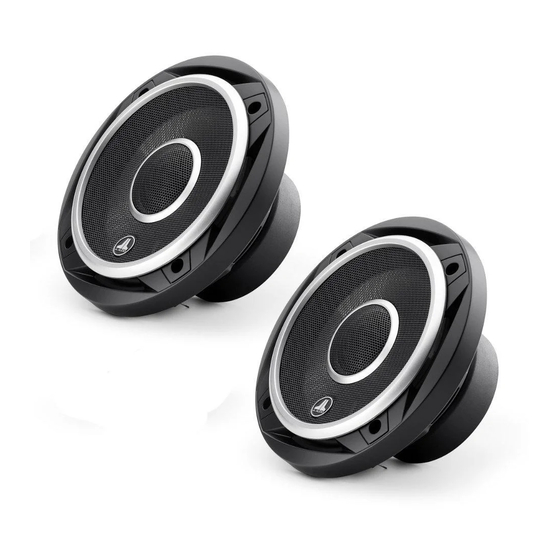

6.0-inch (150 mm) Coaxial Loudspeakers
Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System
for your automotive sound system.
These Evolution™ Speakers have been designed and manufactured to
exacting standards in order to ensure years of musical enjoyment in your
vehicle. For maximum performance, we highly recommend that you have
your new speakers installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the speakers yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1150 during business hours.
Advertisement
Related Manuals for JL Audio C2-600x
Summary of Contents for JL Audio C2-600x
- Page 1 6.0-inch (150 mm) Coaxial Loudspeakers Thank you for choosing a JL Audio Evolution™ C2 Coaxial Speaker System for your automotive sound system. These Evolution™ Speakers have been designed and manufactured to exacting standards in order to ensure years of musical enjoyment in your vehicle.
- Page 2 0.55 in. / 13.9 mm 0.91 in. / 23 mm 5.00 in. / 127.0 mm 2.38 in. / 60.3 mm w/o cover Due to ongoing product development, all specifications are subject to change without notice. 2 | JL Audio - C2-600x Owner’s Manual...
-
Page 3: Getting Started
Woofer: Injection-molded, Mica-filled, Polypropylene Cone, Butyl Rubber Surround, 1 in. Voice Coil on Kapton® Former, Flat, Symmetrical Roll Spider, Ferrite Magnet Tweeter: 0.75 in. (19 mm) Silk Dome, Ferrofluid Cooling / Damping, Neodymium Magnet Crossover: Natural Roll-Off Low-Pass, 1st Order High-Pass Filter with Electrolytic Capacitor Continuous Power Handling: 60 Watts Recommended Amp Power: 15-100 Watts per channel (RMS) -
Page 4: Speaker Installation
Many cars are different from one side to the other! WAR NING Double check the clearance for both speakers before proceeding. Many cars are different from one side to the other! 4 | JL Audio - C2-600x Owner’s Manual... - Page 5 WAR NI N G Hand-tighten the screws evenly in a criss-cross pattern to avoid bending the speaker frame or stripping the mounting clips.
- Page 6 6 | JL Audio - C2-600x Owner’s Manual...
- Page 8 PM (Eastern Time Zone) JL Audio, Inc 10369 North Commerce Pkwy. 33025 Miramar, FL International Warranties: Products purchased outside the United States of America are covered only by that country's distributor and not by JL Audio, Inc. Printed in China C2-600x-06112008 479449...
