Chapter 3 Quick Install Guide

3.1 TCP/IP Settings

Before you can access and configure router, you have to setup your net-
work adapter IP address. According to the following steps to obtain IP ad-
dress automatically from router DHCP Server, The following instruction set
up the computer running windows operation system.
Note: The router default IP address is 192.168.1.1
1. Click Start button and choose Settings, then click Control Panel.
2. Double click Network icon and select Configuration tab in the Network
window.
3. Choose the connection you want to use and click it with right mouse but-
ton and choose "Properties".
4. Double click TCP/IP Protocol.
5. Make sure that option "Obtain IP address automatically" is chosen.
8. Click OK to complete the install procedure.

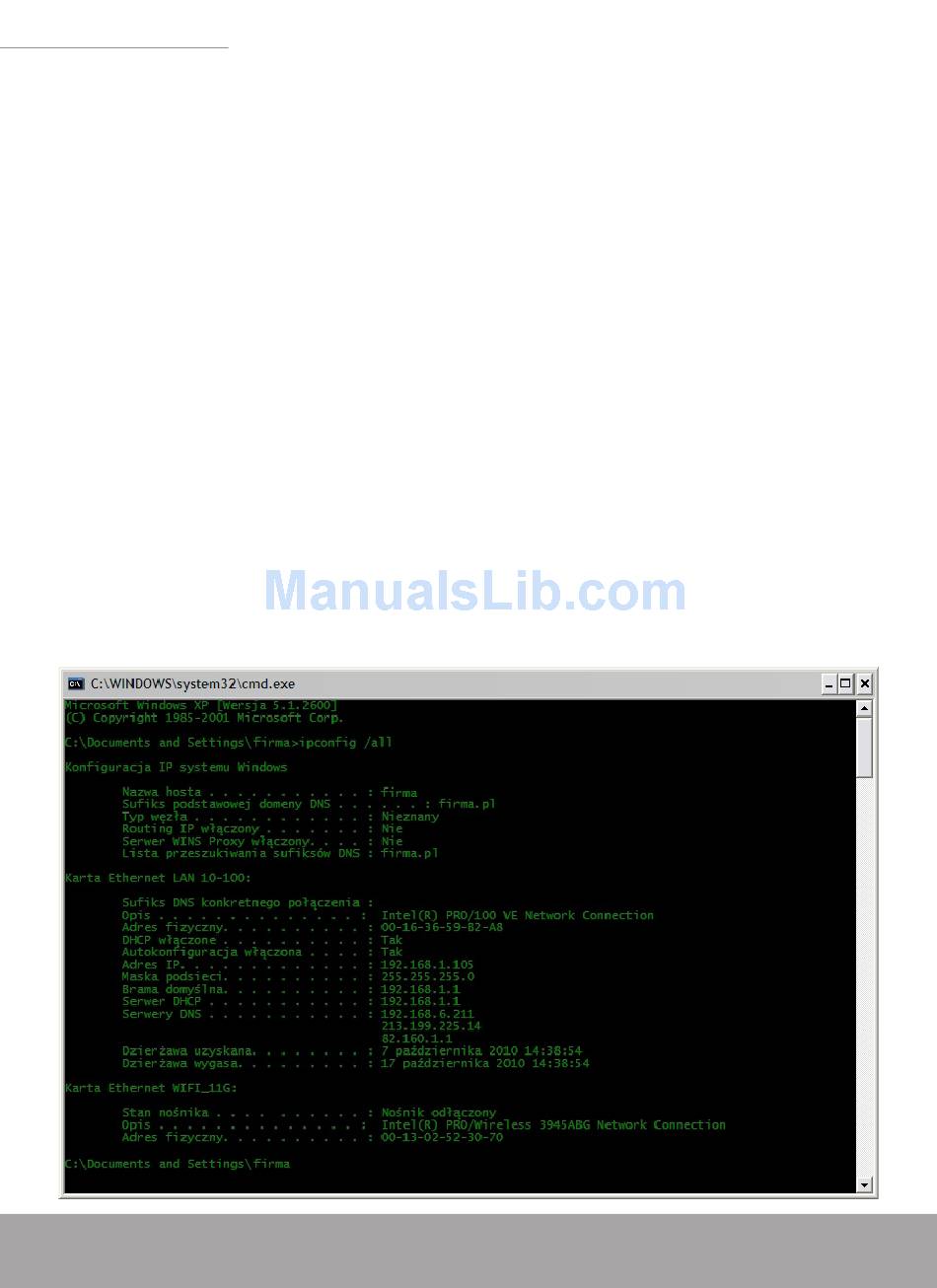

After all is successful, you can check the TCP/IP information via the follow-
ing command. Start -> run. Type cmd and in the window like the one below
enter command: ipconfig /all.
