Wireless router

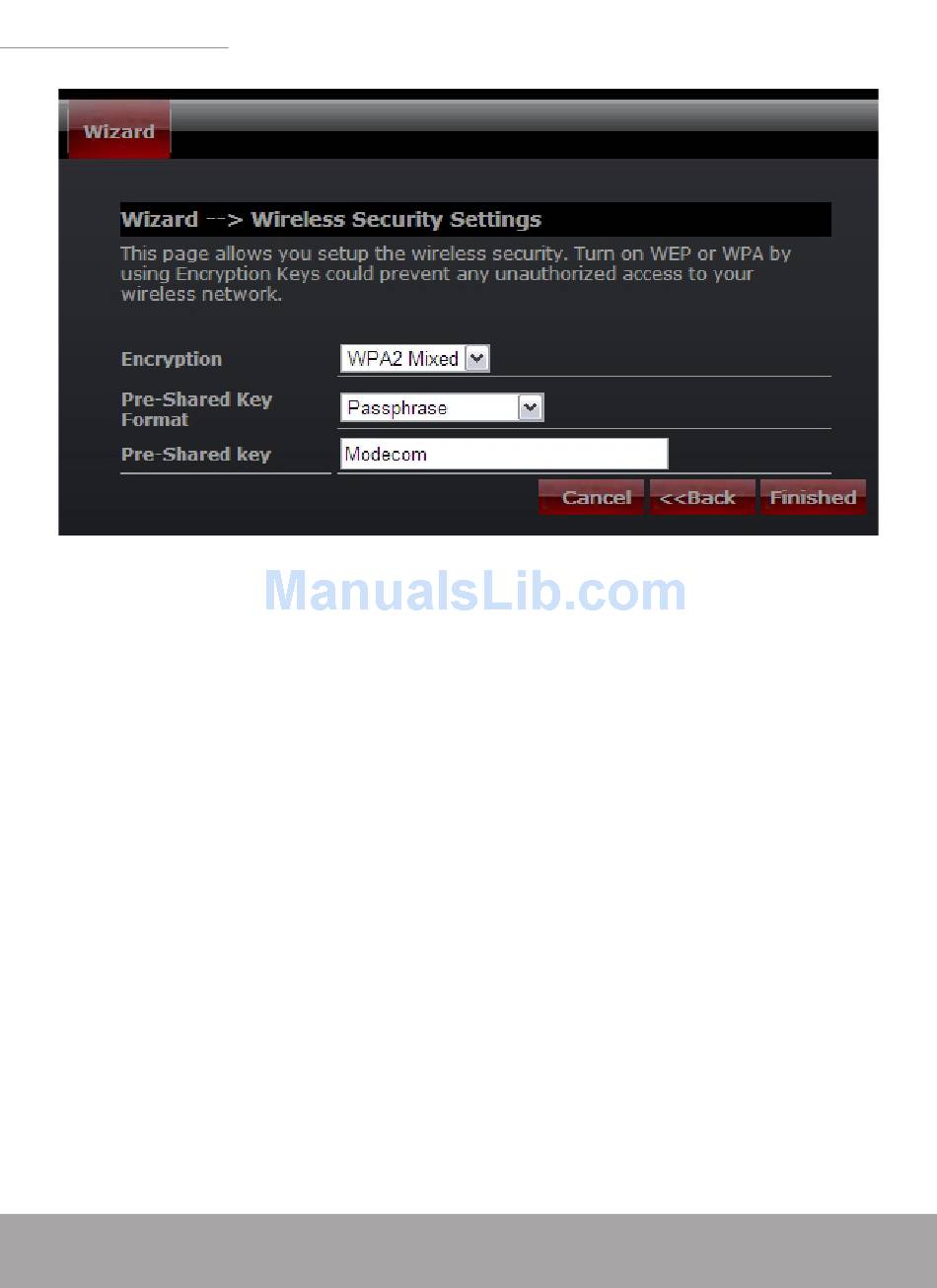

Pre-Shared Key Format: Specify the format of the key, passphrase or hex.
Pre-Shared Key: Enter the key, accordingly to chosen format.
The keys are used to encryption data transmitted in the wireless network.
Fill in the text box by following rules below:
• 64-bit: Input any 5 ASCII characters or 10 digit Hex values (in the "A-F",
"a-f", and
"0-9" range) as the encryption keys. It is advised to use digits and both low-
ercase and uppercase characters - for example: "012345aEfG"
• 128-bit: Input any 13 ASCII characters or 26 digit Hex values (in the
"A-F", "a-f", and "0-9" range) as the encryption keys. For example:
01234567890123456789aBcDEf"

Chapter 4 Advanced Setup

4.1 Wireless Advanced setup

4.1.1 WPS
WPS is designed to ease set up of security Wi-Fi networks and subse-
quently network management. This router supports WPS features for AP
mode, AP+WDS mode, Infrastructure-Client mode, and Universal Repeater
mode.
