LAN(1,2,3,4): 10/100Mbps RJ45 Auto-sensing. These four LAN ports are
where you will connect other network devices, such as PCs/Laptops, print
servers, remote hard drives, and anything else you want to put on your net-
work. If you connect this product with the Network adapter, Hub (or Switch)
correctly, the Router's corresponding LED and the Adapter's, Hub's (or the
Switch) will illuminate.
WAN: 10/100Mbps RJ45 port. The WAN port is where you will connect
Cable/DSL Modem or other LAN.
RESET(WPS): The Reset Button has three functions, WPS, reboot and
Factory Default. When press it less than 2 second, it is WPS function and
the SYS LED will flash two minute (as long as WPS session is active); 2 to
5 seconds, the router will reboot; and more than 5 seconds, the router will
restore to factory default settings.
Power inlet: 9V DC, 1A Power supply.

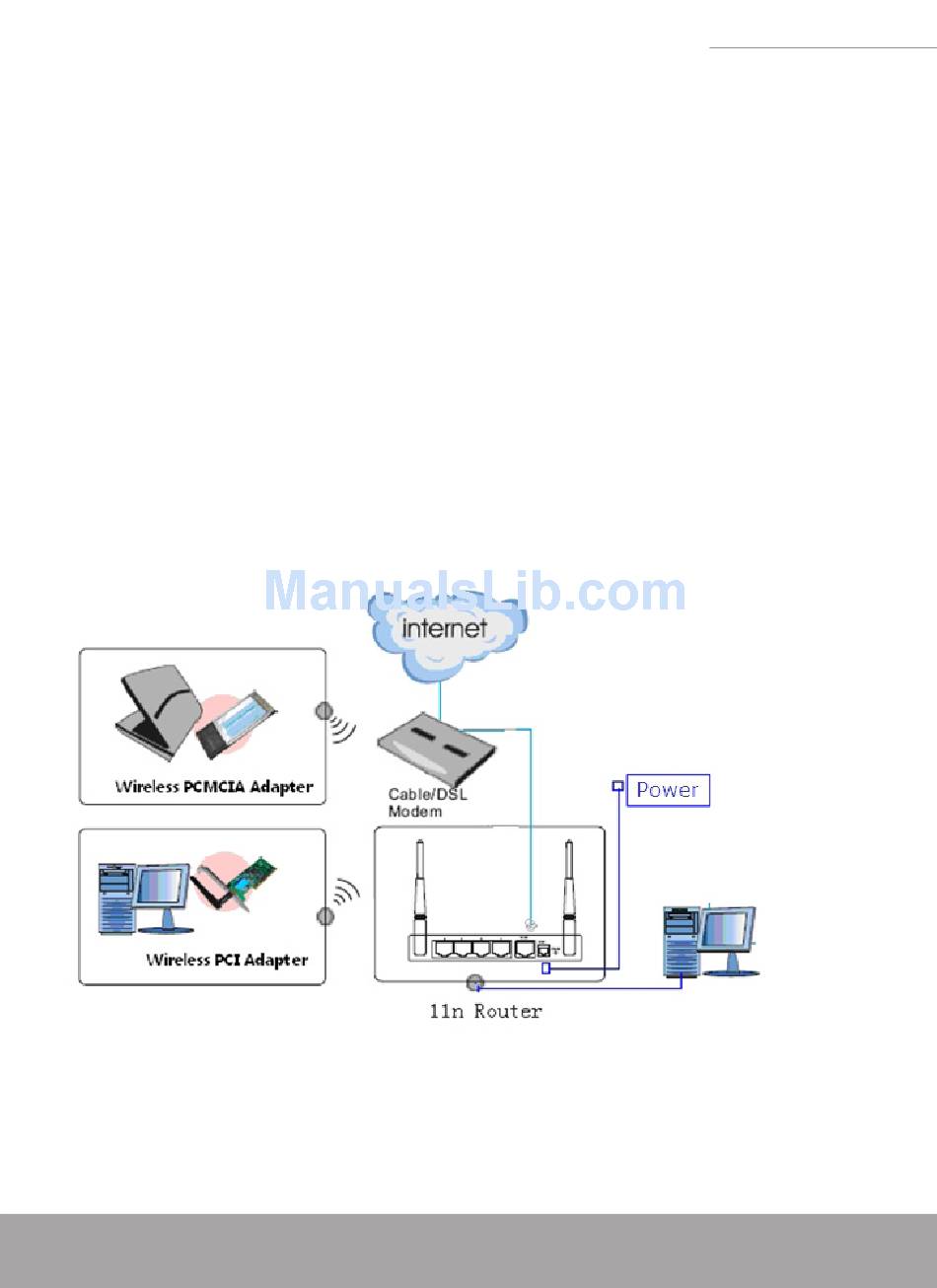

2.3 Typical install

1. Make sure all devices, including your PCs, modem, and Router, are
turned on.
2. Using an Ethernet network cable, connect the LAN device or Ethernet
network port of the cable or DSL modem to the Router's WAN port.
7
