Summary of Contents for Audio Authority Series 1500

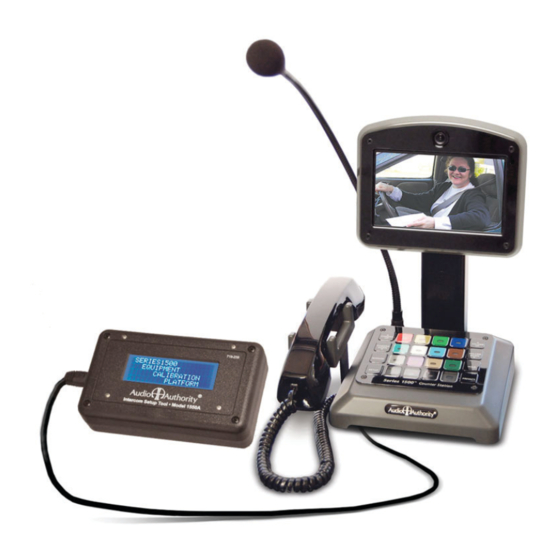

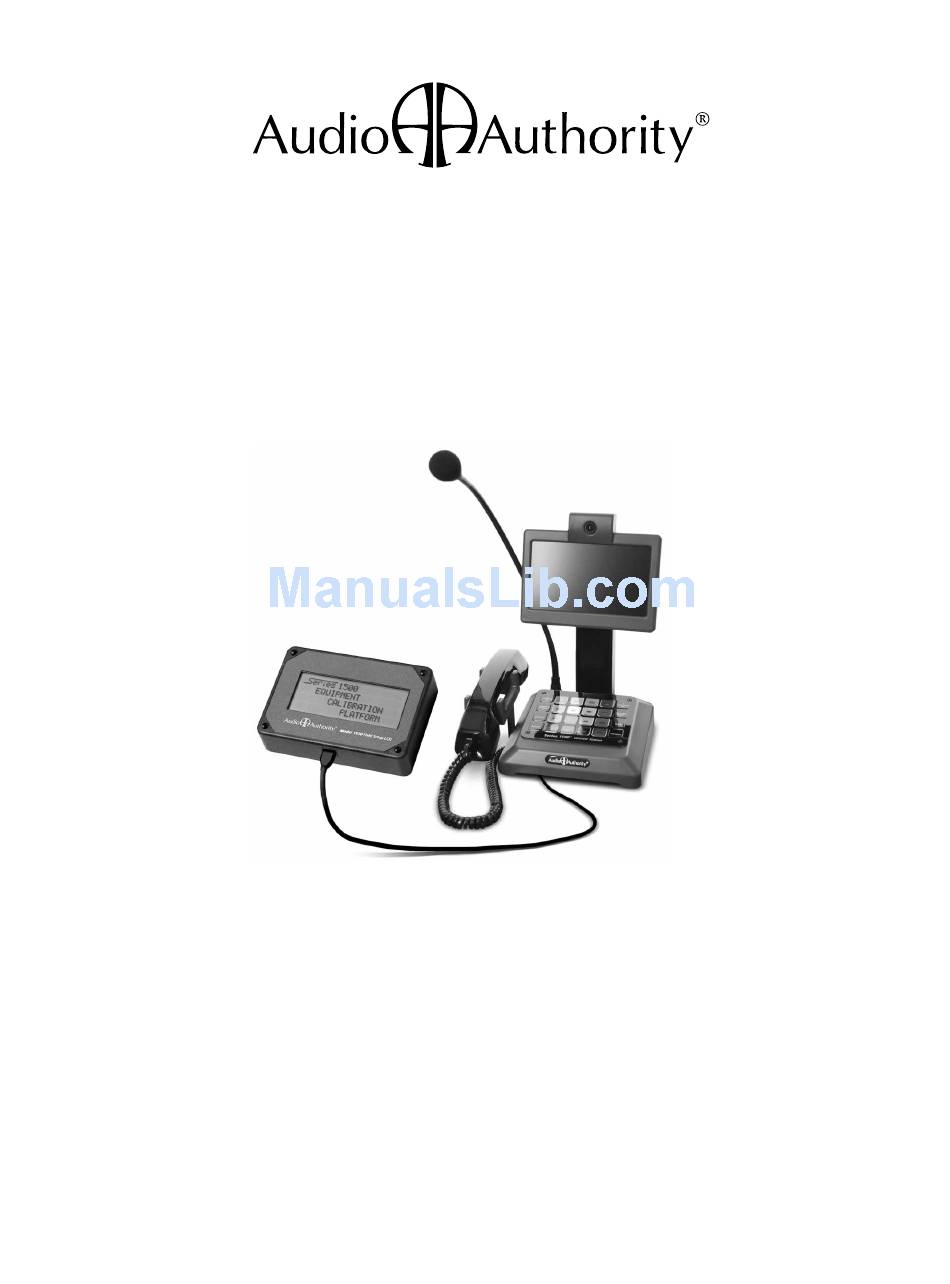

- Page 1 Series 1500 ™ Intercom Systems Installer’s Reference Guide For Firmware Version 4.0...
-
Page 2: Table Of Contents
LIABILITY STATEMENT Every effort has been made to ensure that our products are free of defects. Audio Authority cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 3: Introducing Series 1500™ Intercom Systems
4-lane plug-in card 1516 Gooseneck microphone 631-026 System plug-in card 1517SD External microphone kit 631-029 Lane Station 1520 External 3” speaker 631-030 *See page 11 for hub configurations ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 4: 2X4 Audio Installation
TRAFFIC SENSING REMOTE CONTROL RELAY POWER AUDIO ARMORED HANDSET COUNTER STATION MODEL 1520 MODEL 1500A HEADSET AUDIO HUB POWER MODEL 1509SD AUDIO COUNTER STATION MODEL 1500A HEADSET POWER ® Audio Authority Series 1500 Installer’s Reference Guide • Firmware Version 4.0... -
Page 5: 2X4 Audio/Video Installation
1520 plus a camera, video display and call button mounted in one enclosure * PC video output signals may need to be modified for viewing on intercom video displays See page 9 for details ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 6: Installing Model 1500Ah
1550 field setup tool, then, if more adjustment is desired, use the two knobs on the bottom of the 1500AH as shown 1500AH COUNTER STATION (UNDERSIDE) CRADLE ® Audio Authority Series 1500 Installer’s Reference Guide • Firmware Version 4.0... -
Page 7: Installing A 1509Sd Hub
FOR INSTRUC- 1 AMP POWER SUPPLY Hubs are shown For more TIONS (MODEL 571-013) configurations, system card POWER CONNECTION functions, and other connections, see page 12 and 13 ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 8: Installing Model 1520 Lane Stations
If AC power is not available on the customer end, a power supply may be located indoors and its output leads extended using a suitable gauge of wire as shown below To power multiple lane units from a single power supply source, contact Audio Authority Technical Support at 800-322-8346... -
Page 9: Using Third Party Traffic Sensors
Using Traffic Sensors The 1520 Lane Station provides a connection for Audio Authority’s Model 1547 traffic sensor on the bottom edge of the case (see illustration on page 8) When a vehicle triggers the 1547, the Counter Station generates a call tone for... -
Page 10: Operation
• Handset: Touch the blinking lane key and pick up the handset • Wireless headset: If PRIVACY is already on, activate the headset and select the blinking lane key ® Audio Authority Series 1500 Installer’s Reference Guide • Firmware Version 4.0... -
Page 11: Operator Guide
• Touch VOLUME UP and DOWN to set ringer volume 2048 Mercer Road, Lexington, KY 40511 • 800-322-8346 • 859-233-4599 752-487 Fax: 859-233-4510 • www audioauthority com • support@audioauthority com 9/10 ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 12: Audio Or Av Hub Model 1510
• System settings can be stored on a standard SD card for security or replication purposes Firmware upgrades can be downloaded from the Audio Authority website and performed using the SD card when necessary These operations require a Model 1550 Field Setup Tool and a Counter Station •... -
Page 13: Hub Configurations And Capacity
13 14 15 16 FOURTH 1516 FOR 16 LANE CONFIGURATIONS 1517 WIDEVIEW CAMERA PROGRAM INPUT SYSTEM POWER MEMORY DIAGNOSTICS CARD INPUT OUTPUT VIDEO AUDIO LEVEL 1517SD (REQUIRED FOR ALL CONFIGURATIONS) ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 14: Common Issues
Repeating Pops in Audio surround; for optimum results, use Audio Authority microphones • Check Cat 5 cables - consistently use EIA 568B standard cable termination (see page 9) ® Audio Authority Series 1500 Installer’s Reference Guide • Firmware Version 4.0... -
Page 15: Using The 1550 Field Setup Tool
Counter Station Connect the 1550 Field Setup Display to the RJ45 jack on the underside of any live Counter Station (The RECESSED jack is at an angle ) Upon connection, the 1550 will display “SERIES 1500 JACK CAT 5E/6 (ANGLED) EQUIPMENT CALIBRATION PLATFORM”... -
Page 16: Definitions
SINGLE LANE Allows installer to configure lane audio settings without using live audio from the lane Useful when lanes are in use or audio is not required for adjustments ® Audio Authority Series 1500 Installer’s Reference Guide • Firmware Version 4.0... -
Page 17: 1550 Configuration Example
Save Settings and Exit Setup Hold SETUP for one second to jump to EXIT menu at any time Select 2: EXIT AND SAVE Touch SETUP, then press SETUP again to confirm ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599... -
Page 18: Sd Card Notes
SD card Note: Series 1500 equipment with firmware prior to version 1 5 may not be upgraded to version 4 0 To upgrade to... - Page 19 ® Audio Authority Series 1500 Installer’s Reference Guide • 800-322-8346 • 859-233-4599...
- Page 20 2048 Mercer Rd., Lexington, KY 40511-1071 USA Phone: 859-233-4599 • 800-322-8346 Web: www.audioauthority.com 752-570 9/10...
