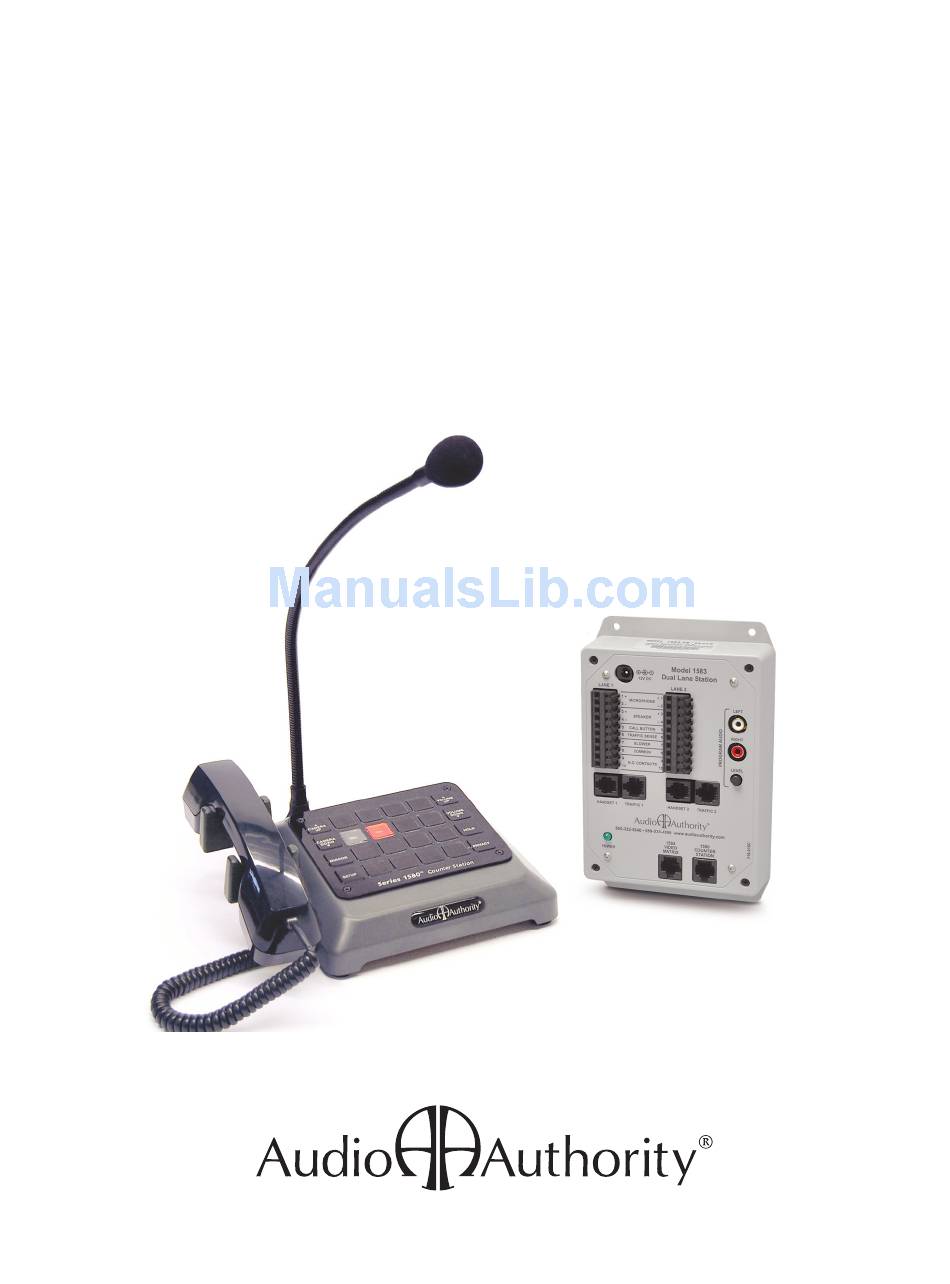

- Page 1 Installation Guide Series 1580 Intercom Systems The Complete 1-on-2 Solution...
- Page 2 2048 Mercer Road, Lexington, Kentucky 40511-1071 USA Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com • support@audioauthority.com...
-
Page 3: Table Of Contents
LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. Audio Authority® cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 4: Introducing Series 1580 Intercom Systems
Installation with 1580S or 1580HS Kits The 1580S Kit consists of one Model 1580, one Model 1583, and a 571-013 power supply. To complete the system, the necessary lane microphones, speakers, call button switches, and shielded cable for one or two customer positions or drive-up lanes must be purchased separately. -
Page 5: Audio Installation
If equipped with a handset, plug it into the jack on the bottom of the 1580, push the coil cord into the notch on the bottom edge of the housing, and set the handset on its... -
Page 6: Lane Cable Information
Lane Cable Use shielded, paired cable with three to six twisted pairs of conductors (depending on configuration) to connect the Model 1583 Dual Lane Station to the lane microphone, speaker, call button, etc. Use one pair each for microphone and speaker, and the remaining conductors for other functions sharing a common ground (Figures 4 and 5). -
Page 7: Advertising Messages
VIDEO NO LONGER SUPPORTED PROGRAM CAT 5 CABLE AUDIO CONNECTS TO 1580 COUNTER CONNECTIONS STATION - MAY BE UP TO 50 FT. AND LEVEL CONTROL Figure 5. Shielded, paired cable (four-pair in this example) for connecting Lane Station terminals to audio and other lane devices. -
Page 8: Traffic Sensors
Using Model 1547 Traffic Sensors The 1583 Dual Lane Station provides connections for Audio Authority’s Model 1547 traffic sensors. When a vehicle triggers the 1547, the Counter Station generates a call tone for the corresponding lane to alert the operator. To extend a... -
Page 9: Basic Calibration And Testing
– even pre-made cables connections, indicated as follows: P In case of unexpected performance, restore system P 1580/1580H Counter Station: After boot-up, all lights are defaults to rule out incorrect system parameters dark until a lane or Privacy mode is selected P 1583 power lights flashing rapidly –... -
Page 10: Operation
Operating Remote Devices The 1580 can be wired to operate a latch or door in a remote location via the keypad. The system can be set up to be operated in two different ways; consult your technical support provider for details. -
Page 11: Operator Guide
OPERATOR GUIDE Audio Authority Series 1580 Counter Station Green Lane Key Lights Flashing (Rapidly) = Customer calling On = Customer in 2-way contact Blinking (Slowly) = Customer placed on HOLD Operation Tips • Speak naturally into the microphone at a distance of about two inches •... -
Page 12: Using The 1550A Setup Tool
Using the 1550A Installer Setup Tool Figure 10. 1550A Setup Tool The Model 1550A is a display that shows the menus and settings for Series 1500 /1580 Intercom Systems. (Touching SETUP without Connect the 1550A Setup the 1550A activates basic SETUP MODE.) -
Page 13: 1550A Configuration Example
Advanced Configuration Example To enter the configuration menu, connect a 1550A Setup Tool to the underside of the 1580 Counter Station, then touch and hold the SETUP key for one second. Adjust Audio Levels Select 2:LANE PARAMETERS 2. Select 2:AUTO-SELECT 1 LANE 3 Select Lane 1 or 2 3. -
Page 14: Definitions
Adjustment for level of background noise that is rejected by Counter Station microphone. 0 = no rejection. FIRMWARE UPGRADE This menu is used to update the firmware of system components. Call Audio Authority Technical Support for details. HALF DUPLEX ONLY Enables ‘push-to-talk’... -
Page 15: Appendix
5 WHITE / BLUE 2 ORANGE Twisted Pair) cable that can be used 6 GREEN 3 WHITE / GREEN 7 WHITE / BROWN to connect Series 1580 components 8 BROWN 4 BLUE Cat 5e/6 except for locations where shielded 5 WHITE / BLUE 6 GREEN twisted-pair cable is required. - Page 16 2048 Mercer Road, Lexington, Kentucky 40511-1071 USA Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com • support@audioauthority.com 752-593 20140807...
