Audio Authority 1500 Series User Manual
Intercom setup tool
Hide thumbs
Also See for 1500 Series:
- Installer's reference manual (22 pages) ,
- Installation manual (20 pages) ,
- Service bulletin (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Audio Authority 1500 Series
Summary of Contents for Audio Authority 1500 Series

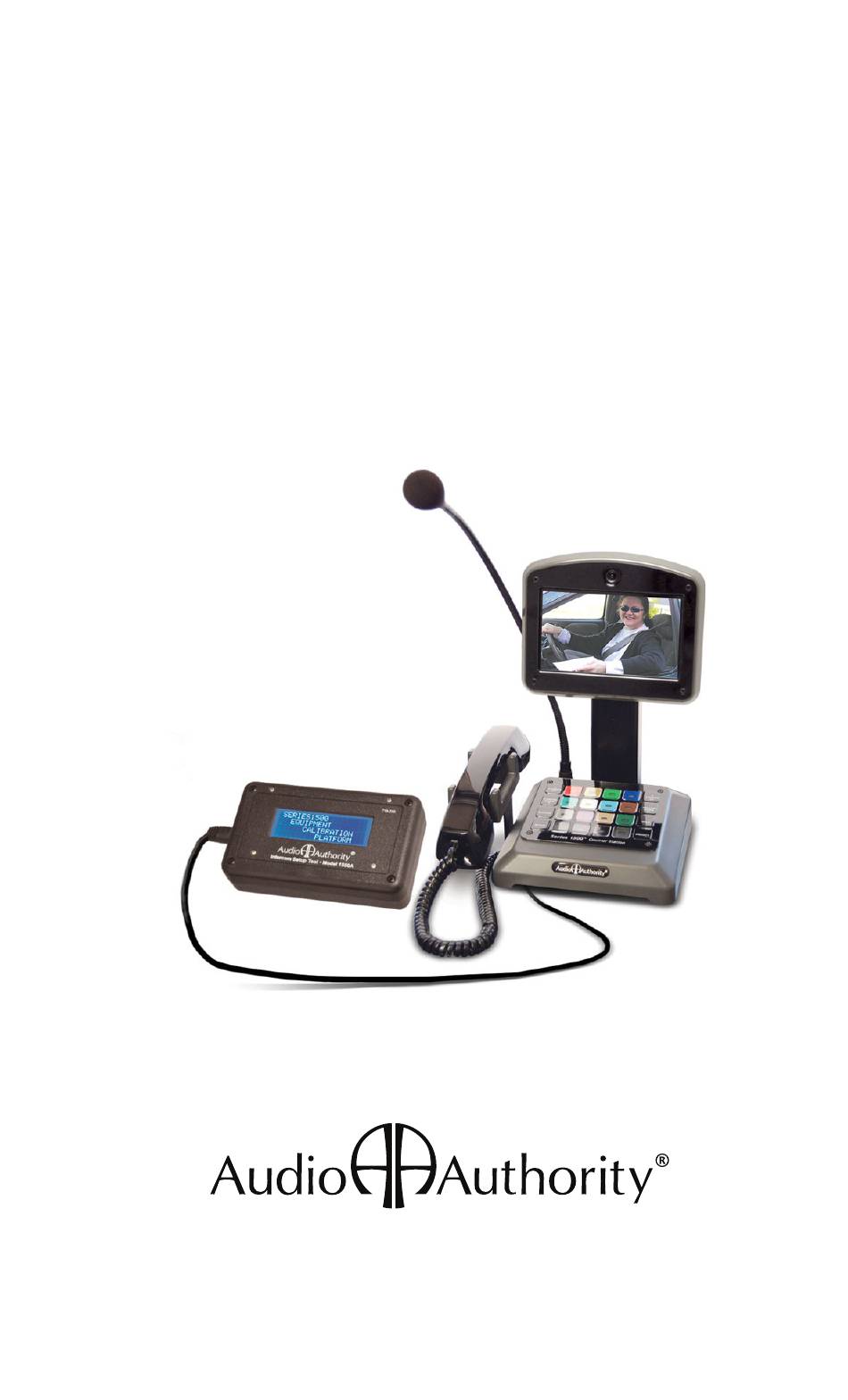

- Page 1 User Manual Model 1550A Intercom Setup Tool Series 1500 Intercom Systems Firmware Version 5.01...
- Page 2 1550A CALIBRATION AND SETUP The Model 1550A is a programming tool that shows the menus and settings for Series 1500 and 1580 Intercom Systems. The entire system can be calibrated from one counter station (except for Model 1533*). Connect the CAT 5/6 cable to the RJ45 jack on the underside of any live counter station (the jack is at an angle).
- Page 3 • Clean the unit only with a dry or slightly dampened soft cloth. LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. Audio Authority® cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use.
- Page 4 Series 1500 Menu Map with Default Values Firmware Version 5.01 July 31, 2023 The following table shows the menu structure and factory default values, where applicable. Root Menu First Menu Subset Second Menu Subset 1: System Parameters 1: Blower Motor Delay 2: Power Save Delay ‡...
- Page 5 Note: this Firmware version applies to current and previous 1500 Series counter stations, hubs and lane stations. DO NOT update 1580 series with this version! The menu structure has been updated; as a result, some of the shortcut key strokes have changed in order to harmonize setup procedures across all models.
- Page 6 Menu Selections Definitions AUTO-SELECT 1 LANE Allows installer to configure lane audio settings using live audio from the lane. Useful for adjusting inbound and outbound audio levels. ALLOW HANDSFREE Allow communication using speaker and gooseneck microphone. ALLOW VIDEO SCROLL Inactive counter stations view all available cameras in sequence; when video scroll is disabled, inactive counter stations see only the wideview camera (if installed).
- Page 7 OPEN LOOP GAIN Adjustment for adapting to different acoustic environments. Lower this setting for lane station acoustical environments with too much microphone and speaker coupling. Increase this setting to hear more of the customer while operator is talking. PGM AUDIO ABATE ON = Program Audio heard ONLY when lane is on hold.
- Page 8 * Systems without a hub may be updated by temporarily inserting a hub into the system. If you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. 2048 Mercer Road, Lexington, Kentucky 40511-1071 USA Phone: 859-233-4599 •...
