- Page 1 User Manual Model 1550A Intercom Setup Tool Series 1500 Intercom Systems...

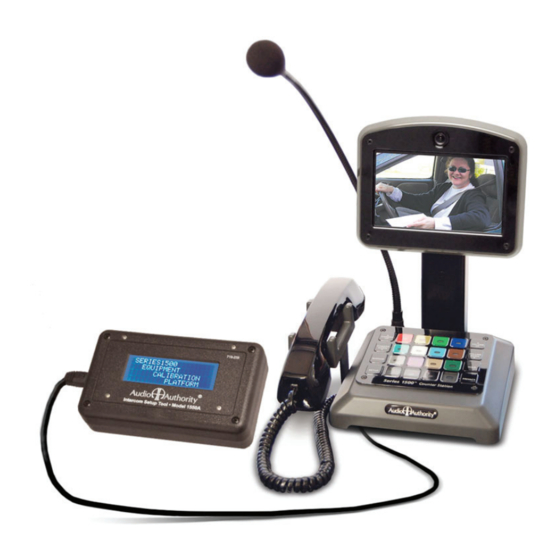

- Page 2 1550A CALIBRATION AND SETUP The Model 1550A is a programming tool that shows the menus and settings for Series 1500 and 1580 Intercom Systems. The entire system can be calibrated from one Counter Station (except for Model 1533*). Connect the CAT 5E/6 cable to the RJ45 jack on the underside of any live Counter Station (the jack is at an angle).
- Page 3 • Clean the unit only with a dry or slightly dampened soft cloth. LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. Audio Authority® cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be...
- Page 4 1500 SETUP MENU MAP WITH DEFAULT VALUES Firmware Version 4.07 May 31, 2013 See 1533 or 1580 manuals for system menu maps. Root Menu First Menu Subset Second Menu Subset 1: System Parameters 1: Blower Motor Delay 2: Power Save Delay** 3: Supervisor Teller* 4: Lane Mirror Disable** 5: Traffic Sensor Tone 6: Background Threshold 7: Allow Video Scroll...
- Page 5 Financial Default Value Pharmacy Default Value 3.0 (seconds) 3.0 (seconds) 90 (seconds) 90 (seconds) None None Use Lane Ringtone Use Lane Ringtone None None None Selection Activates Selection Activates *Not Available with 1-on-1 configurations **Not available with 1509SD mini hub configurations Note: See the 1533 or 1580 manual for definitions and setup instructions.
- Page 6 MENU SELECTIONS DEFINITIONS AUTO-SELECT 1 LANE Allows installer to configure lane audio settings using live audio from the lane. Useful for adjusting inbound and outbound audio levels. ALLOW HANDSFREE Allow communication using speaker and gooseneck microphone. ALLOW VIDEO SCROLL Inactive Counter Stations view all available cameras in sequence; when video scroll is disabled, inactive Counter Stations see only the wideview camera (if installed).
- Page 7 OPEN LOOP GAIN Adjustment for adapting to different acoustic environments. Lower this setting for Lane Station acoustical environments with too much audio feedback. Increase this setting to hear more of the customer while operator is talking. PGM AUDIO ABATE ON = Program Audio heard ONLY when lane is on hold.
- Page 8 1500A, 1500AH, and 1533. Once the upgrade is complete, all indicators on the Hub will return to normal operation. * 1-on-1 systems may be upgraded by temporarily connecting a Hub. If you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. 2048 Mercer Road, Lexington, Kentucky 40511-1071 USA Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346...
