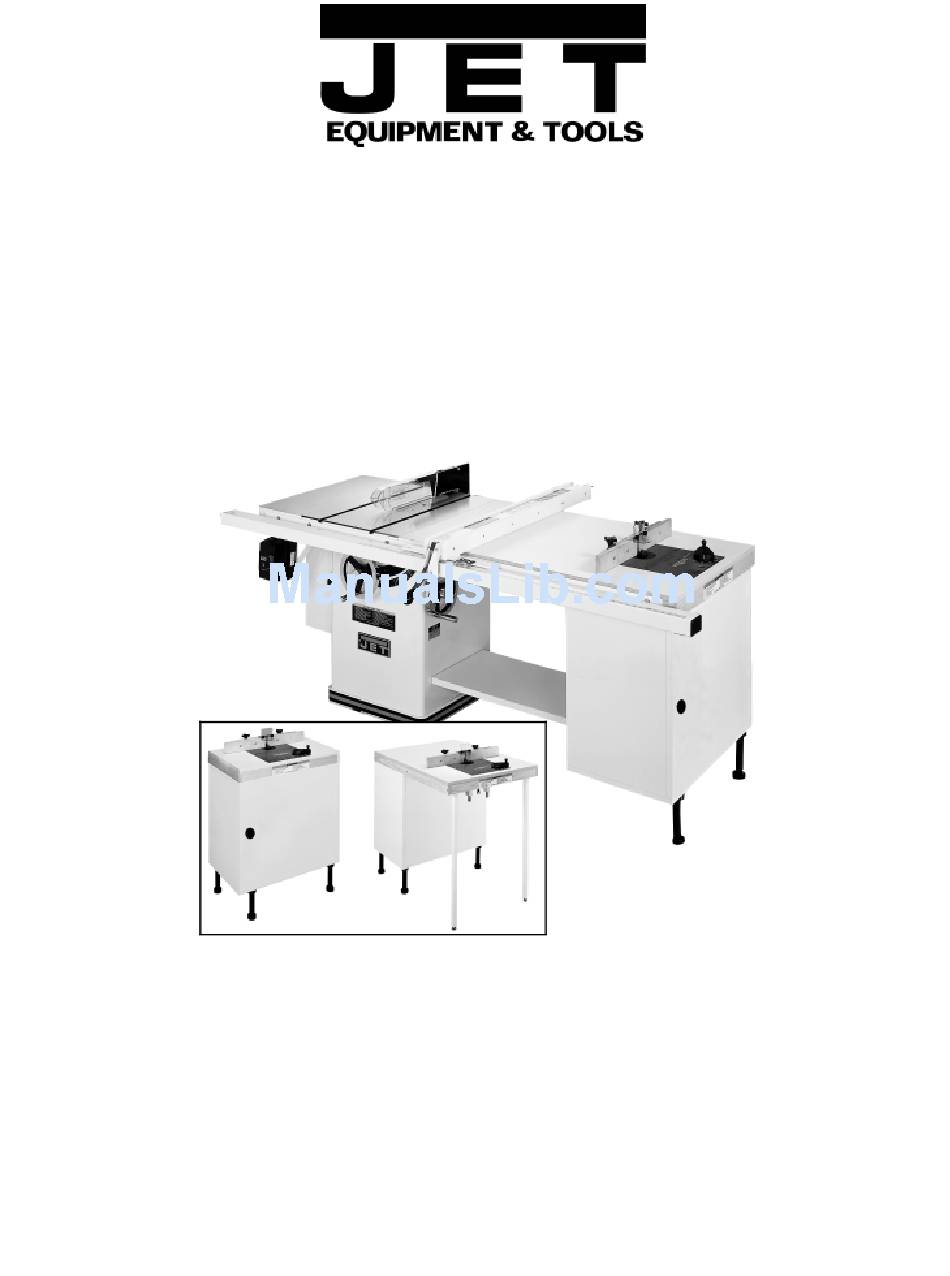

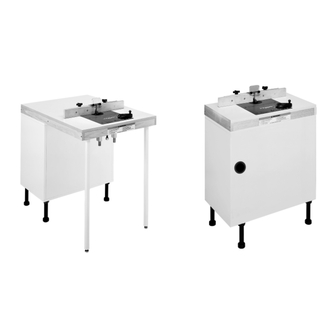

- Page 1 OWNER'S MANUAL Tablesaw / Router Cabinet JET EQUIPMENT & TOOLS, INC. A WMH Company www.jettools.com P.O. BOX 1349 Auburn, WA 98071-1349 e-mail jet@jettools.com Phone:253-351-6000 Fax: 1-800-274-6840 M-708308 05/01...
- Page 2 This manual has been prepared for the owner of a JET XACTASAW™ Cabinet. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions in your tablesaw and/or Rout-R- Lift™...
- Page 3 Unpacking Open shipping container and check that all parts are intact. Report any damage immediately to your distributor. Read the instruction manual thoroughly assembly instructions. Box contents: Back Panel Side Panels Bottom Panel Top Panel Angle Brackets Small Shelves Large Shelf (used with closed stand saws) Leg assemblies Hardware bag Door Handle...
- Page 4 Use of the holes on the other end is determined by the following: If mounting the cabinet to a saw and upon a mobile base, use the two inner holes. If using the cabinet as a stand-alone unit, use the two outer holes.
- Page 5 2. After the four 7/32” holes have been drilled mount the two angle brackets (A, Fig. 9) to the saw cabinet using four 1/4-20 x 5/8” hex washer head self tapping screws (B, Fig. 9).
- Page 6 mount the angle bracket (A, Fig. 10) to the pre-drilled holes in the cabinet using two 1/4-20 x 1-1/2” round head machine screws, two 1/4" flat washers, two 1/4” lock washers and two 1/4” hex nuts, (B, Fig. 10). 3. Mount the shelf to the three brackets with three 1/4-20 x 1-1/2”...
- Page 7 Index Part 1...3136054W ... Cabinet Door ..1 3...3721016W ... Small Shelf ..2 4...3721017W ... Large Shelf ..1 5...3726061W ... Left Side..1 6...3726062W ... Right Side..1 7...3060202W ... Bottom..1 8...3800219W ... Top..1 9...3800220W ... Back..1 10 ...6441002...
