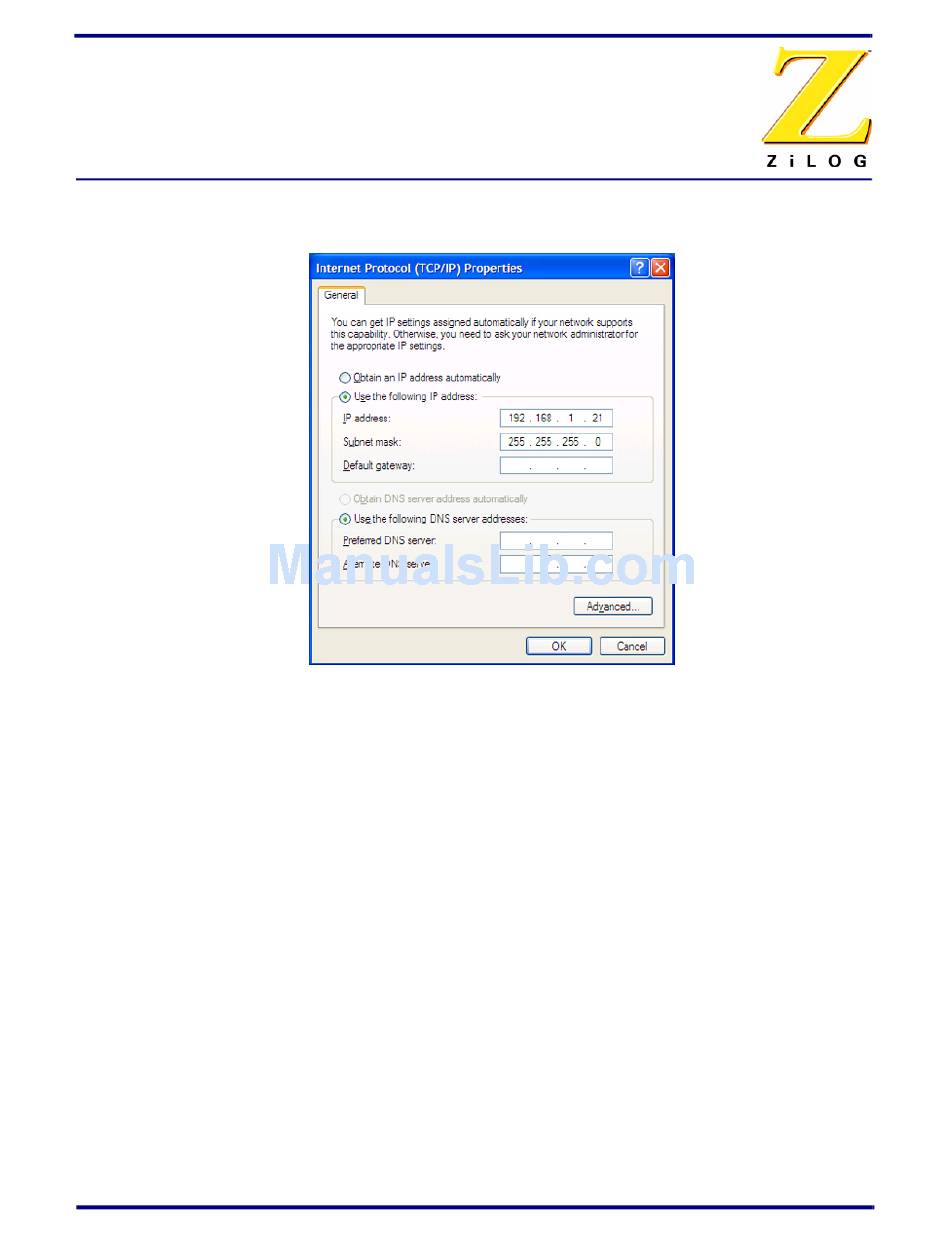

Figure 6. The Internet Protocol Properties Dialog
8. Enter an IP address of
values place the PC on the same network as the Ethernet Smart Cable, and do not con-
flict with the IP address of the Ethernet Smart Cable.
9. Click and restart the PC.
OK
10. The PC is now ready to communicate with Ethernet Smart Cable via the ZDS II soft-
ware.
11. The default IP address of the Ethernet Smart Cable unit is
Changing the Default Settings of the Ethernet Smart Cable
The Ethernet Smart Cable is equipped with a web interface that allows you to change its
default settings.
To access the Ethernet Smart Cable web interface, you must know the cable's IP address,
which you can obtain from ZDS II in the ZDS II
through 9 on page 4).
Installing the Ethernet Smart Cable
and a subnet mask of
192.168.1.21 255.255.255.0
192.168.1.50
window (see Steps 5
Project Settings
. These
.
