Introduction
Thank you for purchasing the ZiLOG Opto-Isolated USB Smart Cable (Figure 1). The
opto-isolated USB Smart Cable lets you connect your target Z8 Encore!
MC™ development board to a high-speed or full-speed USB port on your ZiLOG Devel-
oper Studio II (ZDSII) host system. Its internal optoisolator electrically isolates the devel-
opment kit circuitry from the USB Smart Cable.
This User Manual tells you how to install the USB Smart Cable for the first time and load
the necessary driver software. After connecting the USB Smart Cable and installing the
driver, you can proceed with debugging as described in your development kit documenta-
tion.
Kit Contents
•
USB Smart Cable
•
USB cable, Type A to Type B
•
Six-conductor ribbon cable
•
User Manual
ZiLOG Worldwide Headquarters • 532 Race Street • San Jose, CA 95126
Telephone: 408.558.8500 • Fax: 408.558.8300 •
Opto-Isolated USB Smart
Cable
User Manual

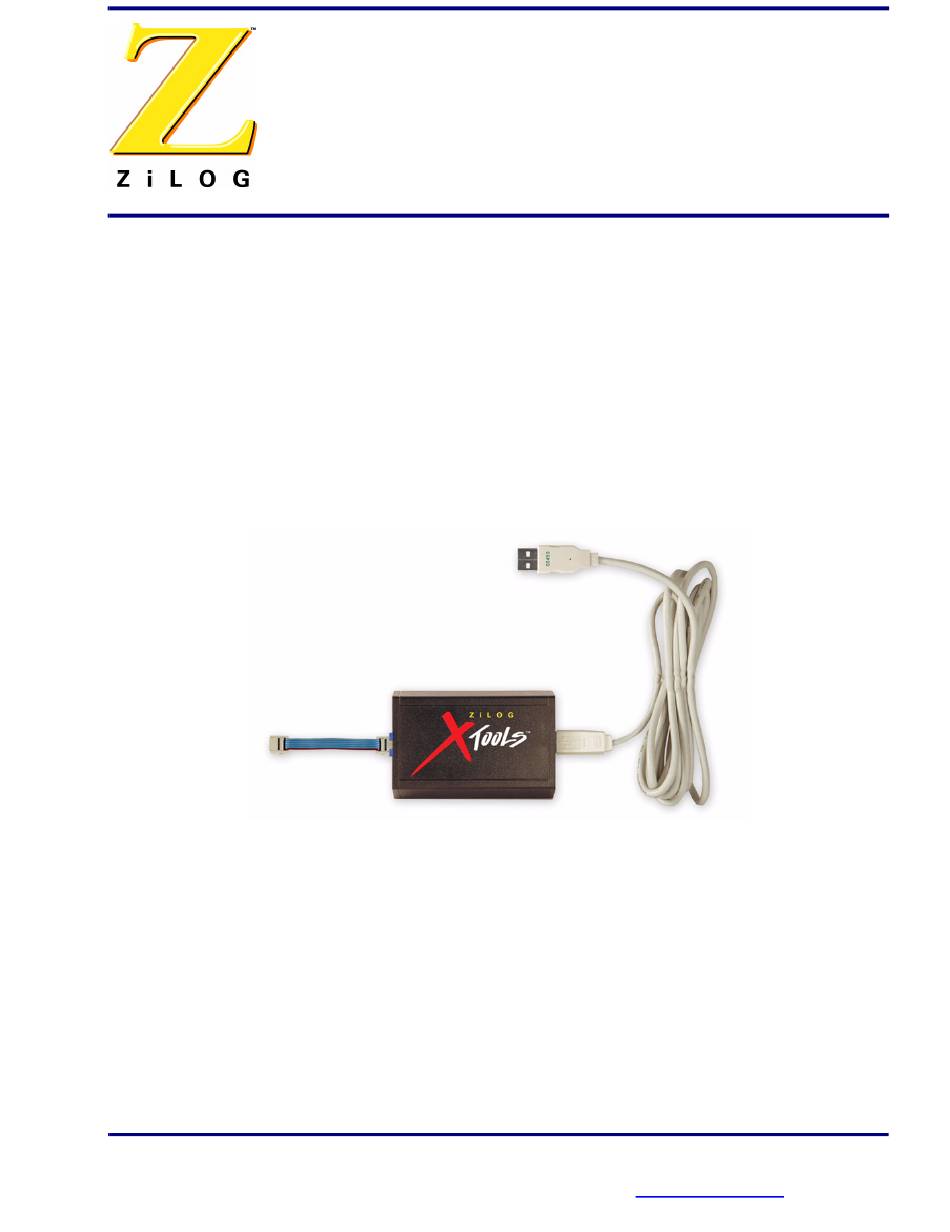

Figure 1. Opto-Isolated USB Smart Cable
UM019502-0606
®
or Z8 Encore!
www.ZiLOG.com
Advertisement
Table of Contents
Related Manuals for ZiLOG ZUSBOPTSC01ZACG
Summary of Contents for ZiLOG ZUSBOPTSC01ZACG
-
Page 1: Kit Contents
USB Smart Cable lets you connect your target Z8 Encore! or Z8 Encore! MC™ development board to a high-speed or full-speed USB port on your ZiLOG Devel- oper Studio II (ZDSII) host system. Its internal optoisolator electrically isolates the devel- opment kit circuitry from the USB Smart Cable. -
Page 2: Supported Host Environments
The procedure depends on your Windows operating system version. If you previously installed the USB Smart Cable as part of another ZiLOG Development Kit, you do not need to install the driver. Plug your USB Smart Cable into an available USB port and the system will install the driver automatically. - Page 3 Opto-Isolated USB Smart Cable User Manual Page 3 2. In the Wizard, select Install from a list or specific location (Advanced); then click Next. If the Windows Logo testing dialog appears, select Continue Anyway. Note: 3. Select Search for the best driver in these locations and Include this location in search.
-
Page 4: Connecting To The Target Board
Figure 2. Connecting the Six-Conductor Ribbon Cable to the USB Smart Cable Troubleshooting Before contacting ZiLOG Customer Support to submit a problem report, please follow these simple steps. If a hardware failure is suspected, contact a local ZiLOG representative for assistance. USB Smart Cable Not Recognized Disconnect all other USB devices (including keyboard and mouse if you can use PS2 ports instead). - Page 5 For additional troubleshooting solutions, see ZDSII Online Help. For valuable information about hardware and software development tools, visit ZiLOG Customer Support online. Download the latest released version of ZiLOG Developer Stu- dio! Get the latest software updates from ZiLOG as soon as they are available! UM019502-0606 Troubleshooting...
- Page 6 Fax: 408.558.8300 www.ZiLOG.com Document Disclaimer ZiLOG is a registered trademark of ZiLOG Inc. in the United States and in other countries. All other products and/or service names mentioned herein may be trademarks of the companies with which they are associated.
