Summary of Contents for Teac TE-AV300

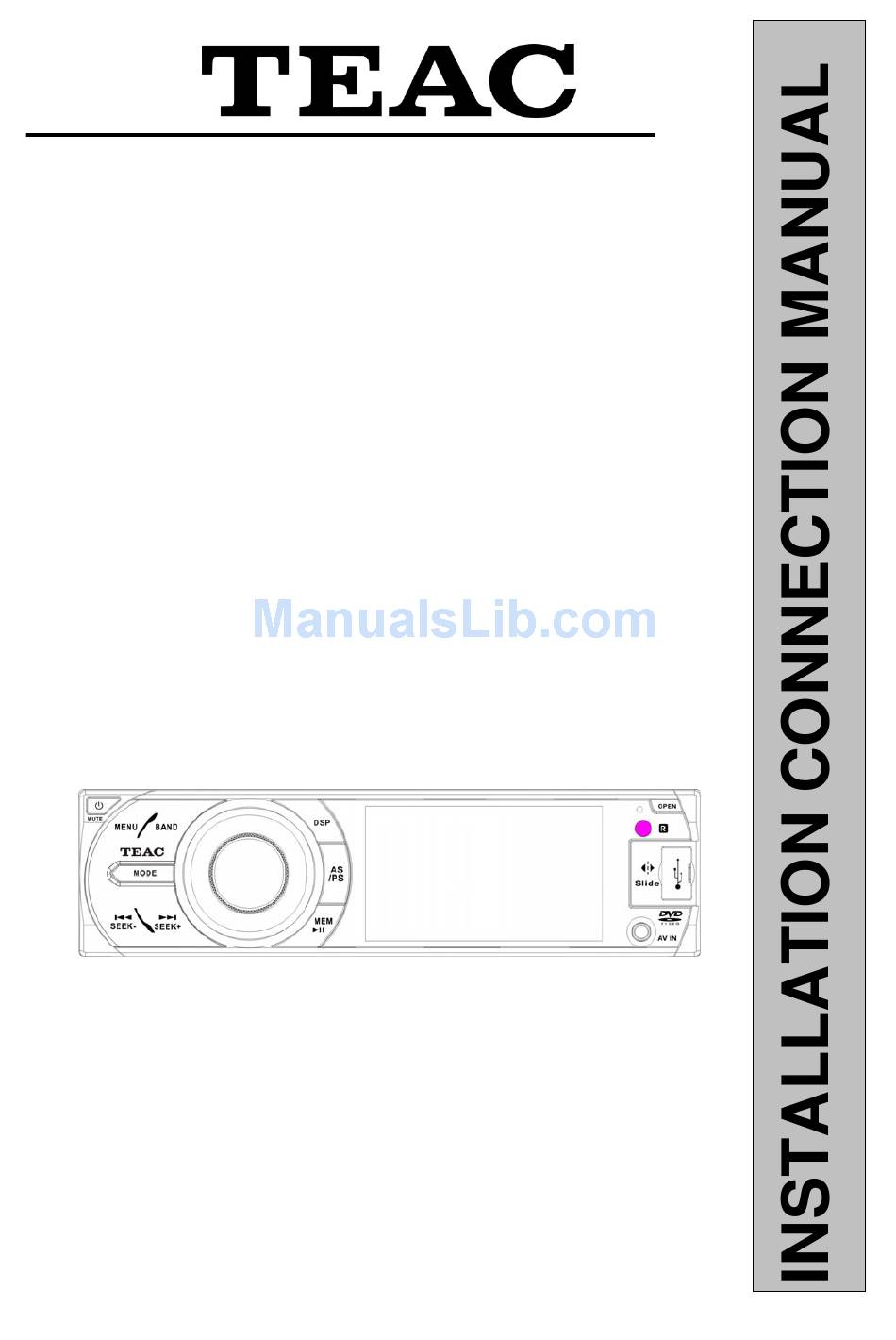

- Page 1 CAR DVD/CD/MP3 PLAYER /RADIO RECEIVER MODEL: TE-AV300...
-
Page 2: Copyright Information
Copyright Information ©2009 All rights reserved. This document may not in whole or in part be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, or reduced to any electronic medium or machine-readable form without prior consent, in writing, from [COMPANY]. -
Page 3: Important Safety Instructions
Dear Customer, Thank you for selecting our product. In order for you to utilize this device and all its options, we recommend that you read the corresponding instructions in this manual before the initial use of the device, even if you’re familiar with handling electronic devices. - Page 4 Don’t use the device for a longer period while the vehicle's engine isn't running. This could drain the vehicle battery to the degree that the car can no longer be started. In addition, this might reduce the lifespan of the battery. Don’t park your vehicle in direct sunlight for extended periods, otherwise the temperature in the car’s interior could rise to the point that the device overheats and causes malfunctions.
- Page 5 vehicle antenna (max. 100mA, 12 V=). If your vehicle has a wire antenna inside the windshield, connect the blue cable A5 (ISO plug A) to the pre-amplifier of the antenna. If an external audio amplifier is connected to the device, the blue cable of connection A5 (ISO plug A) may not be connected to the power supply of the amplifier.
-
Page 6: Table Of Contents
Table of Contents Copyright Information ……………………………………………………...…………………1 Important Safety Instructions..................2 Table of Contents ......................5 Accessories........................6 Control Reference Guide....................7 Removing & Attaching the Faceplate ................8 Removing.........................8 Attaching........................8 Wiring Connections .......................9 Installation in Dashboard.....................10 Disc Loading & Ejecting ....................12 Basic Operations ......................13 Multimedia Setup Menu....................19 System Setup ......................19 Language Setup.....................20 Audio Setup ......................21... -
Page 7: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. Mounting Collar Installation Kit: 1 x Mounting Bracket 1 x Assemble Bar 1 x Screw B15x16 4 x Bolt M5 1 x Nut M5 1 x Flat Washer 1 x Spring Washer 1x UNIT IR-Remote Control 2 x Unit Ejection Bars... -
Page 8: Control Reference Guide
Control Reference Guide 1. POWER/MUTE Button 14. AV-IN Jack 2. MENU Button 15. USB Socket 3. BAND Button 16. MEMORY Card Slot 4. VOLUME Button 17. EJECT Button 5. DSP Button 18. ANTI-THEFT LED 6. AS/PS Button 19. DISC Loading Slot 7. -
Page 9: Removing & Attaching The Faceplate
Removing & Attaching the Faceplate Removing Open the front to min 45 degrees or to its fold down position. Gently press the right side towards the left and gently remove the faceplate by pulling it towards you. Attaching Gently place the left side of the front onto the locking pin, then gently click the right side onto the locking pin and close the front until you hear a click. -
Page 10: Wiring Connections
Wiring Connections Make sure you have good chassis ground. A good ground connection will eliminate most electrical noise problems. A good chassis ground requires a tight connection to the vehicle’s metal chassis. The area around the ground connection should be clean, bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection. -
Page 11: Installation In Dashboard
Installation in Dashboard If your car is fitted with a one (1x) DIN size opening for a car audio system, you can install the Car Radio according these steps. Note: Unit should be installed horizontally in an angle less than 30°. NOTE: Before installing the unit, please... - Page 12 Note: Step 7 and 8 are only possible when you can reach the back of the unit inside the dashboard. To remove the unit, CAREFULLY remove the front rim (do not use force, else the connection pins of the rim will break off) and place the two extraction keys into the left and right side of the unit until they click in place and pull the unit gently out of the...
-
Page 13: Disc Loading & Ejecting
Disc Loading & Ejecting • Load one disc with the label side facing upwards and make sure you do not touch the data side with your fingers. • Press the [OPEN] button on the unit to open and fold down the faceplate for loading or unloading a disc. -
Page 14: Basic Operations
Basic Operations POWER/ MUTE Button Press the power button to switch the unit ON. Long press again to switch it OFF. Press the button briefly to Mute. Please note that the volume will be muted on all audio output connectors. The MUTE icon will be seen on the information display. To resume playing, press the button briefly again. - Page 15 reproduced during this operation. AS (AUTO STORE)/ PS (PRESET SCAN) AS (Auto Store): In tuner mode, Press the AS/PS on the panel or RPT/P.SCN button on the remote and hold for 2 seconds to store radio station's with the best reception to the preset buttons automatically.
- Page 16 Support 10 levels for each front and rear channel. Default is front FADER equal to rear. EQ DSP OFF FLAT→CLASSICS→POP→ROCK→DSP OFF 2）Picture Menu Adjust level of red color. Support 50 levels. Default level is 25. GREEN Adjust level of green color. Support 50 levels. Default level is 25 BLUE Adjust level of blue color.
- Page 17 LOUD Set loudness on or off. OFF→ON SUBWOOFER Set subwoofer on or off .OFF→ON BACKLIGHT Set OSD BACKLIGHT: HIGHT→LOW →MID Set OSD COLOR:DARK BLUE→ VIOLET→ LIGHT BLUE COLOR RESET 6) Clock Menu CLOCK Set CLOCK display time ON or OFF CLOCK HOUR Set 24Hour format or 12Hour format CLOCK ADJUST...
- Page 18 Eonta DX(Distance) Mode EON TA switching information is implemented by the information of the current station. When EONTA DISTANCE mode is selected, the unit will switch to the radio station transmitting the TA signal. Regional Mode ON AF switching or PI SEEK is implemented to the station which have all PI codes the same as current station.
- Page 19 BACK VIEW CAMERA This unit is equipped with back view camera output. The camera is used to observe the situation behind the vehicle when you are backing the car. Please connect your back view camera with the back car video input. And connect the reverse wire for back a car with the rear gear light.
-
Page 20: Multimedia Setup Menu
Multimedia Setup Menu When in Multimedia mode, press the SETUP button on the remote control to enter the Multimedia player setup menu to setup the Multimedia player operation setting. Press SETUP button to enter into the system settings main menu; press the left or right arrow buttons to move to the highlighted menu item and select one of the Setup Pages: Press SETUP and then ENTER to enter into setup menu. -
Page 21: Language Setup
[4] Video Setup: Check Video out type from this menu item. [5] TV Type: Set TFT screen mode to the correct ratio: Three screen ratio modes are available, Normal/PS (4:3 Pan Scan), Normal/LB (4:3 Letterbox) and Wide (16:9). Different disc formats will display different images depending this setting and the screen size used. -
Page 22: Audio Setup
[3]. Subtitle Lang Setting: With this option you can select the preferred language for the subtitles. When the selected language is recorded on the Multimedia file or DVD then this language will automatically be shown. If not, the first language recorded on the Multimedia file or DVD is displayed. -
Page 23: Sd/Mmc Cards & Usb Operations
SD/MMC Cards & USB Operations Inserting the SD/MMC Card/ USB Device 1. Turn the power on. 2. Insert the USB device into the USB slot on the front panel. The playing mode will be changed into USB mode automatically. The unit will read the files automatically. 3. -
Page 24: Factory Default Settings ("Reset")
If the MP3/ MP4/ WMA/image files are stored in the folders on the USB drive or Card, press on the remote or press BAND on the panel to select MP3/PICTURE/MP4 mode. In MP3 mode press “ ”/” ” on remote control or long press BAND on the panel , cursor move to folder, then press “Enter”... -
Page 25: Remote Control
Remote Control MODE POWER ON-OFF BND / RDM ENTER LEFT, RIGHT, UP, DOWN Navigation Arrows DUAL PTY/PROG P.SCN/RPT SEEK- / ▌◄◄ AF/TA STOP / PBC NUMBERS 0-9 PLAY / PAUSE MUTE MENU SUB TITLE SETUP ANGLE VOLUME PLUS REPEAT A-B / ZOOM SELECT MENU SEEK+/►►▌... -
Page 26: Changing The Battery
Changing the Battery 1. Press the catch and at the same time pull out the battery tray. 2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+)mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach. -
Page 27: Unit Operation With Remote Control
Unit Operation with Remote Control 1. MODE Button Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB device in the unit), CARD (if there is a SD/SDHC card in the unit), and AV IN. 2. - Page 28 AS (Auto Save): Long press to save the stations with good reception automatically in the current band and scan each station for about 5 seconds. To stop AS, press the button again. In Bluetooth mode: Press to make a # symbol. 9/ 24.
- Page 29 change the selection. In Multimedia mode with recorded DVD files or DVD discs, press and hold the MENU button to activate the menu list on the screen. Choose the desired item and press the ENTER button to confirm the selected item and start playing; On front panel, press the OK button to confirm the selected item and start playing.
-
Page 30: Technical Specifications
Technical Specifications General Operational Voltage: 12 Vdc (10.8 ~16V allowable) Fuse: 15 A Grounding: Negative pole on the vehicle body Installation Angle: Vertical 0° to +30°, horizontal ±15° Net Weight: 1.80 kg Composite Video Input: 1 (Front, 3.5mm) Audio Input (AUX, Stereo): 1 (Front, 3.5mm) Audio Output (RCA): 4 Channel... - Page 31 Frequency Range (± 3 dB): 20 Hz – 20 KHz Audio Input Level: 200mV (2V Max) Audio Output Level: 2Vrms (1KHz, 0dB) ± 0.3V VIDEO Normal Video Input Level: 1.0Vp ±0.2V (CVBS) Video Input Impedance: 75 Ω Video Output Impedance: 75 Ω...
