PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
!
Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
[T/C]: UL/CSA [E]: EUROPE [UK]: U.K.

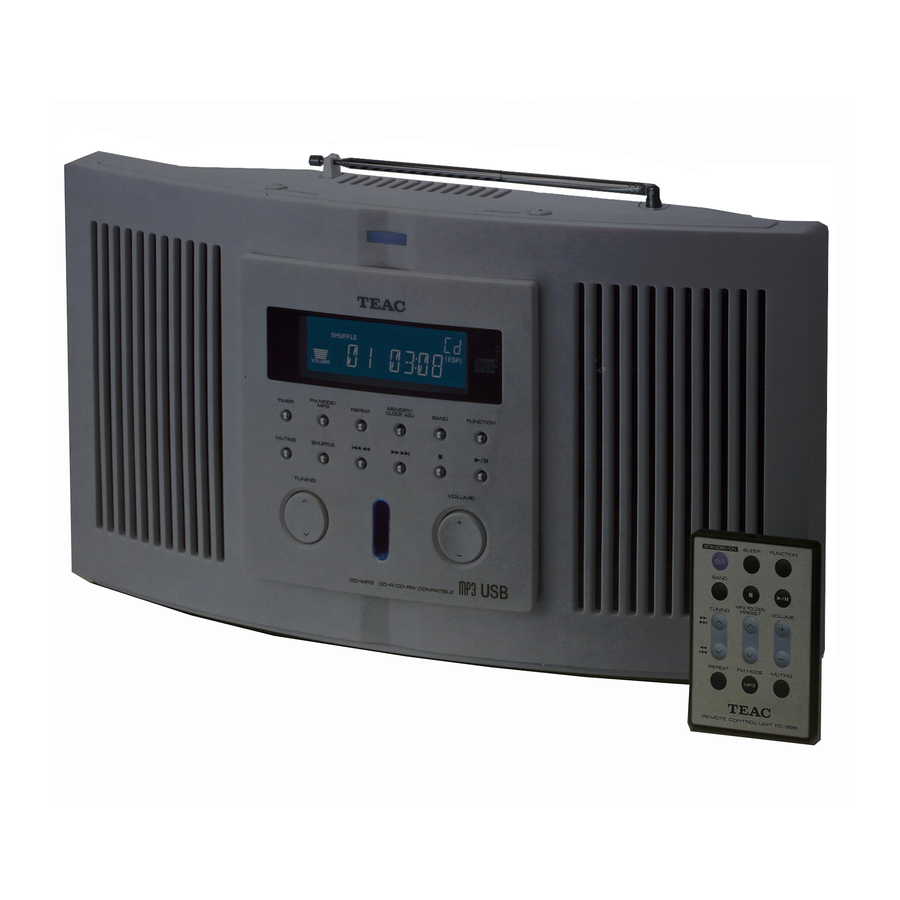

SR-L35
WALL-MOUNTABLE
1 SPECIFICATIONS
2 SAFETY INFORMATION
3 ADJUSTMENT AND CHECKS
4 EXPLODED VIEW AND PARTS LIST
5 PC BOARDS AND PARTS LISTS
6 WIRING DIAGRAM
7 INCLUDED ACCESSORIES
CD RECEIVER
2
3
4
7
12
20
22
Advertisement
Table of Contents
Related Manuals for Teac SR-L35
Summary of Contents for Teac SR-L35
- Page 1 SR-L35 WALL-MOUNTABLE CD RECEIVER 1 SPECIFICATIONS PC board shown are viewed from parts side. 2 SAFETY INFORMATION The parts with no reference number or no parts number in the exploded views are not supplied. 3 ADJUSTMENT AND CHECKS As regards the resistors and capacitors, refer to the 4 EXPLODED VIEW AND PARTS LIST circuit diagrams contained in this manual.
-
Page 2: Safety Information
HAZARDOUS RADIATION EXPOSURE. DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER. IF THIS PRODUCT DEVELOPS TROUBLE, MAKE A CONTACT WITH OUR SERICEMAN, AND DO NOT USE THE PRODUCT A TROUBLED STATE. MODEL NO.SR-L35 CD RECEIVER CLASS 1 LASER PDODUCT LUOKAN 1 LASERLAITE... -
Page 3: Specifications
SR-L35 2 SPECIFICATIONS TUNER Section Frequency Range (FM): 87.5MHz to 108.00 MHz (100kHz step) - USA 87.5MHz to 108.00 MHz (50kHz step) - EUR 520kHz to 1710 kHz (10kHz step) - USA Frequency Range (AM): 522kHz to 1620 kHz (9kHz step) - EUR... -
Page 4: Adjustments And Checks
SR-L35 3 ADJUSTMENTS AND CHECKS 3-1 TUNER SECTION Use a screwdriver with a plastic or ceramic grip for all adjustment. 3-1-1 FM adjustment 1. Set the function switch to the TUNER position. 2. Set the BAND switch to the FM position. - Page 5 SR-L35 3-2-1 AM Tuner MEASURING POINTS. SG SETTING TUNER SETTING ADJUSTMENT ITEM RESULT 1710kHz (USA) 8.0V 1. VOLTAGE 1620kHz (EUR) adjustment 520kHz (USA) Check 1.5V 522kHz (EUR) 2. IFT 450kHz 600kHz (USA) Adjust for max.output. adjustment 1kHz, 30% mod 603kHz (EUR) 600kHz (USA) 3.
- Page 6 SR-L35 3-2-3 FM Tuner MEASURING POINTS. SG SETTING TUNER SETTING ADJUSTMENTS ITEM RESULT 106.1MHz Check 5.5-5.9V 1. VOLTAGE adjustment Check 90.1MHz 1.2-1.6V Digital multimeter FM Signal Generator SR-L35 VT voltage PHONES 75 ohm AC Voltmeter 1 k ohm 1 k ohm...
-
Page 7: Exploded Views And Parts List
SR-L35 4. EXPLODED VIEWS AND PARTS LIST EXPLODED VIEW 1 - CD DOOR ASSEMBLY EXPLODED VIEW 2 - R/L SPEAKER ASSEMBLY... - Page 8 SR-L35 EXPLODED VIEW-1 REF. NO PARTS NO. DESCRIPTION REMARKS 007-R35B0101 LCD WINDOW 006-R35B0101 CD DOOR PANEL - BLACK 006-R35W0101 CD DOOR PANEL - WHITE 006-R35S0101 CD DOOR PANEL - SILVER GREY 004-R35B0501 TUNER KNOB - BLACK 004-R35W0501 TUNER KNOB - WHITE...
- Page 9 SR-L35 EXPLODED VIEW 3 - MAIN ASSEMBLY...
- Page 10 SR-L35 EXPLODED VIEW-3 REF. NO PARTS NO. DESCRIPTION REMARKS 002-SR350200 CD DOOR GEAR BASE 008-SRL35003 CD DOOR GEAR-C 008-SRL35002 CD DOOR GEAR-B 008-SRL35001 CD DOOR GEAR-A 008-SRL35005 BELT PULLEY 014-SRL35010 WORM GEAR SHAFT 033-02301015 CD MOTOR BELT 085-SRL35060 CD MOTOR - RF-370CA-15370...
- Page 11 SR-L35 EXPLODED VIEW-3 REF. NO PARTS NO. DESCRIPTION REMARKS 3-34 001-R35B0201 REAR PANEL - BLACK [T/C] 001-R35W0201 REAR PANEL - WHITE [T/C] 001-R35S0201 REAR PANEL - SILVER GREY [TC] 001-R35B0202 REAR PANEL - BLACK [E] [UK] - W/O MADE IN CHINA...
-
Page 12: Pc Boards And Parts List
SR-L35 5 PC BOARDS AND PARTS LIST MAIN PCB ASSY REF. NO PARTS NO. DESCRIPTION REMARKS 100-SR352010 MAIN PCB ASSY [T/C] 100-SR351030 MAIN PCB ASSY [E] [UK] 062-SRL35000 MAIN PCB 055-SLD90000 TUNER PACK 020-SD900000 FM ANTENNA JACK [T/C] C2,55,56 072-30100161 E.CAP 1000UF/16V... - Page 13 R101 TO CD PCB C100 KIA7805 R133 R105 HZ5B2 R142 C105 IC12 R100 R103 R106 R136 TUNER AREA SETUP JAPAN SR-L35 MAIN PCB CD-P 5.7V TU-P MUTE V-CE V-CL V-DA R143 FU-A FU-B R144 RESET R145 TO CD PCB TC9260P...
- Page 14 SR-L35 CD PCB ASSY REF. NO PARTS NO. DESCRIPTION REMARKS 100-SR352020 CD PCB ASSY 062-SRL35001 CD PCB C230 072-30220101 CE 2200UF/10V 082-21350300 FPC CONNECTOR 13P P=1.25MM CN10 082-10600100 CONNECTOR 6P P=2MM FPC CONNECTOR 15P P=1MM CN12 082-21530300 CN17 082-20660100 CONNECTOR 6P P=1.5MM...
- Page 15 SR-L35 CD PCB CD PCB R265 R265 IC1 1 0 0 Q204 Q204 CN20 CN20 R239 R239 CN19 CN19 POWER LED POWER LED CN24 CN24 C242 C242 C241 C241 C248 C248 R236 R236 C252 C252 J241 J241 J234 J234 J242...
- Page 16 SR-L35 CD CONTROL PCB ASSY REF. NO PARTS NO. DESCRIPTION REMARKS 100-SR352040 CD CONTROL PCB ASSY 062-SRL35004 CD CONTROL PCB CN26 082-21530300 CONNECTOR 15P P=1MM CN27 082-21430300 CONNECTOR 14P P=1MM 080-SRL50021 LCD DISPLAYTCM-3866 094-06030502 LED02 BLUE LED 5MM Q301-303,305 076-00C94500...
- Page 17 R306 R306 R313 R313 SW013 SW013 R310 R310 TUNER UP TUNER UP 062-SRL35004 062-SRL35004 SW02 SW02 SR-L35 CONTROL PCB SR-L35 CONTROL PCB VOL-UP VOL-UP 94-HB REV:00 94-HB REV:00 G.M.ZENG 2004-4-30 G.M.ZENG 2004-4-30 SW015 SW015 SW03 SW03 TUNER DOWN TUNER DOWN...
- Page 18 SR-L35 POWER LED PCB ASSY DESCRIPTION REMARKS REF. NO PARTS NO. 100-SR352070 POWER LED PCB ASSY 062-SRL35003 POWER LED PCB LED01 094-06030502 BLUE LED 5MM DC JACK PCB ASSY REMARKS REF. NO PARTS NO. DESCRIPTION 100-SR352080 DC JACK PCB ASSY...
- Page 19 POWER LED POWER LED SW023 SW023 LED01 LED01 AUX/RESET PCB AUX/RESET PCB CW24 CW24 RESET RESET SR-L35 UNITED PCB SR-L35 UNITED PCB 062-SRL35003 062-SRL35003 94-HB REV: 01 94-HB REV: 01 2004.7.2 2004.7.2 DC JACK PCB 2004.7.2 2004.7.2 94-HB REV: 01...
-
Page 20: Wiring Diagram
SR-L35 6 WIRING DIAGRAM TO SPEAKER-L TO SPEAKER-R MAIN PCB TO CD PCB CN5 TO AUX PCB CW4 TO CD PCB CW6... - Page 21 SR-L35 TO CD OPEN/CLOSE PCB TO CD POWER LED PCB CN20 CN24 CN18 CN22 TO CD DOOR SW PCB TO CD PICK UP CN10 TO TUNER PACK TO MAIN PCB CN7 CN12 CN25 TO CONTROL PCB CN27 TO CONTROL PCB CN26...
- Page 22 SR-L35 7 INCLUDED ACCESSORIES INCLUDED ACCESSORIES REF. NO PARTS NO. DESCRIPTION REMARKS 046-SRL35000 INSTRUCTION MANUAL - E/F [T/C] 046-SRL35020 INSTRUCTION MANUAL - E/F/S [E] [UK] 046-SRL35030 INSTRUCTION BOOK - G/H/I [E] [UK] 084-SR351200 AC ADAPTER UL 120V/60Hz [T/C] 084-SR351201 AC ADAPTER UL 120V/60Hz [T/C] - SILVER GREY...
- Page 23 TEAC NEDERLAND BV Oeverkruid 15,NL-4941 W Raamsdonksveer, Nederland Phone:0162-510210 TEAC BELGIUM NV/SA. c/o TEAC NEDERLAND BV, Oeverkruid 15, NL-4941 W Raamsdonksveer, Nederland Phone:+31-162-510860 TEAC ITALIANA S.p.A. Via C, Cantu 11, 20092 Cinisello Balsamo, Milano, Italy Phone:02-66010550 TEAC AUSTRALIA PTY., LTD.
- Page 24 2SB544 R355K6 R4 47K 220K L-CH TRANSFORMER PHONEPLUG 10/16 +12V 10/16 AN7808 R-CH R36 5K6 R39 1K C23 10/16 R1 10K DC:+12V 100/16 100K 10/16 100K 2SC945 1000/16 TO CD PCB AC INPUT 2200/25 3.3/50 120V/60HZ SR-L35 WALL-MOUNTABLE CD RECEIVER...
- Page 25 3 PIN P=2.0mm 220/16 104CC R259 CW20 SW019 LM-CL OPSW O P/ CL SW MOTOR PCB CN21 R217 CW21 DGND LM-OP 2.2 OHM SW018 VREF OUT1 VREF OUT2 CLSW CLOSE TA7291S LM-CL IC14 OPEN/ CL SW PCB SR-L35 WALL-MOUNTABLE CD RECEIVER...
- Page 26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 SHUFFLE REPEAT CD TUNER AUX SNOOZE MUTING TIMER SLEEP MEMORY INTRO STEREO REMAIN DISPLAY SR-L35 WALL-MOUNTABLE CD RECEIVER...
