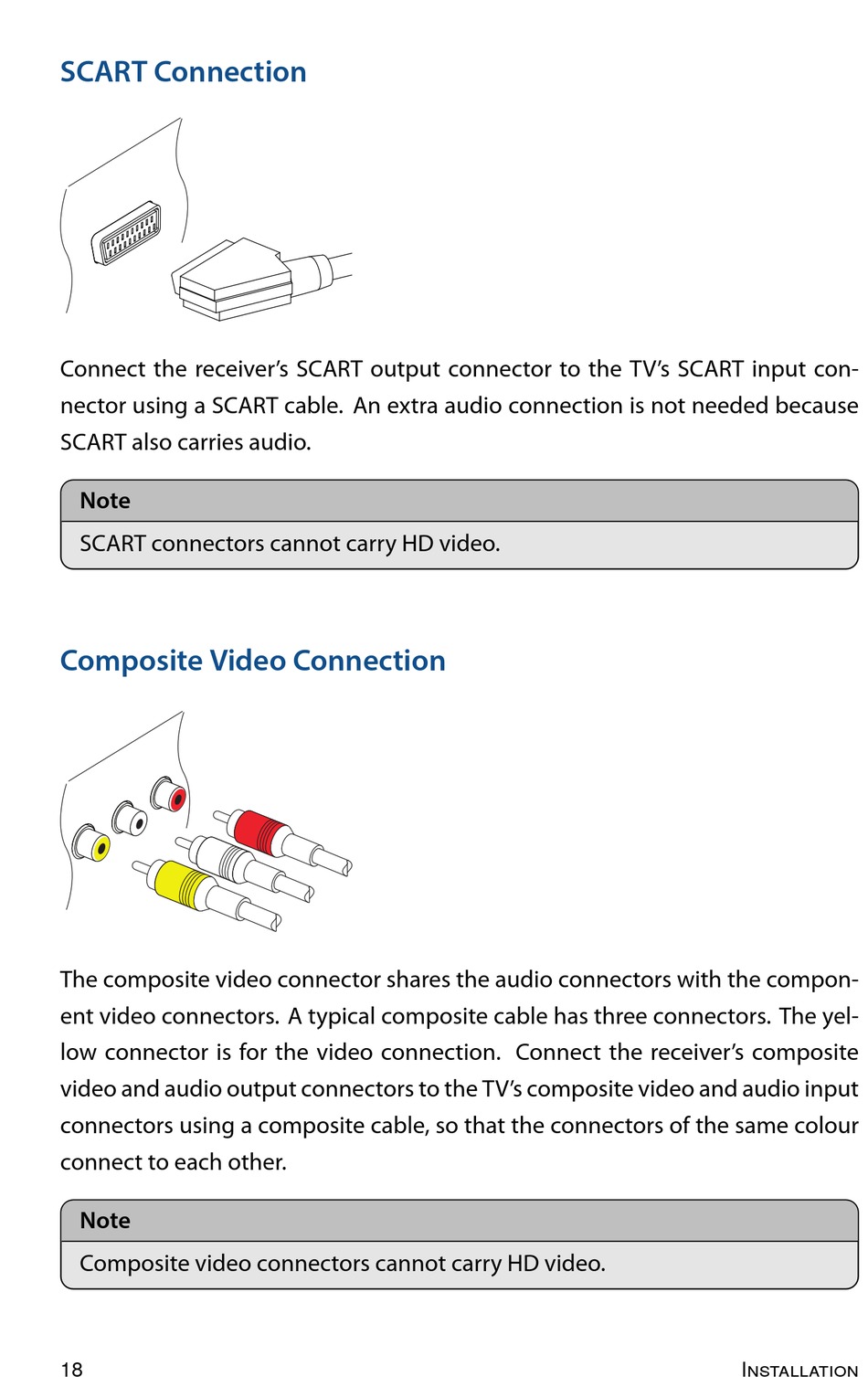

SCART Connection
Connect the receiver's SCART output connector to the TV's SCART input con-
nector using a SCART cable. An extra audio connection is not needed because
SCART also carries audio.
Note
SCART connectors cannot carry HD video.
Composite Video Connection
The composite video connector shares the audio connectors with the compon-
ent video connectors. A typical composite cable has three connectors. The yel-
low connector is for the video connection. Connect the receiver's composite
video and audio output connectors to the TV's composite video and audio input
connectors using a composite cable, so that the connectors of the same colour
connect to each other.
Note
Composite video connectors cannot carry HD video.
18
