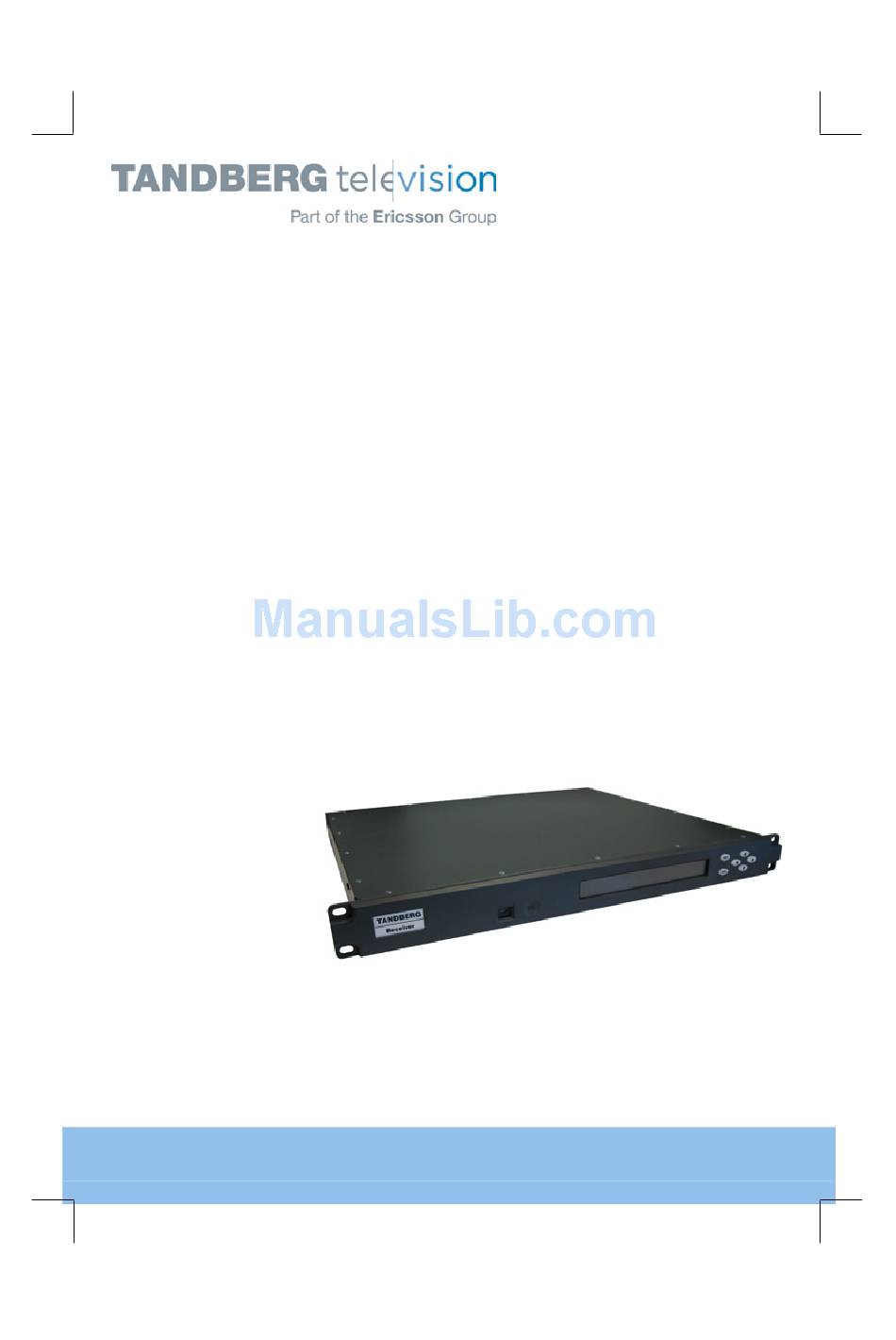

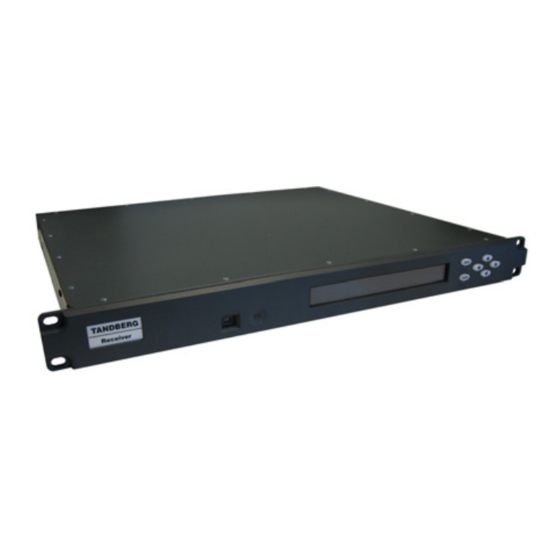

ST.US.E10274.1 USER GUIDE RX8310/RX8315/RX8330 Distribution Receiver Software Version 1.3.0 RX8310/15/30 Receivers Distribution ENGLISH (UK) www.tandbergtv.com... - Page 2 This document and the information contained in Issue 1 first published in 2009 by: it is the property of TANDBERG Television Ltd TANDBERG Television Ltd and may be the subject of patents pending and granted. It must not be used for commercial...
-
Page 3: Table Of Contents
RX8310/RX8315/RX8330 Distribution Receiver Contents Who Should Use This User Guide? ................5 What Equipment is Covered by This User Guide? ............5 Hardware and Software Options..................5 Installing the Equipment .....................7 Introduction ........................7 Operating Voltage ......................7 Power Cable and Earthing .....................7 Rear Panel Connectors....................7 Connecting the Receiver to the Power Supply ............10... - Page 4 Figure 2.2: Rear Panel Connectors (RX8315/BAS with RX83XX/HWO/IP) ......8 Figure 2.3: Rear Panel Connectors (RX8330/BAS with RX83XX/HWO/IP) ......9 Figure 3.1: Front Panel LEDs and Pushbuttons..............11 Figure 4.1: Example Status Tab - Web Control for an RX8310 Receiver......14 List of Tables Table 1.1: Equipment Model Descriptions................5 Table 1.2: RX8310/RX8315/RX8330 Hardware Options ............5...
-
Page 5: Who Should Use This User Guide
RX8310/RX8315/RX8330 Distribution Receiver Who Should Use This User Guide? This User Guide is written for operators/users of the RX8310, RX8315 and RX8330 Distribution Receivers to assist in installation and operation. WARNING Do not remove the covers of this equipment. Hazardous voltages are present within this equipment and may be exposed if the covers are removed. -
Page 6: Table 1.3: Rx8310/Rx8315/Rx8330 Software Option
MPEG-4 AVC SD decoding and MPEG-4 AVC HD down conversion ® RX83XX/SWO/AC3 Dolby Digital decoding / downmixing Table 1.4: RX8310/RX8330 Specific Software Options Marketing Code Description RX83XX/SWO/DIR5/MSD TANDBERG Director 5 Multi-Service License key Table 1.5: RX8315/RX8330 Specific Software Options Marketing Code... -
Page 7: Installing The Equipment
RX8310/RX8315/RX8330 Distribution Receiver Installing the Equipment Introduction Use this User Guide for guidance on installation and operation. Only use installation accessories recommended by the manufacturers. Operating Voltage CAUTION This product should be operated only from the type of power source indicated on the marking label. -
Page 8: Figure 2.1: Rear Panel Connectors (Rx8310/Bas)
AUDIO OUT 1 & 2 RF IN 1,2,3,4 ASI INPUT EARTH ETHERNET 1 & 2 ALARM ASI OUT CVBS Figure 2.1: Rear Panel Connectors (RX8310/BAS) RF IN 1,2,3,4 IP OUT 1 & 2 AUDIO OUT 1 & 2 TECHNICAL EARTH CONDITIONAL ACCESS INTERFACE ALARM... -
Page 9: Figure 2.3: Rear Panel Connectors (Rx8330/Bas With Rx83Xx/Hwo/Ip)
RX8310/RX8315/RX8330 Distribution Receiver RF IN 1,2,3,4 IP OUT 1 & 2 AUDIO OUT 1 & 2 TECHNICAL EARTH CONDITIONAL ACCESS INTERFACE ASI / SDI OUT ASI / SDI OUT ASI / SDI OUT CVBS ETHERNET 1 & 2 ALARM CONDITIONAL... -
Page 10: Connecting The Receiver To The Power Supply
RX8310/RX8315/RX8330 Distribution Receiver Connecting the Receiver to the Power Supply WARNINGS Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock 2. As no mains switch is fitted to this unit, ensure the local power supply is switched OFF before connecting the supply cord. -
Page 11: Operating The Equipment From The Front Panel
RX8310/RX8315/RX8330 Distribution Receiver Operating the Equipment From the Front Panel Introduction The front panel display and keypad may be used to configure, control and monitor the Receiver when an external control system or PC is not used. NOTE Not all of the receiver User Settings may be viewed or changed from the front panel. - Page 12 RX8310/RX8315/RX8330 Distribution Receiver 3.3.2 Edit and Save Pushbuttons The edit and save pushbuttons are used to modify User Settings within the menu system. The edit pushbutton backlight is illuminated when the current menu contains a user modifiable setting. To modify a User Setting within a menu, press the edit pushbutton and then use the up and down pushbuttons to change the User Setting.
-
Page 13: Operating The Equipment From A Web Browser
RX8310/RX8315/RX8330 Distribution Receiver Operating the Equipment From A Web Browser Introduction A PC Web Browser may be used to configure, control and monitor the Receiver. The PC must be connected to either of the two IP control ports on the rear of the receiver (labelled ETHERNET 1 and 2 or CONTROL 1 and 2). -
Page 14: Using The Receiver Web Browser Interface
RX8310/RX8315/RX8330 Distribution Receiver Figure 4.1: Example Status Tab - Web Control for an RX8310 Receiver Using the Receiver Web Browser Interface The User Settings that may be viewed or modified from the Web Browser interface are grouped together by function and are displayed on a number of pages. These pages can be viewed by selecting the relevant tabs. - Page 15 RX8310/RX8315/RX8330 Distribution Receiver • Status: This page contains User Settings for: Unit name and IP address Input feed status Video decode status Audio decode status Decryption status Unit alarm status and log • Device Info: This page contains User Settings for:...
- Page 16 RX8310/RX8315/RX8330 Distribution Receiver • Output: This page contains User Settings for: Selection and configuration of the output feeds • Download: This page contains User Settings for: Status of in-band software download. • SNMP: This page contains User Settings for: Protocol selection MIB parameters •...
-
Page 17: Quick Start Guide - Using The Front Panel Control
RX8310/RX8315/RX8330 Distribution Receiver Quick Start Guide - Using the Front Panel Control Making Signal Connections to the Unit If you have an incoming satellite RF feed, connect this to the rear panel connector marked RF Input If you have an incoming ASI (Fiber) feed, connect this to the connector marked ASI Input Decoded PAL or NTSC video is output on connectors CVBS 1 and CVBS 2. -
Page 18: Selecting A Decode Service (Program)
RX8310/RX8315/RX8330 Distribution Receiver Select SAT input Set the LNB frequency Set the Satellite frequency Set the Symbol Rate Set the Modulation scheme and FEC Set the Roll-Off Set the set the LNB power output Set the set the LNB power output level A description of each of these User Settings can be found in the Reference Guide. -
Page 19: Configuring The Video Output
RX8310/RX8315/RX8330 Distribution Receiver Configuring the Video Output The unit will automatically decode the first video component that it finds within the selected service. An alternative video component may be selected from the service tab on the Web Control interface. NOTE... -
Page 20: Equipment Packaging
RX8310/RX8315/RX8330 Distribution Receiver Equipment Packaging Packaging Statement The outer carton and any cardboard inserts are made from 82% recycled material and are fully recyclable. Packaging Markings The symbols printed on the outer carton are described below: Handle with care This way up... - Page 21 RX8310/RX8315/RX8330 Distribution Receiver The packaging is reusable per GB 18455-2001 This symbol guarantees that packaging with this symbol is recyclable and will be accepted by cardboard recyclers Recyclable per GB 18455-2001...
-
Page 22: Materials Declarations
EFUP. For TANDBERG Television products, the hazardous material content is limited to lead (Pb) in some solders. This is extremely stable in normal use and the EFUP is taken as 50 years, by comparison with the EFUP given for Digital Exchange/Switching Platform in equipment in Appendix A of “General Rule of... -
Page 23: Disposal Of This Equipment
RX8310/RX8315/RX8330 Distribution Receiver Disposal of this Equipment General Dispose of this equipment safely at the end of its life. Local codes and/or environmental restrictions may affect its disposal. Regulations, policies and/or environmental restrictions differ throughout the world. Contact your local jurisdiction or local authority for specific advice on disposal. -
Page 24: Recycling
TANDBERG Television’s customer services for assistance with recycling if this site does not show the information you require. Where it is not possible to return the product to TANDBERG Television or its agents for recycling, the following general information may be of assistance: Before attempting disassembly, ensure the product is completely disconnected from power and signal connections.
