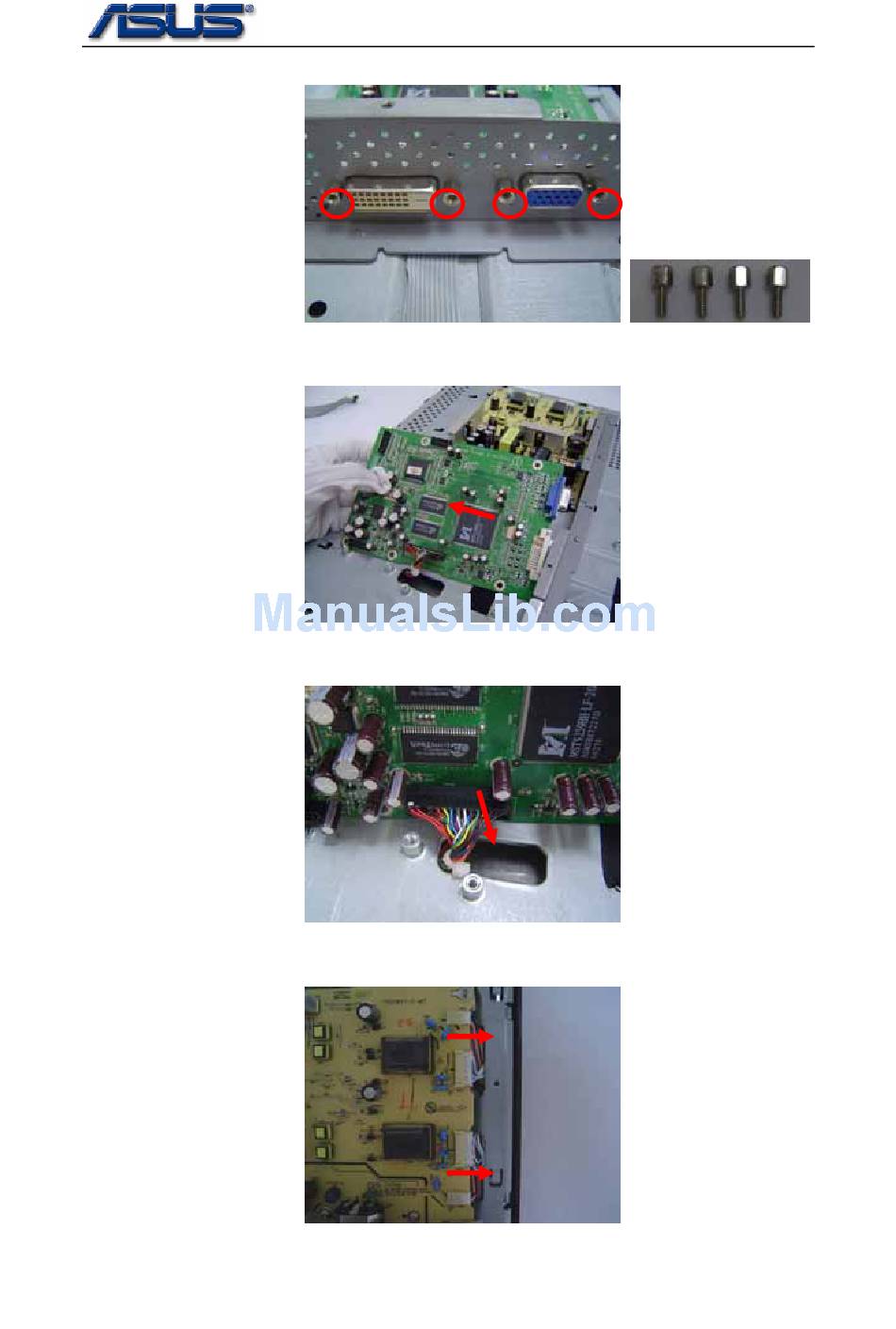

3. Remove 4 screws on VGA PORT and DVI PORT.

4. Pull out the MAIN BOARD slightly, but do not remove it.

5. Unplug the LVDS CABLE，and then take away MAIN BOARD.

6. Unplug LAMP CABLES.
