Summary of Contents for Asus MX27U series
-

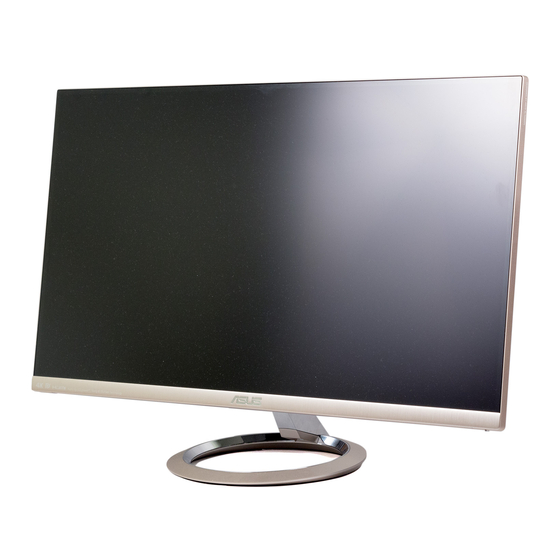

Page 1: User Guide
MX27U Series LCD Monitor User Guide... - Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Table of contents Notices ......................iv Safety information ..................viii Care & Cleaning ..................ix Takeback Services ..................x Welcome! ..................1-1 Package contents ................. 1-1 Assembling the monitor base ............. 1-2 Connect cables ................1-3 1.4.1 Rear of the LCD monitor ..........1-3 Monitor introduction .............. -
Page 4: Notices
Notices Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 5 Industry Canada statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à...
- Page 6 • EN 301 489-17 Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment • EN 301 489-1 Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得...
-
Page 7: Canadian Department Of Communications Statement
Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. AEEE Yönetmeliğine Uygundur... -
Page 8: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 9: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. -
Page 10: Takeback Services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. -
Page 11: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 12: Assembling The Monitor Base
Turn the screw clockwise to secure the base. Then adjust the monitor to the angle that is most comfortable for you. • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS LCD Monitor MX27U Series... -
Page 13: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor 5V/1.5A HDMI-1 HDMI-2 5V/1.5A HDMI-1 HDMI-2 Controls button USB port/Power USB (5V/1.5A) HDMI-1/ HDMI-2 port DisplayPort Earphone jack DC-IN port Speakers Kensington Lock • *HDMI-2 port can support 4K at 60Hz. Chapter 1: Product Introduction... -
Page 14: Monitor Introduction
QuickFit Button: • This is a hotkey to activate the QuickFit function designed for alignment. The QuickFit function contains several pages of common grid • patterns, paper sizes, and photo sizes. See page 1-6 for details. ASUS LCD Monitor MX27U Series... - Page 15 Input Button: • Switch the input source. Close Button: • Exit the OSD menu. Menu Button: • Enter the OSD menu. Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the tables below. - Bluetooth function is OFF: Status Description...
-
Page 16: Quickfit Function
1.5.2 QuickFit Function The QuickFit function contains three patterns: (1) Grid (2) Paper size (3) Photo size. QuickFit has three patterns: Grid pattern: Facilitates designers and users to organize content and layout on one page and achieve a consistent look and feel. Alignment Grid Paper size: Provides users to view their documents in real size on the screen. Letter Letter EXIT Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen. 8x10 ASUS LCD Monitor MX27U Series... -
Page 17: 2.1 Detaching The Base
2.1 Detaching the base To detach the base, perform the following: Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table. Turn the screw counter-clockwise to loosen the screw located at the bottom of the base. -
Page 18: Adjusting The Monitor
• Hold the stand to prevent the monitor from falling while changing its angle. • You can adjust the monitor’s angle from -5˚ to 20˚. -5° to +20° • It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS LCD Monitor MX27U Series... -
Page 19: Osd (On-Screen Display) Menu
OSD (On-Screen Display) menu 3.1.1 How to reconfigure ASUS MX27U Splendid Standard Mode HDMI-1 3840 x 2160 @ 30Hz Scenery mode Standard Mode Theater Mode Game Mode Night View Mode sRGB Mode Reading Mode Darkroom Mode Press the MENU button to activate the OSD menu. -
Page 20: Osd Function Introduction
• Reading Mode: This is the best choice for book reading with SPLENDID™ Video Intelligence Technology. • Darkroom Mode: This is the best choice for a weak ambient light environmen with SPLENDID™ Video Intelligence Technology. ASUS LCD Monitor MX27U Series... - Page 21 In the Reading Mode, the Saturation, SkinTone, ASCR, Contrast, and Color Temp. functions are not user-configurable. Blue Light Filter Reduce the energy level of blue light emitted from LED backlight. ASUS MX27U Blue Light Filter Standard Mode HDMI-1 3840 x 2160 @ 30Hz Level 0...
- Page 22 0 to 100. • Color Temp.: Select the desired color temperature. Available options: Cool, Normal, Warm, and User Mode. • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. • Skin Tone: Select the desired skin color. Available options: Reddish, Natural, and Yellowish. ASUS LCD Monitor MX27U Series...
- Page 23 “Overscan”. • 4:3 is only available when input source is in 4:3 format. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0~100. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function.
- Page 24 HDMI-1 3840 x 2160 @ 30Hz Volume AudioWizard Bluetooth • Volume: Adjust the volume level. • AudioWizard: Select the preset sound mode. Available options: Music Mode, Movies Mode, Game Mode, and User Mode. • In the User Mode, you can adjust the equalizer settings. ASUS LCD Monitor MX27U Series...
- Page 25 • Bluetooth > On: Allow the monitor to automatically pair and play sound from a Bluetooth capable audio device. ASUS MX27U Sound Standard Mode HDMI-1 3840 x 2160 @ 30Hz Volume On During Standby AudioWizard Off During Standby Bluetooth •...
-
Page 26: Input Select
Input Select Select the input source. ASUS MX27U Input Select Standard Mode HDMI-1 3840 x 2160 @ 30Hz HDMI-1 HDMI-2(4K@60Hz) DisplayPort ASUS LCD Monitor MX27U Series... -
Page 27: System Setup
System Setup Adjust the system configuration. ASUS MX27U System Setup Standard Mode HDMI-1 3840 x 2160 @ 30Hz Splendid Demo Mode DisplayPort Stream ECO Mode OSD Setup Language Key Lock Information More (Page 1/2) ASUS MX27U System Setup Standard Mode HDMI-1 3840 x 2160 @ 30Hz... - Page 28 Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: Disable/Enable the power key. • USB Charging: Enable or disable USB charging in Standby mode. • All Reset: Select YES to revert all settings to the factory default mode. 3-10 ASUS LCD Monitor MX27U Series...
- Page 29 Shortcut Assign the specific function to the two shortcut keys. ASUS MX27U Shortcut Standard Mode HDMI-1 3840 x 2160 @ 30Hz Shortcut 1 Blue Light Filter Shortcut 2 Splendid Brightness Contrast Color Temp. Volume GamePlus Bluetooth (Shortcut 1) ASUS MX27U...
-
Page 30: Gameplus Function
Crosshair, Timer, and FPS function. 3. Press to confirm the function you choose. Press to go back. Press to go off, and exit. GamePlus Main Menu GamePlus - Crosshair GamePlus Crosshair Timer FPS Counter Practice Mode GamePlus - Timer GamePlus - Timer - Position Position GamePlus - FPS - Position Position 3-12 ASUS LCD Monitor MX27U Series... -
Page 31: Specifications
3.2 Specifications Model MX27UQ 27.0 inches diagonal Panel Size (Active Display Area: 596.74(H) x 335.66(V) mm) Max. Resolution 3840 x 2160 Brightness (Typ.) 300 cd/m Contrast Ratio (Typ.) 1000:1 Viewing Angle 178°(V); 178°(H) (CR≤10) Display Colors 1.07B colors, 10Bit (8Bit + A-FRC) Response Time 5ms (G to G) (Typ.) -
Page 32: Troubleshooting (Faq)
• Make sure the computer sound card driver is properly installed and activated. • Check audio source. If the audio source comes from HDMI or DisplayPort, make sure to set the Bluetooth setting to Off. 3-14 ASUS LCD Monitor MX27U Series... -
Page 33: Supported Timing List
Supported Timing List VESA / IBM Modes Support Timing Horizontal Vertical Nominal Resolution Resolution Mode Frequency Frequency Pixel Color (active dot) (total dot) (KHz) (Hz) (MHz) 720 x 400@70Hz 900 x 449 31.469 70.087 28.322 640 x 480@60Hz 800 x 525 31.469 59.940 25.175 640 x 480@72Hz 832 x 520 37.861...
