Shielding

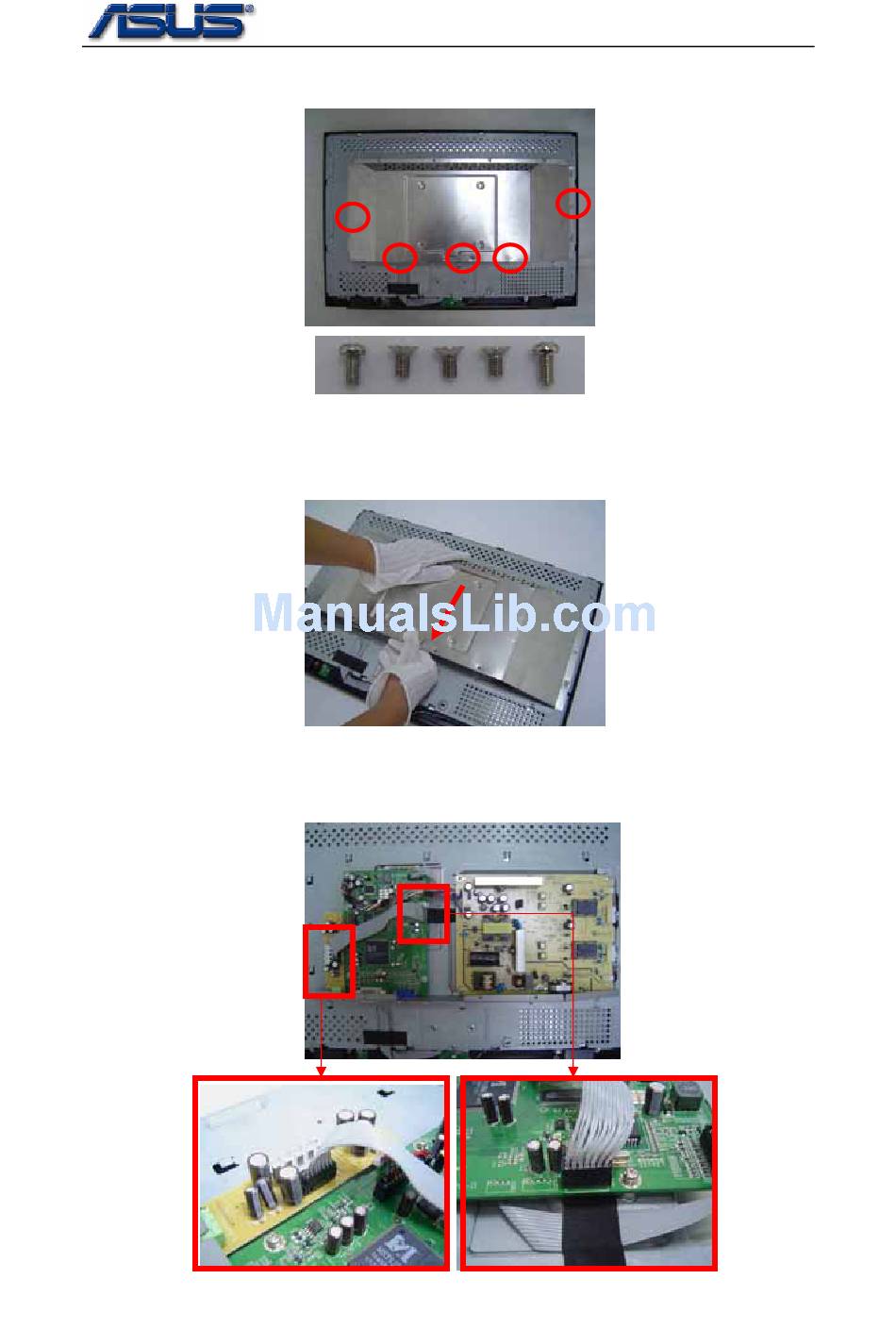

1. Remove 6 screws on the MAIN SHIELDING.
.
2. Pull down to remove MAIN SHIELDING.
Cables
1. Unplug AUDIO CABLE.
