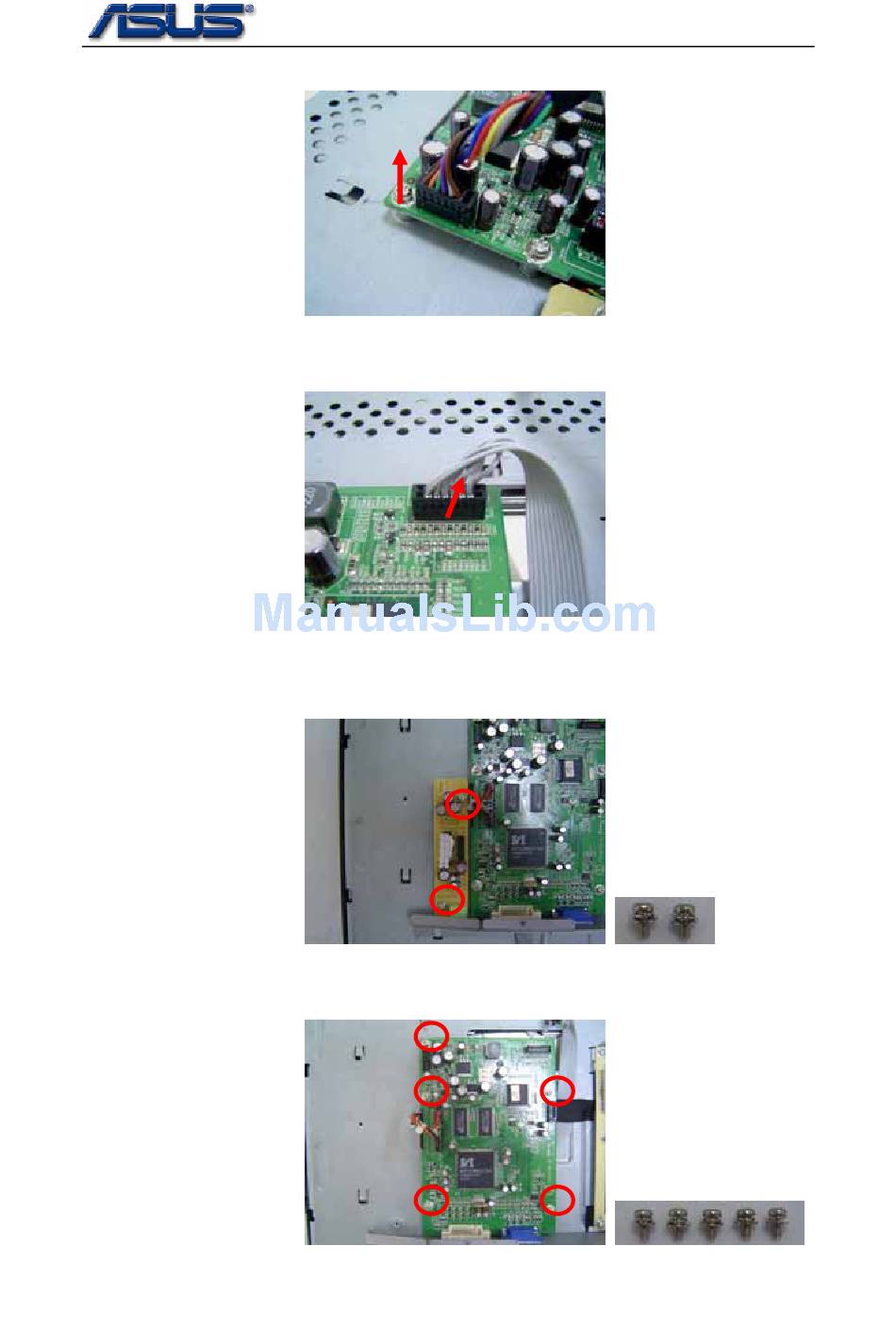

2. Disconnect POWER CABLE with MAIN BOARD.
3. Unplug KEY BOARD CABLE。
Boards
1. Release 2 screws on AUDIO BOARD to dismount.
2. Remove 5 screws on MAIN BOARD.
13
