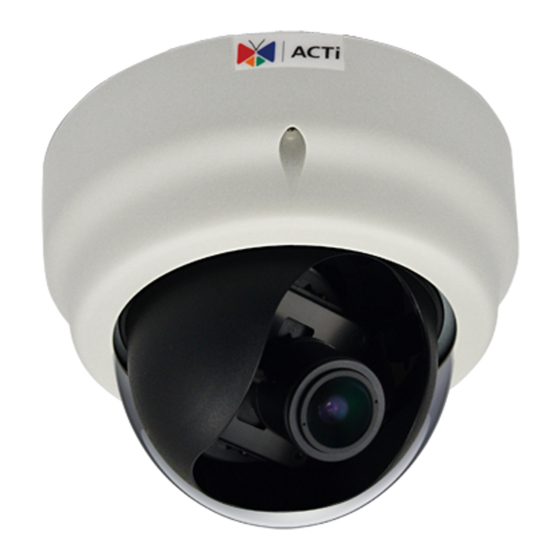

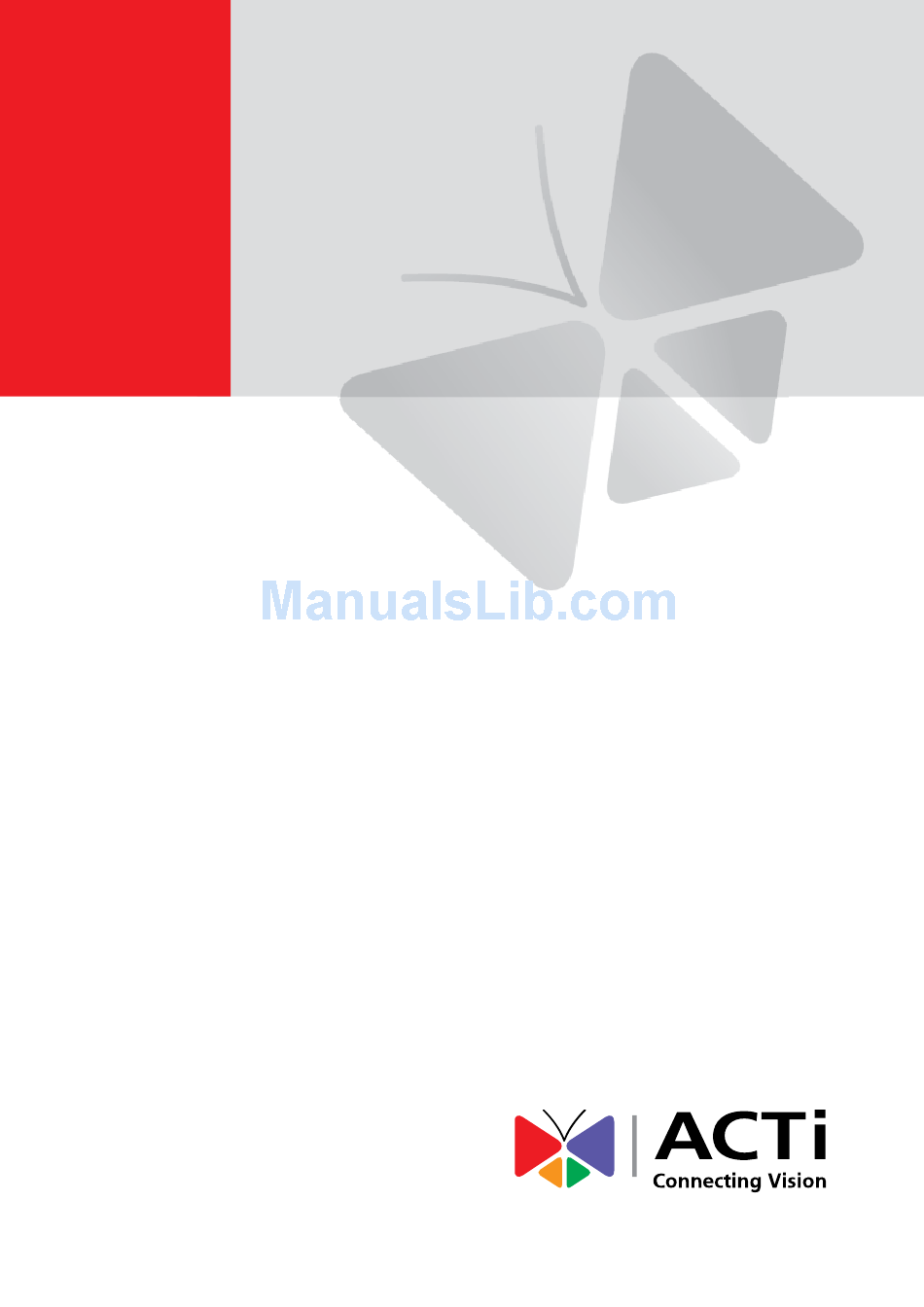

- Page 1 Indoor Dome Series Hardware Manual D61, D62, D64, D65, E61, E62, E63, E64, E65, E66, E67 2014/05/07...
-
Page 2: Table Of Contents
Other Adjustments and Accessories ....20 How to Adjust the Camera Viewing Angle and Focus ......20 D61, D62, E66, E67 Camera Models ............ 20 D64, D65, E61, E62, E63, E64, E65 Camera Models ......22 How to Replace the Dome Cover ............23 How to Use a Memory Card .............. - Page 3 Hardware Manual How to Remove the Memory Card ............26 Accessing the Camera ......... 27 Configure the IP Addresses ..............27 Access the Camera .................. 31 www.acti.com...
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 7: Introduction
3MP Indoor Dome with D/N, IR, Superior WDR, Vari-focal lens 1.3MP Indoor Dome with Basic WDR, SLLS, Vari-focal lens 2MP Indoor Dome with Basic WDR, SLLS, Vari-focal lens From the installation perspective these models are very similar; therefore you can use one manual for all of them. www.acti.com... -
Page 8: Package Contents
Hardware Manual Package Contents Camera Camera (D64, D65, E61, E62, Mounting Screw Kit (D61, D62, E66, E67) E63, E64, E65) Warranty Card Hexagon Screwdriver Quick Installation Guide Drill Template Drill Template www.acti.com... -
Page 9: Physical Description
Hardware Manual Physical Description D61, D62, E66, E67 D64, D65, E61, E62, E63, E64, E65 1) Reset Button The purpose of reset button is to restore the factory default settings of the camera, including the administrator’s password. www.acti.com... - Page 10 Insert a memory card into this slot for local recording purposes. See How to Use a Memory Card on page 26 for more information. NOTE: Supports microSDHC and microSDXC cards. 3) Ethernet Port Connects to a network using an Ethernet cable. www.acti.com...
-
Page 11: Mounting Options
Then, the camera can be installed on the Gang Box Converter. All cables are hidden inside the gang box. PMAX-0803 Pendant Suitable when mounting the camera on hard and high ceilings. Mount PMAX-0101 PMAX-0103 (Straight Tube with Bracket) PMAX-0101 PMAX-0102 (Straight Tube) www.acti.com... - Page 12 Suitable when mounting the camera on vertical poles. Mount PMAX-0101 PMAX-0305 PMAX-0503 Horizontal Suitable when mounting the camera on horizontal poles. Pole Mount PMAX-0101 PMAX-0102 PMAX-0503 Corner Suitable when mounting the camera on a corner wall. Mount PMAX-0101 PMAX-0305 PMAX-0402 www.acti.com...
-
Page 13: Other Mounting Accessories
PMAX-0104 (Extension Tube) NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 14: Installing The Camera On A Surface
If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface. Cable hole If the cables will be routed along the surface, just drill the three (3) screw holes on the surface. 3. Insert the plastic plugs into the screw holes. www.acti.com... -
Page 15: Step 2: Open The Dome Cover
1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover. 2. Lift to remove the dome cover. 3. For D61, D62, E66, E67 models, remove the styrofoam from the camera lens. www.acti.com... -
Page 16: Step 3: Install The Camera To The Surface
1. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera. 2. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface and attach the three (3) supplied screws to secure the camera. www.acti.com... -
Page 17: Step 4: Connect The Cable
Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the camera components. DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation. Step 4: Connect the Cable 1. -
Page 18: Step 5: Access The Camera Live View
1. Turn the dome cover shroud to align to the direction of the lens. 2. Align the screws with the screw holes of the camera. Note that if the cables are routed along the ceiling or wall, route the cable to pass through the cable hole on the dome cover. www.acti.com... - Page 19 Hardware Manual 3. Tighten the three (3) screws to attach the dome cover to the camera body. 4. Remove the plastic covering the dome cover. Final installation should look similar to the illustration below. www.acti.com...
-
Page 20: Other Adjustments And Accessories
Other Adjustments and Accessories How to Adjust the Camera Viewing Angle and Focus This section describes procedures in adjusting the viewing angle, focus, and pan direction of the camera. D61, D62, E66, E67 Camera Models Camera Parts Overview Adjustment Procedures www.acti.com... - Page 21 3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. 4. Move the zoom and focus levers left or right to adjust the focus and the viewing angle. www.acti.com...
-
Page 22: D64, D65, E61, E62, E63, E64, E65 Camera Models
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the screw to fix the pan position. 4. Move the zoom and focus levers left or right to adjust the focus and the viewing angle. www.acti.com... -
Page 23: How To Replace The Dome Cover
To replace the dome cover, do the following: 1. Loosen the three (3) screws to open the dome cover. 2. Remove the three (3) screws to detach the bracket. 3. Remove the bracket and dome cover from the cover housing. www.acti.com... - Page 24 4. Remove the shroud from the dome cover. 5. Place the shroud on the replacement dome cover. 6. Insert the replacement dome cover into the cover housing. 7. Align and attach the three (3) screws to secure the bracket to the cover housing. www.acti.com...
- Page 25 Hardware Manual 8. Attach the dome cover to the camera by tightening the three (3) screws. Final installation should look similar to the illustration below. www.acti.com...
-
Page 26: How To Use A Memory Card
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com... -
Page 27: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that had just connected to the network. www.acti.com... - Page 28 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly notice the camera model in the list.
- Page 29 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 30 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 31: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 32 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
- Page 33 Hardware Manual To check the firmware version through the Web Configurator, access the Setup page and click System > System Info. For further operations, please refer to the Firmware User Manual. www.acti.com...
