Summary of Contents for ACTi D61A

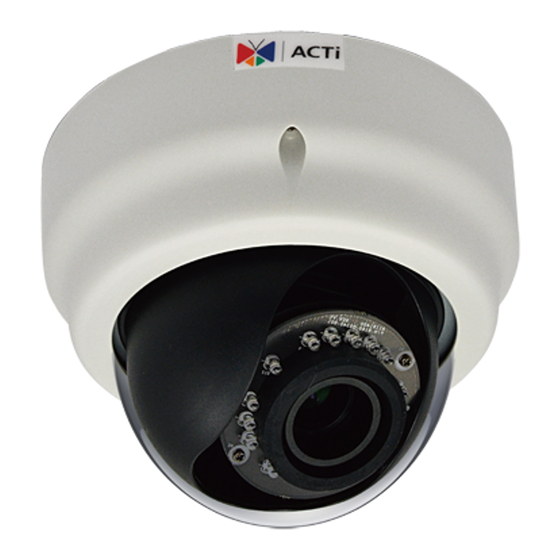

- Page 1 Indoor Dome Series Hardware Manual D61A, D62A, E62A, E65A, E68, E69 2014/04/02...
-
Page 2: Table Of Contents
Step 3: Install the Camera to the Surface ..........20 Step 4: Connect the Cable ..............21 Step 5: Access the Camera Live View ............ 22 Step 6: Adjust the Viewing Angle and Focus ........22 Step 7: Close the Dome Cover ..............22 www.acti.com... - Page 3 Hardware Manual Other Adjustments and Accessories ....24 How to Adjust the Camera Viewing Angle and Focus ......24 D61A, D62A Camera Models ..............24 E62A, E65A, E68, E69 Camera Models ..........26 How to Replace the Dome Cover ............27 How to Use a Memory Card ..............
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 7: Introduction
Hardware Manual Introduction The List of Models This hardware manual contains the following models: D61A 1.3MP Indoor Dome with SLLS, Vari-focal lens D62A 2MP Indoor Dome with SLLS, Vari-focal lens E62A 3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens... -
Page 8: Package Contents
Hardware Manual Package Contents Camera Camera Mounting Screw Kit (D61A, D62A) (E62A, E65A, E68, E69) Terminal Block Drill Template Hexagon Screwdriver (for Audio and DI/DO) Drill Template Warranty Card Quick Installation Guide www.acti.com... -
Page 9: Physical Description
Hardware Manual Physical Description D61A, D62A E62A, E65A, E68, E69 NOTE: Actual camera may slightly differ. www.acti.com... - Page 10 Digital Input (DI) and Digital Output (DO) devices are used in applications like motion detection, event triggering, alarm notifications, etc. See How to Connect DI/Do Devices page 14 and How to Connect Audio Devices on page 17 for more information. www.acti.com...
-
Page 11: Mounting Options
Gang Box Converter. All cables are hidden inside the gang box. PMAX-0803 Pendant Mount Suitable when mounting the camera on hard and high ceilings. PMAX-0101 PMAX-0103 (Straight Tube with Bracket) PMAX-0101 PMAX-0102 (Straight Tube) www.acti.com... - Page 12 PMAX-0305 PMAX-0503 Horizontal Pole Suitable when mounting the camera on horizontal poles. Mount PMAX-0101 PMAX-0102 PMAX-0503 Corner Mount Suitable when mounting the camera on a corner wall. PMAX-0101 PMAX-0305 PMAX-0402 NOTE: More options are available in our website (http://www.acti.com/mountingselector). www.acti.com...
-
Page 13: Other Mounting Accessories
PMAX-0104 (Extension Tube) NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 14: Before Installation
To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations below: Device Mapping Instructions DIO PW Connect the wires of the output device to DIO PW and Digital Output (DO) DIO GND Connect the wires of the input device to DIO GND and Digital Input (DI) www.acti.com... - Page 15 DI/DO device to an external power source. In this case, wire the connection as below. Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to connect a DO device. See wiring scheme below: www.acti.com...
- Page 16 The illustration below is a graphic example of connecting a relay to a high voltage DO device. 110V-220V AC External Power Source Relay (DO1 Device) Camera Illuminator NOTE: For more information on DI/DO connections, please refer to the Knowledge Base article All about Digital Input and Digital Output downloadable from the link below (http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001). www.acti.com...
-
Page 17: How To Connect Audio Devices
Connect the wires of the audio input device to Audio Input (A1) AI_GND and A_IN. A_IN NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base article How to Use Audio-in of ACTi Cameras, downloadable from the link below (http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003). www.acti.com... -
Page 18: Installing The Camera On A Surface
If the cables will pass through the surface, drill the cable hole and the three (3) screw holes on the surface. Cable hole If the cables will be routed along the surface, just drill the three (3) screw holes on the surface. 3. Insert the plastic plugs into the screw holes. www.acti.com... -
Page 19: Step 2: Open The Dome Cover
1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover. 2. Lift to remove the dome cover. 3. For D61A and D62A, remove the styrofoam covering the camera lens. www.acti.com... -
Page 20: Step 3: Install The Camera To The Surface
1. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot of the camera. 2. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface and attach the three (3) supplied screws to secure the camera. www.acti.com... -
Page 21: Step 4: Connect The Cable
Since electric screwdrivers vary in sizes, speed, and force, they may bruise and damage the camera components. DISCLAIMER: ACTi will not be responsible for camera damage caused by improper installations or the misuse of equipment for installation. Step 4: Connect the Cable 1. -
Page 22: Step 5: Access The Camera Live View
1. Turn the dome cover shroud to align to the direction of the lens. 2. Align the screws with the screw holes of the camera. Note that if the cables are routed along the ceiling or wall, route the cable to pass through the cable hole on the dome cover. www.acti.com... - Page 23 Hardware Manual 3. Tighten the three (3) screws to attach the dome cover to the camera body. 4. Remove the plastic covering the dome cover. Final installation should look similar to the illustration below. www.acti.com...
-
Page 24: Other Adjustments And Accessories
This section describes procedures in adjusting the pan direction of the camera, as well as the viewing angle and focus, if necessary since the camera comes with the focus and viewing angle already pre-fixed. D61A, D62A Camera Models Camera Parts Overview Adjustment Procedures... - Page 25 4. If the focus needs to be adjusted, turn the zoom and focus lever counter-clockwise to loosen them. Then move the zoom and focus levers left or right to adjust the focus and the viewing angle. www.acti.com...
-
Page 26: E62A, E65A, E68, E69 Camera Models
4. If the focus needs to be adjusted, turn the zoom and focus lever counter-clockwise to loosen them. Then move the zoom and focus levers left or right to adjust the focus and the viewing angle. www.acti.com... -
Page 27: How To Replace The Dome Cover
To replace the dome cover, do the following: 1. Loosen the three (3) screws to open the dome cover. 2. Remove the three (3) screws to detach the bracket. 3. Remove the bracket and dome cover from the cover housing. www.acti.com... - Page 28 4. Remove the shroud from the dome cover. 5. Place the shroud on the replacement dome cover. 6. Insert the replacement dome cover into the cover housing. 7. Align and attach the three (3) screws to secure the bracket to the cover housing. www.acti.com...
- Page 29 Hardware Manual 8. Attach the dome cover to the camera by tightening the three (3) screws. Final installation should look similar to the illustration below. www.acti.com...
-
Page 30: How To Use A Memory Card
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware manual for more information). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com... -
Page 31: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera model that had just connected to the network. www.acti.com... - Page 32 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly notice the camera model in the list.
- Page 33 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 34 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 35: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 36 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
- Page 37 Copyright © 2014, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
