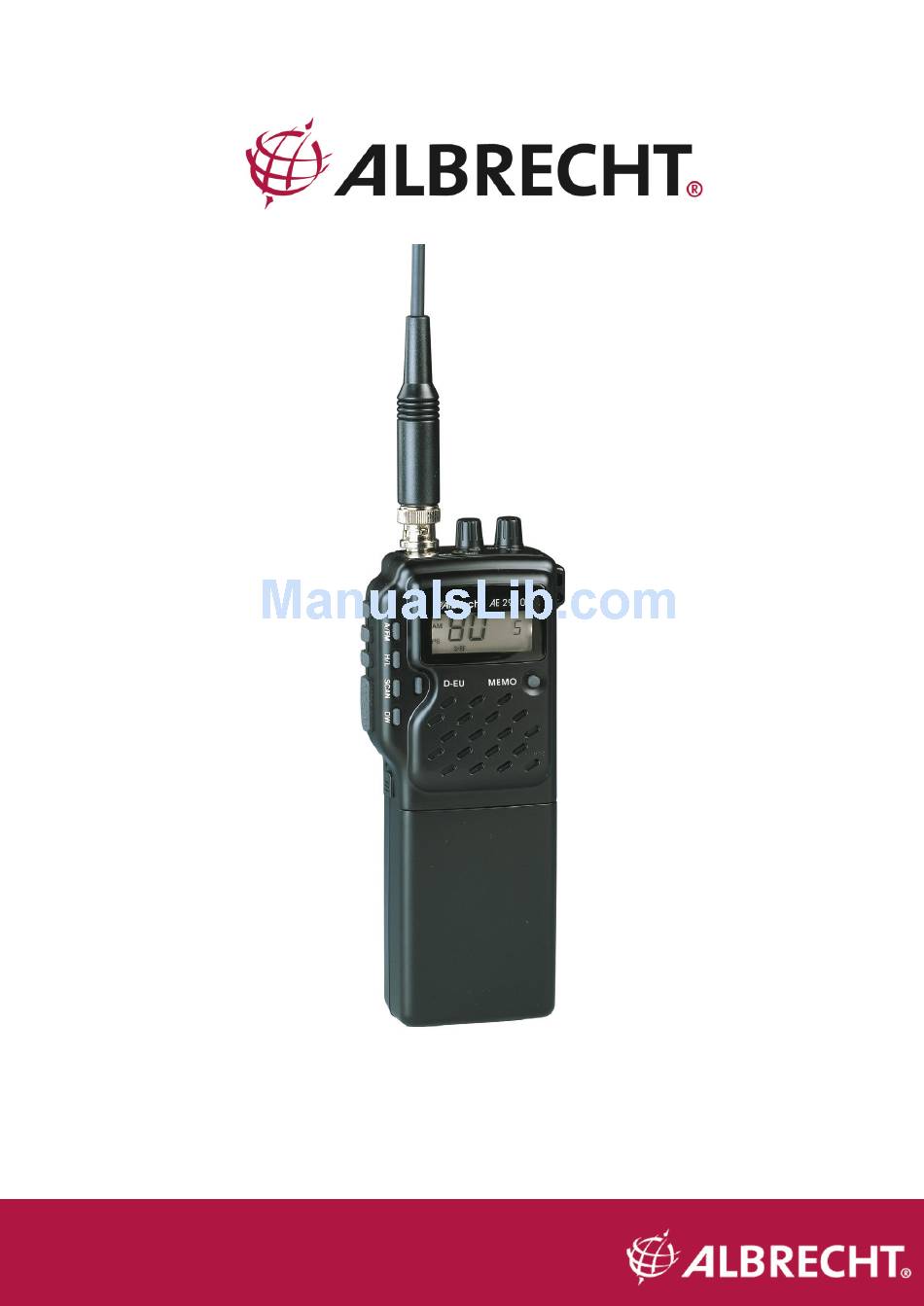

- Page 1 CB Radio AE 2980 Downloaded from www.cbradio.nl...

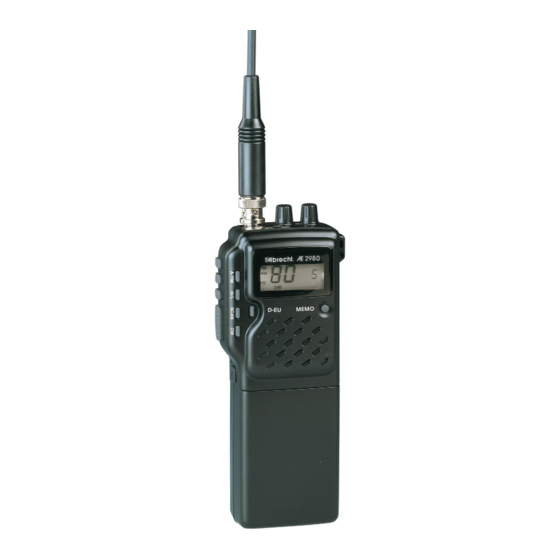

- Page 2 Introduction The ALBRECHT CB- Radio AE 2980 has been produced according to the latest European Standards like EN 300 135 -2 und EN 300 433-2 and offers: switchable country settings between 80 channels FM/ 12 channels AM or 40 channels FM / 40 channels AM...
- Page 3 Accessories Supplied The AE 2980 comes with following accessories: Empty battery compartment for 9 pcs NiMH rechargeable batteries or heavy duty Alkaline batteries (AA) Plug in- antenna with BNC-connector Carrying strip User Manual Optional Accessories (separate available) • Reserve- empty battery case (Nr. 10103) •...
- Page 4 Insert Alkaline or NiMH Batteries Before use, place 9 pcs of AA size Alkaline batteries or fully charged NiMH rechargeable batteries into the battery compartment. Unlock the battery case by pushing the lock on the left cabinet side to the top side of the radio. Push the battery case to the right side and remove it from the radio.
- Page 5 Use of DC cables (optional) Our DC cables and adaptors are only designed for operating the radio in a car or truck. They cannot be used to recharge the batteries inserted in the battery compartments. The DC cable connects to the DC socket on the side of the battery pack (inner contact + and outer contact -) It is technically not possible to charge the radio with inserted NiMH batteries from 12 V DC.
- Page 6 Notes to CB regulations in Europe Your Albrecht AE 2980 is a CB radio according to European Standards EN 300 135-2 / EN 300 433-2. With EU regulations and bilateral agreements it is possible to use this radio (latest information January 2009) in following countries:...
- Page 7 Before first use: Set SQ (Squelch) to left counterclockwise position Set VOL (Volume, Power) in a medium position The Power switch is combined with the Volume potentiometer. A click sound in counterclockwise position remembers that the radio is off. Please adjust the desired volume after switching the radio on. The Display will show the icons for a short test.
- Page 8 S-Meter / Power There is a bar graph display for the signal strength of the received signals. More bars = higher input signals. A strong signal with S 9 + 30 will show full deflection. The bar graph is used for Power meter as well.
- Page 9 Channel SCAN The AE 2980 has an automatic Scanning function, where all 40 (80) channels or your MEMO channels can be subsequently checked for activity. First select between normal operation (channels) or MEMO mode.
- Page 10 SCAN Start • Press SCAN shortly. • In the display SCAN will appear. The automatic search procedure will start after a short delay and checks all channels in rising sequence. • If the circuit detects a signal on one of the channels, the scanner will stop there and you can listen for some seconds to the communication.
- Page 11 Transmit and correct Microphone use For transmitting you use the Push-To-Talk, PTT key on the left cabinet side - press PTT to transmit display shows TX - release button after talking- radio will switch back to reception mode. Speaking into the built-in microphone: Use a distance of 5-10 cm and speak with moderate voice (do not cry!) The modulation amplifier is sensitive enough and allows some variation of speach volume and distances.
- Page 12 Today headsets have impedances of 32 Ohms or more. Such headsets do not provide too much acoustical power to the ears and can be used without problems. All ALAN and ALBRECHT speaker mics have such earphones. There is common ground connection together with the mic socket, the maximum allowed cable length may be up to 3 metres.
- Page 13 The crossed trash bin symbol on the radio shall remember you! © Alan Electronics GmbH (January 2009) Daimlerstr. 1 k D - 63303 Dreieich Service- Fax: 06103 - 948160 Repairs and Spare Parts 06103 - 948122 e-mail: service@alan-electronics.de Homepage: www.alan-electronics.de, www.albrecht-online.de Service-Download www.hobbyradio.de, www.alan-albrecht.info...
- Page 14 Short Form Manual AE 2980 The most important Functions Batteries: insert 9 pcs Mignon Type (=AA) heavy duty Alkaline Batteries or NiMH rechargeable batteries into battery compartment. Open battery compartment on top side by thumbnail or coin. Observe polarity markings. Charging only with...
-
Page 15: Alan Electronics Gmbh
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 2980 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und... -
Page 16: Albrecht Radio Passport
Albrecht Radio Passport The following programming and operation rules are valid for your AE 2980 (as of January 2009) in the countries, which apply the R&TTE Directive: Country Programming License and Charges Operating with licence/charges or restrictions Austria 40 FM Radios with country switches are not allowed to be used in Austria.
