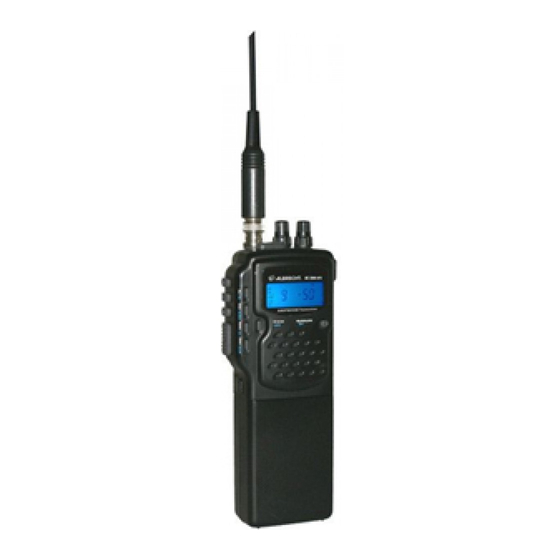

Albrecht AE 2990 AFS Manual
Handheld multi mode features
Hide thumbs
Also See for AE 2990 AFS:
- User manual (44 pages) ,
- Service manual (14 pages) ,
- Manual (20 pages)
Advertisement
Table of Contents

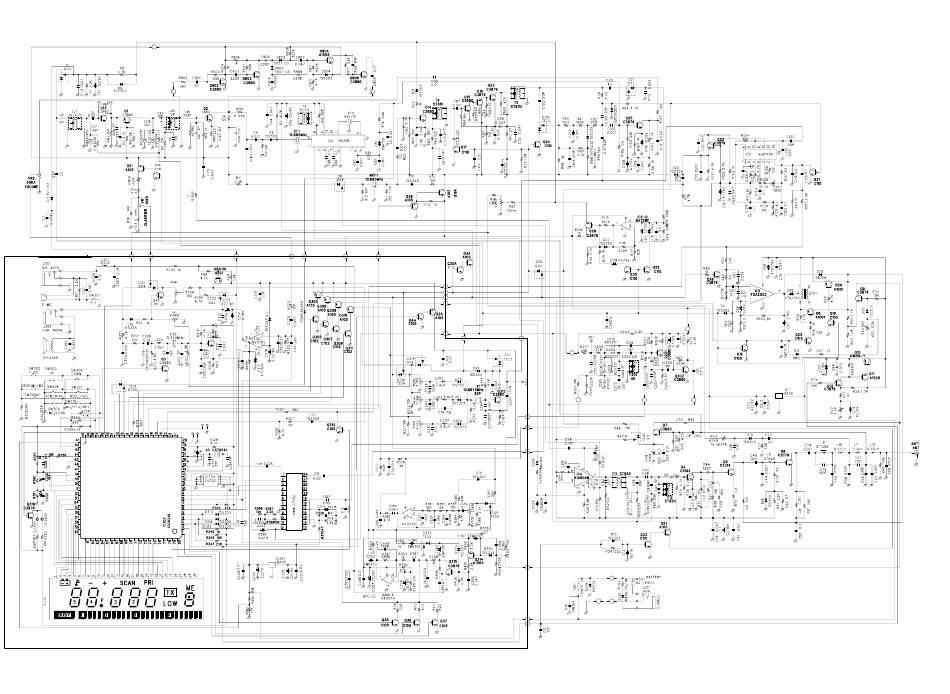

- 1 Schematic Diagram
- 2 PCB Views
- 3 General Specification
- 4 Electrical Specification
- 5 Multi Mode Channel Conversion
- 6 Codes and Its Corresponding Mode Channel
- 7 Channel Conversion Option for CB: Codes
- 8 Channel Conversion for Radio Amateurs: Codes 1 to Code: US
- 9 Locking the Radio to any Desired Code
- 10 Frequency Coverage List
- 11 Memory Programming “M1 to M5”
- 12 Memory Recall “M1 to M5”
- 13 Modifications for Amateur Radio Use
- Download this manual
Advertisement
Table of Contents
Related Manuals for Albrecht AE 2990 AFS
Summary of Contents for Albrecht AE 2990 AFS
- Page 8 AE 2990 AFS GENERAL SPECIFICATION AM/FM TRANSMITTER RF POWER OUTPUT AM 4.0 WATTS FM 4.0 WATTS MODULATION CAPABILITY AM 85%, FM 2KHz SPURIOUS & HARMONIC SUPPRESSION LESS THAN –37 dBm below 1 GHz, less than -54 dBm within the radio/ TV...
- Page 9 ELECTRICAL SPECIFICATION GENERAL CHANNELS AM. FM. USB. LSB 40CH EMISSION TYPE : USB. LSB (J3E). AM(A3). FM(F3E). CONTROLS : POWER ON/OFF VOLUME. CLARIFIER VOLUME FUNC.ML/MS, SCAN/MSCAN, MODE/H.L, STEP/CH FREQ, CH9.19/LOCK , RPT, BEEP,RGB, CALL , RIGHT, +/- SHIFT, RF-G / MIC-G./SQUELCH UP. DOWN. PTT. JACKS : ANTENNA.
- Page 10 TRANSMITTER UNIT NOMINAL LIMIT 1. RF POWER OUTPUT (NO MODULATION) 3.6 – 4.3 3.6 – 4.3 3.6 – 4.3 2. FREQUENCY TOLERANCE (25ºC) 3. MODULATION 100% CAPABILITY ( POSITIVE / NEGATIVE ) 85/90 80/80 1.6-2.0 4. SPURIOUS EMISSION (2nd / 3rd -7th) -55 dBm -54 dBm -55 dBm...
- Page 11 RECEIVER UNIT NOMINAL LIMIT 1. MAXIMUM SENSITIVITY 0.25 0.25 2. SENSITIVITY FOR 10dB S+N/N 0.25 0.25 3. SQUELCH SENSITIVITY AT THRESHOLD SQUELCH SENSITIVITY AT TIGHT 0.32 – 32 4. AGC FIGURE OF MERIT (50mV FOR 10dB CHANGE IN AUDIO OUTPUT) 5.
- Page 12 AE 2990 AFS Handheld Multi Mode Features . Multi Mode Channel Conversion: A. Codes and its Corresponding Mode Channel Code1: HAM BAND (AM/FM/SSB 4W) Code 2: 12M (AM/FM/SSB 4W) Code 3: 450ch. (AM/FM/SSB 4W) Code 4: 450ch. (AM/FM/SSB 4W “0” Raster 0 Raster) Code d: Germany (80 FM4W;...
- Page 13 C. Channel conversion for radio amateurs: codes 1 to Code: US • Turn OFF the unit • Temporarily remove the rubber cover above the PTT button. Below the PTT switch that found inside the PTT button there are three terminals provided for conversion.
- Page 14 2. Frequency Coverage List: Code 1: (10 m Band) 28.000 to 29.690 MHz Code 2: (12m Band) 24.890 to 24.990 MHz Code 3: (454ch.) 25.165 to 29.655 MHz Code 4: (454ch.PL) 25.160 to 29.650 MHz Code d: (Germany 80ch.) 26.565 to 27.405 MHz Code: EU,US &...
- Page 15 *Frequency display is not necessary for UK mode Channel Conversion option of Code: d, EU, E, PL, U and US AE 2990 AFS only Modifications for Amateur Radio use 1. Turn Off the unit (Volume switch off) 2. Press ML/MS button & hold General: The radio is shipped as CB radio with factory pre- 3.
- Page 16 Code US: USA 40 Kanäle mit AM/SSB 4W, ohne FM *Frequenz Display ist in GB / UK nicht notwendig AE 2990 AFS Umstellprozedur für Codes: d, EU, E, PL, U und US 1. Gerät ausschalten Off Modifikationen für Amateurfunkbetrieb 2. ML/MS drücken und gedrückt halten 3.
