Summary of Contents for Albrecht AE 6890

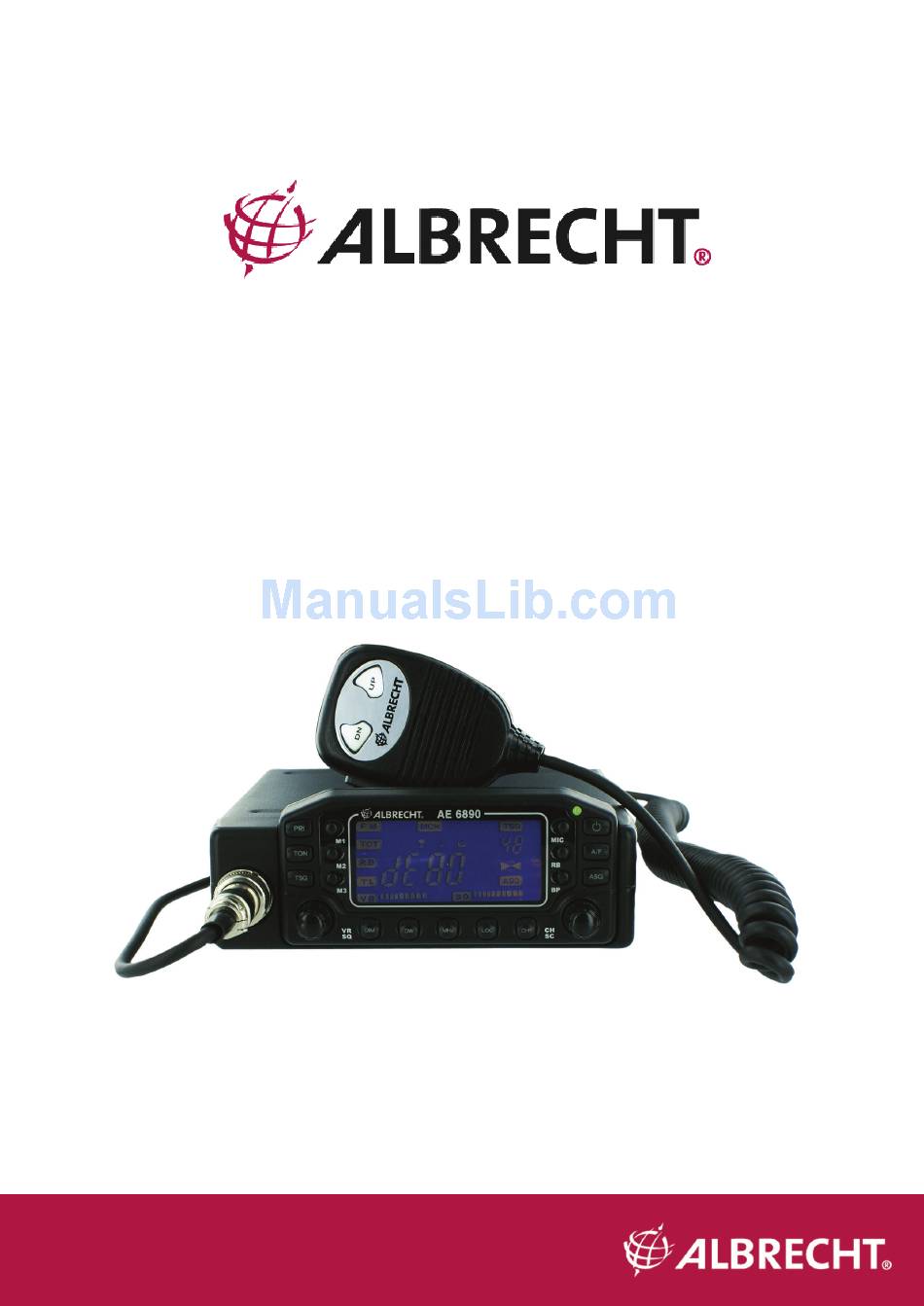

- Page 1 CB RADIO Operating Manual AE 6890 Instrucciones breves AE 6890 Aide-mémoire AE 6890...
-
Page 2: Table Of Contents
Index Introduction Accessories included Installation of the radio Power supply connection Replacing a fuse Antenna connection / Rear panel Installation instructions of the vehicle manufacturers Legal Information CE-label Safety Precautions Front view / Operation Country-programming Most important functions Receiving Switching on and adjusting volume Selecting the operating channel Adjusting squelch (muting) AM-FM mode switch... -
Page 3: Introduction
Introduction Congratulations to your new CB-Radio AE 6890. This CB-Radio from our Heavy Duty series is an extremely solid and robust made radio and is allowed nearly all over Europe (except Austria, there you are only allowed to use a special programmed FM version), which you can program fitting to the country in which you want to use this radio. -
Page 4: Installation Of The Radio
Installation of the radio You can either operate your ALBRECHT AE 6890 in the car or at home as a base station. For installation as a mobile station in the car, a mobile mounting set is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 5: Power Supply Connection
Power supply Your AE 6890 receives power from the 2 pin fixed power cable. The red and black wires in the cable are for the power supply. The cable has a looped-in fuse. You can choose from two methods when connecting to the power supply (red and black):... -
Page 6: Replacing A Fuse
Never exceed the upper voltage limit under no circumstances! The transmitting stages for your AE 6890 are electronically stabilised, and therefore it is impossible to increase output by means of excessive supply voltage. Such attempts may lead to serious damage to the... -
Page 7: Antenna Connection / Rear Panel
Ext. S-Meter 12 V cable Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 6890. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. CB specialists do that job with a standing wave (SWR) meter to check and adjust the aerial. -
Page 8: Installation Instructions Of The Vehicle Manufacturers
EU and also regulates the bringing into circulation and the use of radio installations. So the ownership and the trade with proper labelled devices such as the AE 6890 in the EU and some other (not EU-) countries, who accept the R&TTE Directive, allowed, while for the use of radio installations there are still different rules, depending on the programming and the country. -
Page 9: Safety Precautions
Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 6890 when the traffic situation enables it to be used safely. -
Page 10: Front View / Operation
Operation Power, AM-FM, Priority Channel, LCD Channel & Auto-Squelch, Memory Channels, Status Display Mic-Gain and Audio Filter and Beep Tones CTCSS Single Function Buttons Volume and Squelch Rotary control Dimmer – Dual Watch – Frequency - Local/DX - Channel 9 Rotary Knob Channel and Scan Channel Display... -
Page 11: Most Important Functions
Austria, you are allowed to let your CB radio installed as it is, but you are not allowed to use it. For customers in Austria, we supply a CEPT version AE 6890 FM without selectable countries on request. Also authorized distributors can modify an existing standard model into AE 6890 FM version for Austria. -
Page 12: Selecting The Operating Channel
Selecting the operating channel • with Up or Down buttons on the microphone or the rotary knob on the radio You can continuously select channels. The present channel is displayed. • Press the respective button longer to run up or down through the channels. The present channel is displayed. -
Page 13: Direct Channel Access And Special Channels
You share one channel common for transmit and receive, and also your transmitter and the receiver(s) on the distant side need a certain time to switch on. The modulation amplifier of your AE 6890 is sensitive enough and enables you in most cases to speak with even more... -
Page 14: Keys On Left Front Panel Side
• The first 38 tones are internationally standardised, the codes from 39 to 48 are additionally possible with other AE 6890 at the distant partner stations only. CTCSS codes are often also described as Sub Channels or Pilot Tone system. -
Page 15: Keys Below The Display
Keys below the Display Toggle switch for the background illumination of the display between 2 brightness levels. Dual Watch: This function is some kind of two channels watch. The radio is switching between the last manually selected channel and the priority channel PRI, so you can watch both channels. -
Page 16: Scan
As soon as you try to switch to a channel between 41 and 80 in AM, the radio automatically switches to the 40 channel AM mode with the channels 1 to 40 (and reverse in the German setting) Both modulation types have their own channel setting, so after a swap you always come back to your last used AM respectively FM channel. -
Page 17: External Sockets
UP and Down from the microphone, the socket has a special wiring at Pin No. 4 only valid for this and similar Albrecht transceivers. Apart from the hand microphone included in the package, you can also hook up other microphones, with or without preamplifier, or with or without selective calling devices. -
Page 18: Internet Link Addresses
Furthermore we afford you 3 years manufacturer’s warranty for the AE 6890. Exempt from this warranty are transmitting power amplifiers and illumination resources. Our General Terms and Conditions are imperative. -
Page 19: Technical Details
Technical Details Microphone socket wiring For data & PC audio gateways Pin 1 Mic audio Pin 1 Transmit audio Pin 2 PTT-RX (on ground for receiving) Pin 2 Receive audio Pin 3 PTT-TX (on ground for transmit) Pin 3 PTT key Pin 4 up/down key Pin 4... -
Page 20: Short Manual English
Short manual AE 6890 – Fast to the point The most important functions at a glance: Before the first time turning on, programming of the corresponding country settings Programming: hold MHz + POWER key 2 seconds, release POWER and then MHz. -
Page 21: Instrucciones Breves
Instrucciones breves AE 6890 – Rapidez para la tarea Un vistazo a las funciones más importantes Antes de proceder con la programación considere la configuración regional: 80/40 dE Alemania, República Checa (80FM), Eslovaquia (40 FM + CH 70-80) 40/40 EU Bélgica, Bulgaria, Alemania, Finlandia, Francia, GR, Irlanda, Italia, Letonia, Países... -
Page 22: Aide-Mémoire
Aide-mémoire AE 6890 – Droit au but ! Aperçu des fonctions principales Avant la première mise en service, programmation conforme au code du pays : 80/40 dE Allemagne, République tchèque (80FM), Slovaquie (40 FM +CH 70-80) 40/40 EU Allemagne, Bulgarie, Belgique, Espagne, Finlande, France, Irlande, Italie, Lettonie, Pays-Bas, Romania, Pologne, Portugal, Suisse Veuillez respecter les différentes réglementations en matière d’autorisation et... -
Page 23: Declaration Of Conformity
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 6890 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler... -
Page 24: Radio Passport
ALBRECHT RADIO PASSPORT AE 6890 This international standard version and the FM only version of this CB radio complies to the latest European regulations (R&TTE directive and European harmonised standards) and has been notified in the countries according to following table: (as of January 2009), while we also offer special limited country versions only for certain countries on...
