Page 1: Operating Manual

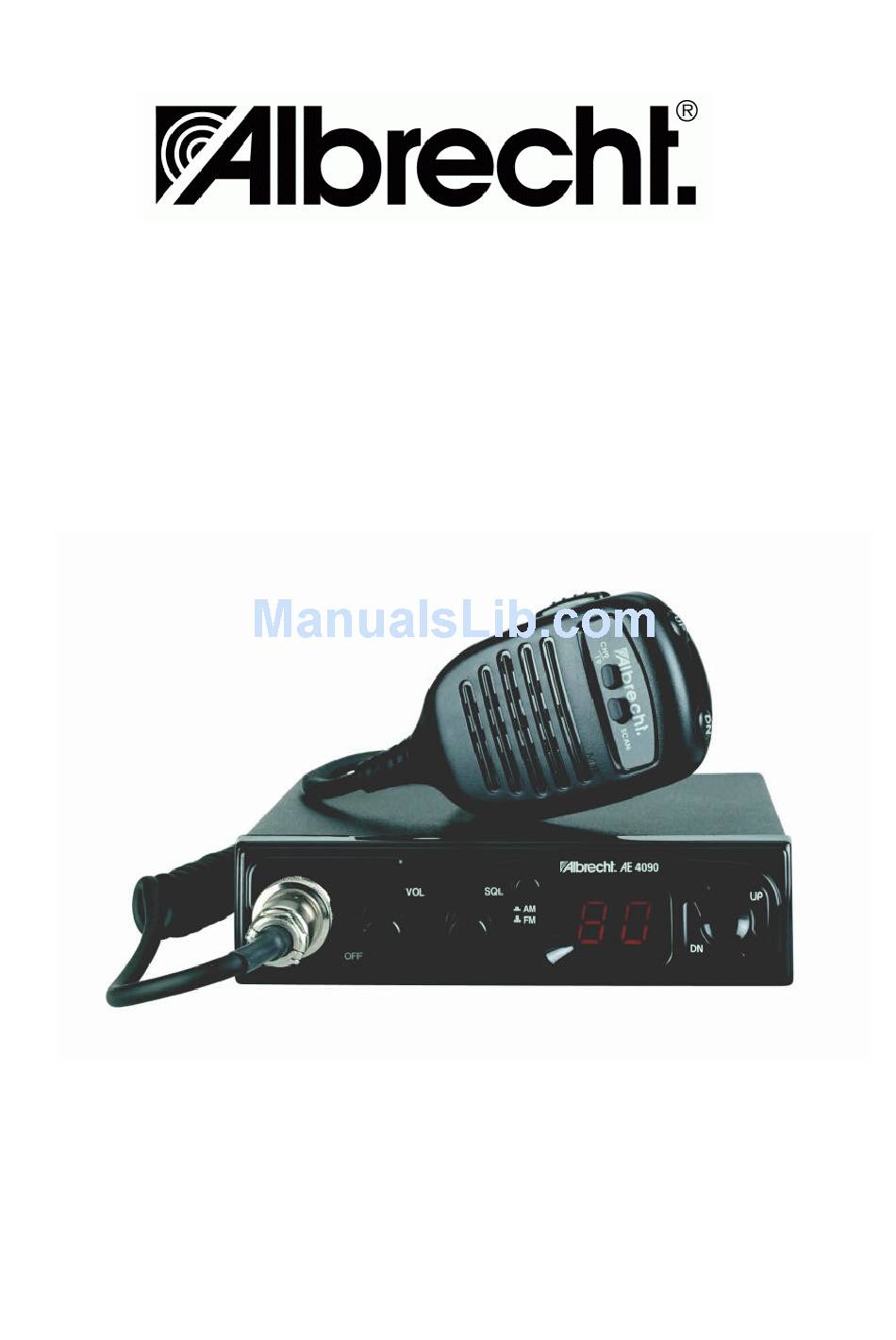

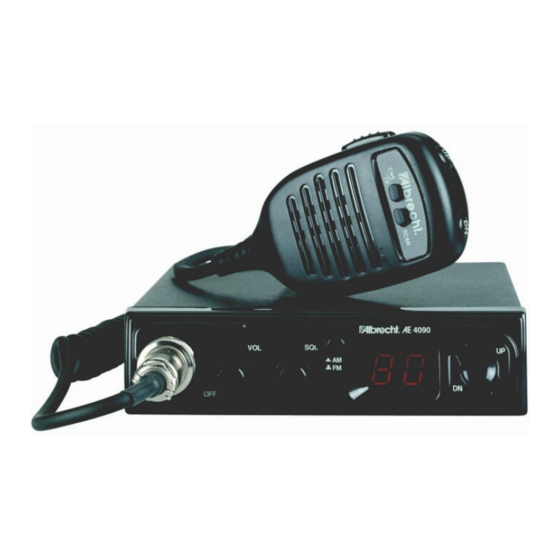

CB RADIO AE 4090 OPERATING MANUAL ALAN Electronics GmbH Dovenkamp 11 D- 22952 Lütjensee www.albrecht-online.de... -
Page 2: Table Of Contents
Special interest channels Direct channel access to CH 9 / 19 Scan mode Transmitting and correct use of microphone External sockets External loudspeaker Microphone socket Service and Warranty informations Legal Information Albrecht Radio Passport Declaration of Conformity Technical Details Service contacts... -
Page 3: Important Note
Important Note Your Albrecht AE 4090 corresponds to the latest European CB standards. As a unique feature, it has a software country switching which allows selecting the operation mode according to the country, where You intend to use the radio. Please... -
Page 4: Accessories Included
Please also take road safety into account! CB Radio (even when only receiving, particularly when volume is turned up) can divert your attention from the road! Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 4090 when the traffic situation enables it to be used safely. -
Page 5: Front View
PL-259 Standard Installation of the radio You can either operate your ALBRECHT AE 4090 in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 6: Power Supply
free leg movement). Take care not to damage any underlying wires during installation! Then insert the radio into the mobile mount device. Secure the set with the large knurled screws (using the enclosed plastic washers) firmly at the required angle. Also mount the microphone hanger using the enclosed screws in an easily- accessible place. -
Page 7: Antenna Connection
Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 4090. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. -
Page 8: Operation
Even if your AE 4090 has a particularly robust transmitter high- level stage which can even withstand mismatching of SWR=3, you should still never transmit without an antenna! Operation Before switching on Turn SQUELCH control left as far as possible Switching on and adjusting volume The on/off switch is combined in the VOLUME control. -
Page 9: Country Switch Setting
To switch to this system Switch the radio off Press Down button and keep button pressed Switch on the radio at the same time Release the button The radio has now switched to AM / FM on all 40 channels. You may select any of these channels and operate in Am or FM. -
Page 10: Selecting The Operating Channel
Selecting the operating channel On the radio set: Up or Down buttons You can continuously select channels. The present channel is displayed. On the microphone: Press the button on the microphone briefly, to switch up or down a channel. Press the respective button longer to run up or down through the channels. The present channel is displayed. -
Page 11: Special Interest Channels
When you switch on the set the first time it operates on FM. Special interest channels There are a few channels which have established themselves for certain purposes: Channel 1 Call channel in FM (Germany only) Channel 9 Call and emergency channel, in Germany particularly this channel is also used by all truck drivers in AM. -
Page 12: Transmitting And Correct Use Of Microphone
Stop channel scan You can stop the scan at any time by pressing the SCAN button a second time. Pressing the transmission button will also automatically stop the scan modus. Transmitting and correct use of microphone With the transmission button (Push To Talk) on the side of the microphone you can switch between receiving and transmitting: Press PTT button to transmit. -
Page 13: Service And Warranty Informations
FAQ’s any time from our server under http://www.albrecht-online.de/service If You should have a problem, please have a look to the service hints or frequently asked questions (FAQ) before You send Your CB radio back to the service center. Please note that the acceptance of AM+FM in the different European countries has just started and may be subject to unpredictable changes. -
Page 14: Legal Information
The version printed in this user manual has been issued in March 2002 ALBRECHT RADIO PASSPORT AE 4090 This CB radio complies to the latest European regulations (R&TTE directive and European harmonised standards) and has been notified in the countries according to following table: (as of March 12, 2002):... -
Page 15: Declaration Of Conformity
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 4090 satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler Frequenzanwendungen einhält:... -
Page 16: Technical Details
48 dB (EN 300 433-1) Image rejection better 48 dB (EN 300 433-1) Audio output power ca. 2 Watt to 8 Ohm load © ALAN Electronics GmbH, March 2002 www.albrecht-online.de Service-Hotline: (+49) 4154 849 180 Service-Fax: (+49) 4154 849 288 e-mail:...
