Summary of Contents for Albrecht AE 4200 R

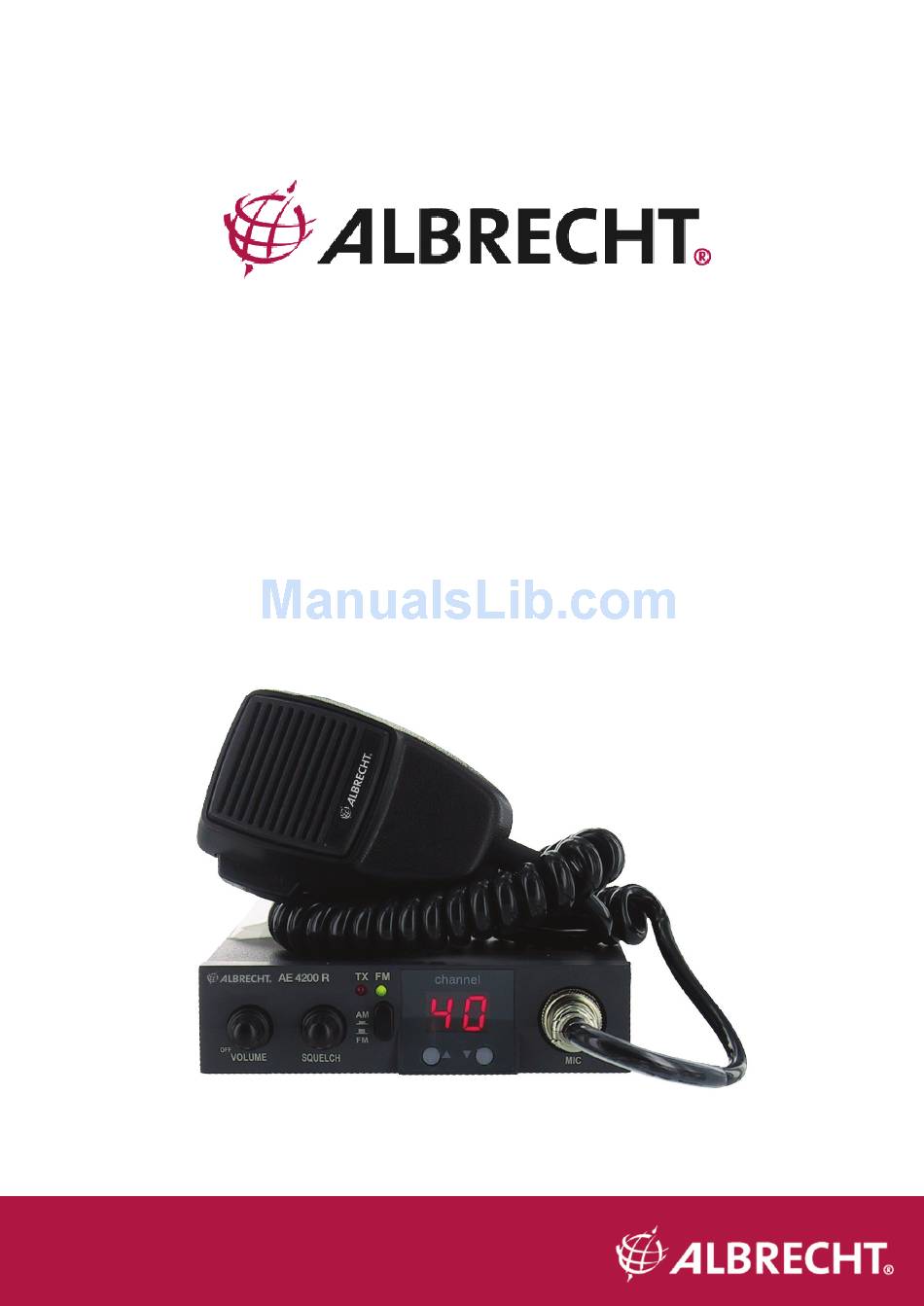

- Page 1 CB RADIO AE 4200 R OPERATING MANUAL...
-
Page 2: Table Of Contents
Selecting the operating channel Adjusting squelch (muting) AM / FM mode switch Special interest channels Transmitting and correct use of microphone External sockets External loudspeaker Microphone socket Service and Warranty informations Technical Details Service contacts Legal Information Albrecht Radio Passport Declaration of Conformity... -
Page 3: Important Note
Important Note Your Albrecht AE 4200 R corresponds to the latest European CB standards. As a unique feature, it has a software country switching which allows selecting the operation mode according to the country, where You intend to use the radio. Please... -
Page 4: Introduction

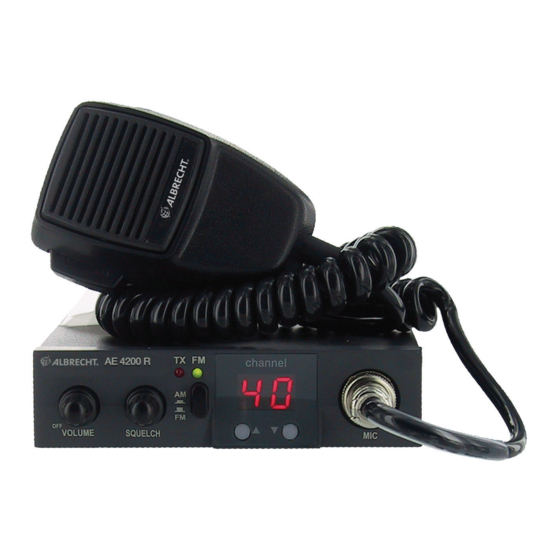

Introduction Your new Albrecht CB Radio AE 4200 R, developed and manufactured in accordance with the latest CB regulations, offers you: • 40 channels FM / 4 watt • 80 channels FM / 4 watt / 40 channels AM / 1 Watt •... -
Page 5: Safety Precautions
Road safety is of course to be given priority! Therefore only use your ALBRECHT AE 4200 R when the traffic situation enables it to be used safely. -
Page 6: Installation Of The Radio
Installation of the radio You can either operate your ALBRECHT AE 4200 R in the car or at home as a base station. For installation as a mobile station in the car, a mobile mount device is enclosed. Mount the set in such a way that it is not exposed to direct sunlight if possible, as this would lead to an increase in the temperature and can decrease the (set’s) working life. -
Page 7: Antenna Connection
Antenna connection Connect your CB antenna to the ANT socket on the rear side of your ALBRECHT AE 4200 R. Most CB antennas must be tuned to best radiation during installation to give highest effective communication range. -
Page 8: Operation
Some antennas, like “Gamma II” (order No. 6725) are broadbanded and do not need any retuning during installations. Even if your AE 4200 R has a particularly robust transmitter high- level stage which can even withstand mismatching of SWR=3, you... -
Page 9: Selecting The Operating Channel
Switching to 80/40 channel system (Germany and Czech Republic only) 80/40 This position is only allowed to be used in Germany and Czech Republic, because no other European country provides the German 80 FM channels. (Note: In Czech Republic please use only FM) No individual licence is necessary, but restrictions are still in force in certain German border regions, where transmitting on channels 41 –... -
Page 10: Adjusting Squelch (Muting)
• Press the respective button longer to run up or down through the channels. The present channel is displayed. Adjusting squelch (muting) Particularly in FM, noise can be a nuisance on a free channel. With the muting control (SQUELCH) You can suppress this noise - but also signals which are too weak to be received properly. -
Page 11: Transmitting And Correct Use Of Microphone
The modulation amplifier of your AE 4200 R is sensitive enough and enables you in most cases to speak with even more distance, depending on how loud your voice is. -
Page 12: External Sockets
3.5 mm jack plug and ensure that none of the loudspeaker connections are attached to the vehicle chassis. Microphone socket Your AE 4200 R has an 4 pin standard microphone socket on the front side. The wiring corresponds to international standards used by many manufacturers since many years. - Page 13 European 2 years warranty The distributor, dealer or retail shop where You bought the radio warrants to the original retail purchaser of this product that should this product or any part of it, under normal use and conditions, be proven defective in material or workmanship within 2 years from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product without charge for parts and repair labor.
-
Page 14: Technical Details
48 dB (EN 300 433-1) Image rejection better 48 dB (EN 300 433-1) Audio output power ca. 2 Watt to 8 Ohm load © Alan Electronics GmbH, April 2008 www.albrecht-online.de Spare Parts and Repair inquiries (+49) 6103-9481-30 Service-Fax: (+49) 6103-9481-60 e-mail: service@alan-electronics.de... -
Page 15: Albrecht Radio Passport
Albrecht Radio Passport AE 4200 R The radio may be used in European Countries only according to following information, which we publish as “Radio Passport”. Because the number of countries allowing the AM standard is changing, the latest version of this radio passport is published on our Internet Web server and may be downloaded any time. -
Page 16: Declaration Of Conformity
Declaration of Conformity / Konformitätserklärung We hereby declare that our product: / Wir erklären hiermit, dass unser Produkt CB-Radio Albrecht AE 4200 R satisfies all technical regulations applicable to the product within the scope of EU Council Directives, European Standards and national frequency applications:/ alle technischen Anforderungen im Geltungsbereich der EU Richtlinien, europäischer Normen und nationaler Frequenzanwendungen einhält:...
