NuTone VX475CC Operating Instructions Manual
Central vacuum power unit
Hide thumbs
Also See for VX475CC:
- User manual (16 pages) ,
- Installation tips & user manual (16 pages) ,
- Installation instructions manual (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for NuTone VX475CC
Summary of Contents for NuTone VX475CC

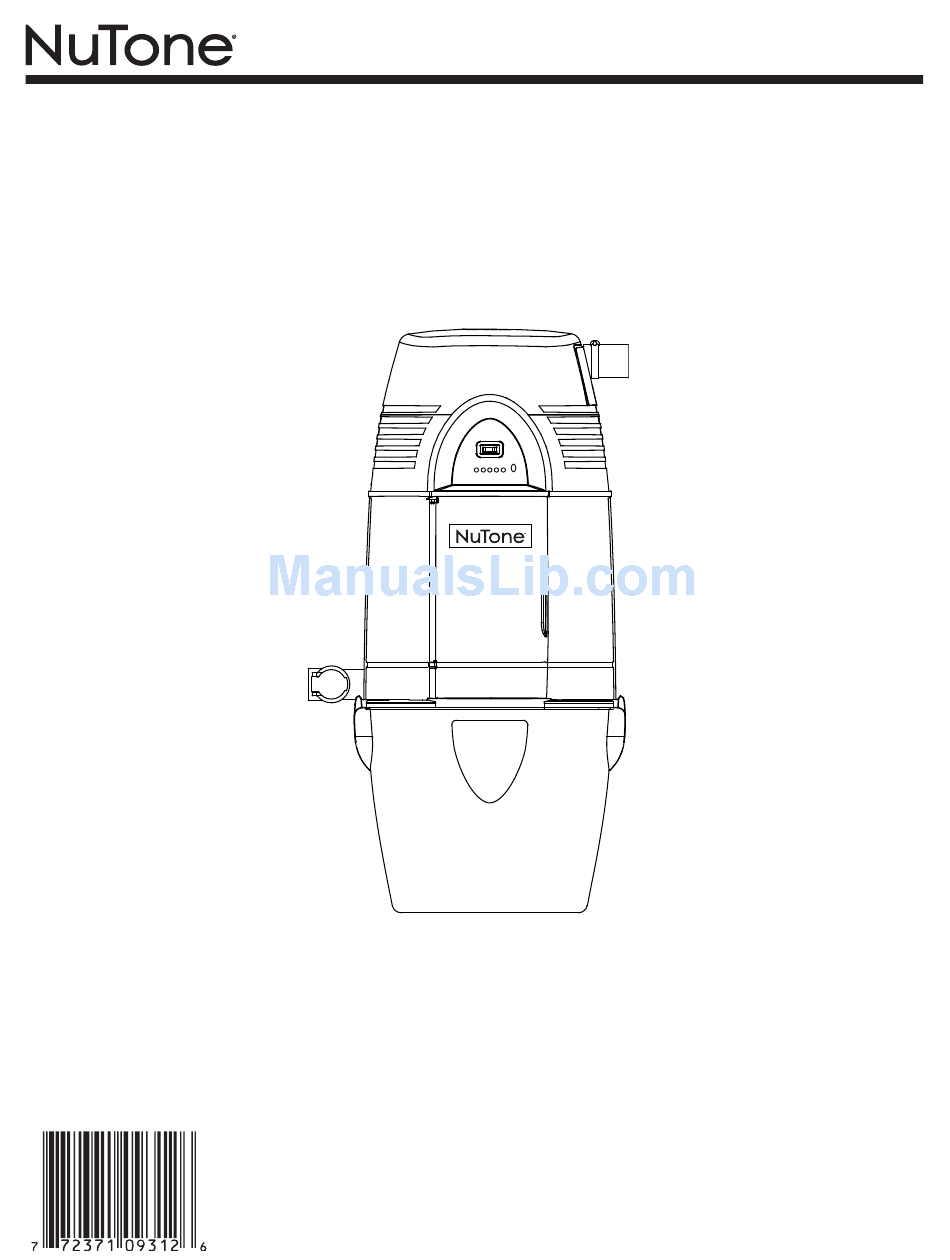

- Page 1 CENTRAL VACUUM POWER UNIT AB0002 For Power Unit NuTone models VX475CC, VX550CC, VX1040CC HOMEOWNER'S OPERATING INSTRUCTIONS Broan-NuTone Canada; Mississauga, Ontario www.nutone.ca 877-896-1119 30042320 rev. F...
-
Page 2: Important Safety Instructions
Under normal • Do not use without filter in place. operation, the light(s) will be green. (A red light on NuTone models VX550CC, VX1040CC indicates a need to empty •... -
Page 3: Vacuum Power Control
(FIGURE 14). Holding the pail by the handles, lower it from unit (FIGURE 15). NuTone model VX475CC has a single indicator light that 2. Carry pail to trash receptacle and empty. remains green. The level of pail fill for this model can be 3. -
Page 4: Troubleshooting Guide
2d.Replace hose as required. 2d.Defective hose. 2e. 1) Push Reset button while unit is engaged OR 2e. Microprocessor lockup. NOTE: This apply only to NuTone VX550CC 2) Unplug unit completely for 60 seconds. & VX1040CC. 2f. Contact your local Service Center. -
Page 5: Internal Wiring Diagrams
5a. Contact your local Service Center VX550CC & VX1040CC units only, all lights on control panel flash when unit is first plugged in. INTERNAL WIRING DIAGRAMS • VX475CC • VX550CC • VX1040CC WHITE BLACK RED OR WHITE BLACK GREEN GREEN GREEN... -
Page 6: Grounding Instructions
This appliance is for use on a standard 120 VAC, dedicated 15-amp branch circuit with a NEMA 5-15R receptacle or a dedicated 20-amp branch circuit with a NEMA 5-20R for NuTone models VX475CC & VX550CC. For NuTone model VX1040CC, a nominal 240VAC, dedicated 20-amp branch circuit with NEMA 6-20R receptacle is required. -
Page 7: Service Parts List
7 SERVICE PARTS LIST (NUTONE MODELS VX475CC, VX550CC ET VX1040CC) AL0001 Key No. Part No. Description VX475CC VX550CC VX1040CC 10941189 Pail assembly VS 10941191 Pail assembly TS 10941192 Door assembly 10941199 Latch kit (with screws) 10941232 VS PCB’s assembly (including mother, daughter and screws)* 10941233 TS1 PCB’s assembly (including mother, daughter and screws)*... -
Page 8: Warranty
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During these time periods, Broan-NuTone Canada will, at its option, repair or replace the power unit or part without charge, which is found to be defective under normal use and service.
