NuTone Performance CV350 Specifications

CENTRAL VACUUM
SYSTEMS

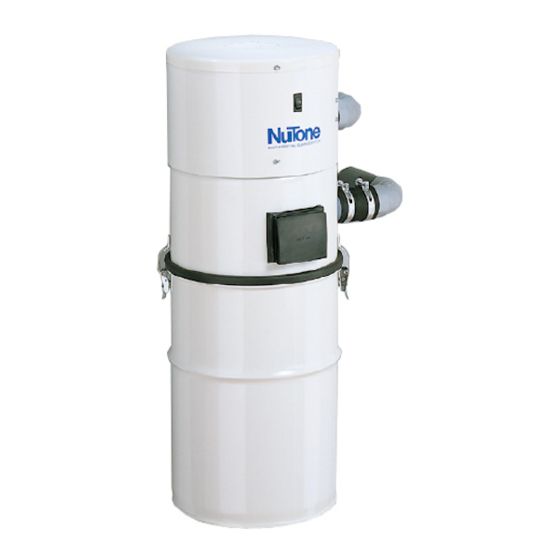

CV350 Power Unit
This mid-size power unit with its single 2-stage motor is
ideal for cleaning small to mid-size homes, up to 3000
square feet. Dual filtration with replaceable paper bag
for neat, easy soil disposal. Six gallon capacity.
Permanent secondary filter protects motor.
FEATURES:
• Single 2-stage bypass motor
• Convenient utility inlet on power unit
• Replaceable bag filtration
• 6-gallon capacity
• UL Listed
• Two Year Warranty
CV350
SPECIFICATIONS:
Motor... . . . . . . . . . . . . . . . . . . . . . . . . . . .2-Stage Bypass
Horsepower . . . . . . . . . . . . . . . . . . . . . . .2
Amperes . . . . . . . . . . . . . . . . . . . . . . . . .10
CFM at 2" opening . . . . . . . . . . . . . . . . .107
Water Lift . . . . . . . . . . . . . . . . . . . . . . . . .113"
Air Watts . . . . . . . . . . . . . . . . . . . . . . . . . .396
Switch & Inlet on Power Unit . . . . . . . . .Yes
Recommended Circuit . . . . . . . . . . . . . .20 amp Dedicated
Primary Filtration . . . . . . . . . . . . . . . . . . .Removable Bag
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . .6 Gallon
Secondary Filtration . . . . . . . . . . . . . . . .Yes
UL Listed . . . . . . . . . . . . . . . . . . . . . . . . .Yes
Housing . . . . . . . . . . . . . . . . . . . . . . . . .White Steel
Tank Dimensions . . . . . . . . . . . . . . . . . .12"Dia. x 30
UPC ... . . . . . . . . . . . . . . . . . . . . . . . . . . .7 84891 77101 9
NuTone Central
Cleaning Systems –
an important part of
Total Indoor Air
Quality...solutions
for today's lifestyles!
1 ⁄ " H
2
