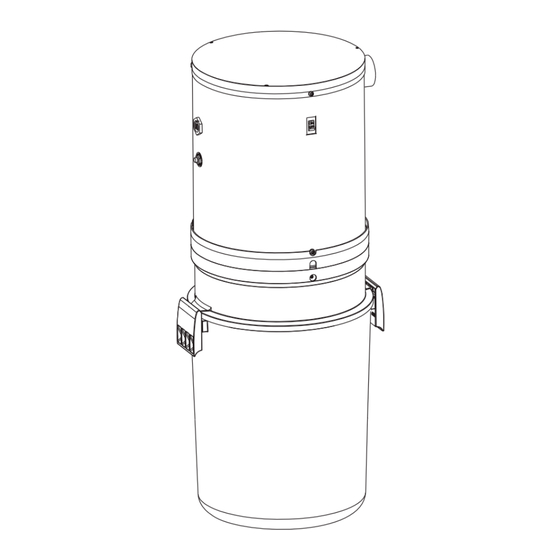

CENTRAL VACUUM KITS
HOUSEHOLD TYPE
!
!
CXKIT400A/HHKIT400A
MODELS NO. SFDB-DD/SFDB-DE
AB0028
HOMEOWNERS OPERATING INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Broan-NuTone Canada Inc.;
Mississauga, Ontario
www.broan.ca
www.nutone.ca
1-888-882-7626
To register this product,
visit www.broan.ca or www.nutone.ca
30042442 Rev. E
Advertisement
Table of Contents
Related Manuals for NuTone SFDB-DD
Summary of Contents for NuTone SFDB-DD
- Page 1 CENTRAL VACUUM KITS HOUSEHOLD TYPE CXKIT400A/HHKIT400A MODELS NO. SFDB-DD/SFDB-DE AB0028 HOMEOWNERS OPERATING INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca www.nutone.ca 1-888-882-7626 To register this product, visit www.broan.ca or www.nutone.ca 30042442 Rev. E...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using an electric appliance, basic precautions should always be followed, including the following: WARNING O REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR PERSONAL INJURY • Do not use on wet surfaces or outdoors. •... -
Page 3: Operation
1. OPERATION The power unit is located away from the everyday living areas of your home — usually in the garage, basement or utility room. Through a network of strong, lightweight tubing, the power unit connects to inlets strategically placed throughout your home. -
Page 4: Bag Replacement
APER RING AO0026 AO0032 AG STOPPER NOTE: A set of 3 replacement bags (model 391C) may be purchased from your local Broan-NuTone Sales Outlet. To locate your nearest Broan-NuTone Sales Outlet, call toll free 1-888-882-7626. - 4 -... -
Page 5: Secondary Filter
SLEEVES AO0033 NOTE: A replacement secondary filter (part no. 10941310) may be purchased from your local Broan-NuTone Sales Outlet. To locate your nearest Broan-NuTone Sales Outlet, call toll free 1-888-882-7626. WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. -
Page 6: Power Unit Installation
6. POWER UNIT INSTALLATION 6.1 LOCATING THE POWER UNIT • Locate the power unit away from the general living area in an accessible location for cleaning and maintenance. • Locate the power unit within 6 feet of a grounded electrical outlet. The power unit requires a 120 VAC power source. - Page 7 6. POWER UNIT INSTALLATION ( ’ CONT ETAINING SCREW LOCATIONS 4. Use the mounting bracket as a template to OUNTING BRACKET mark the position of its screws. Drill the CENTER OPENING upper and lower screw holes into the stud using a 3/16” drill bit. AA0006 5.
-
Page 8: Grounding Instructions
7. GROUNDING INSTRUCTIONS WARNING Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance —... -
Page 9: Accessory Kits
8. ACCESSORY KITS One of the following kit will be included depending on the power unit model: TANDARD ACCESSORY KIT INCLUDING • Multi-Surface brush for carpet, tile, wood and ceramic AA0007 • 30’ Low-voltage crushproof hose with 360° rotating handle. Deluxe hose hanger included AA0008 •... -
Page 10: Vacuum Power Control
8. ACCESSORY KITS ( ’ CONT ’ ELUXE ACCESSORY KIT INCLUDING CONT • Deluxe tool set: - 12” wide hard floor brush with swivel neck - Stainless steel ratchet telescopic wand; from a collapsed length of 25” to an extended length of 41” - Natural bristle upholstery tool - Deluxe square faced dusting brush - 12”... - Page 11 10. TROUBLESHOOTING GUIDE ( ’ CONT ROBLEMS OSSIBLE CAUSES OSSIBLE EMEDY 2. Loss or • The plastic cap is not installed on • Cover the unused inlet opening decrease the unused inlet. with the included plastic cap. of vacuum • Disposable bag is completely full. •...
- Page 12 INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During these time periods, Broan-NuTone Canada will, at its option, repair or replace the power unit or part without charge, which is found to be defective under normal use and service. THIS WARRANTY DOES NOT APPLY TO THE INSTALLATION OR THE PARTS USED IN THE INSTALLED TUBING SYSTEM.
