Installing a Socket-370 Processor
Install a processor into the ZIF (Zero Insertion Force) Socket-370
on the mainboard.

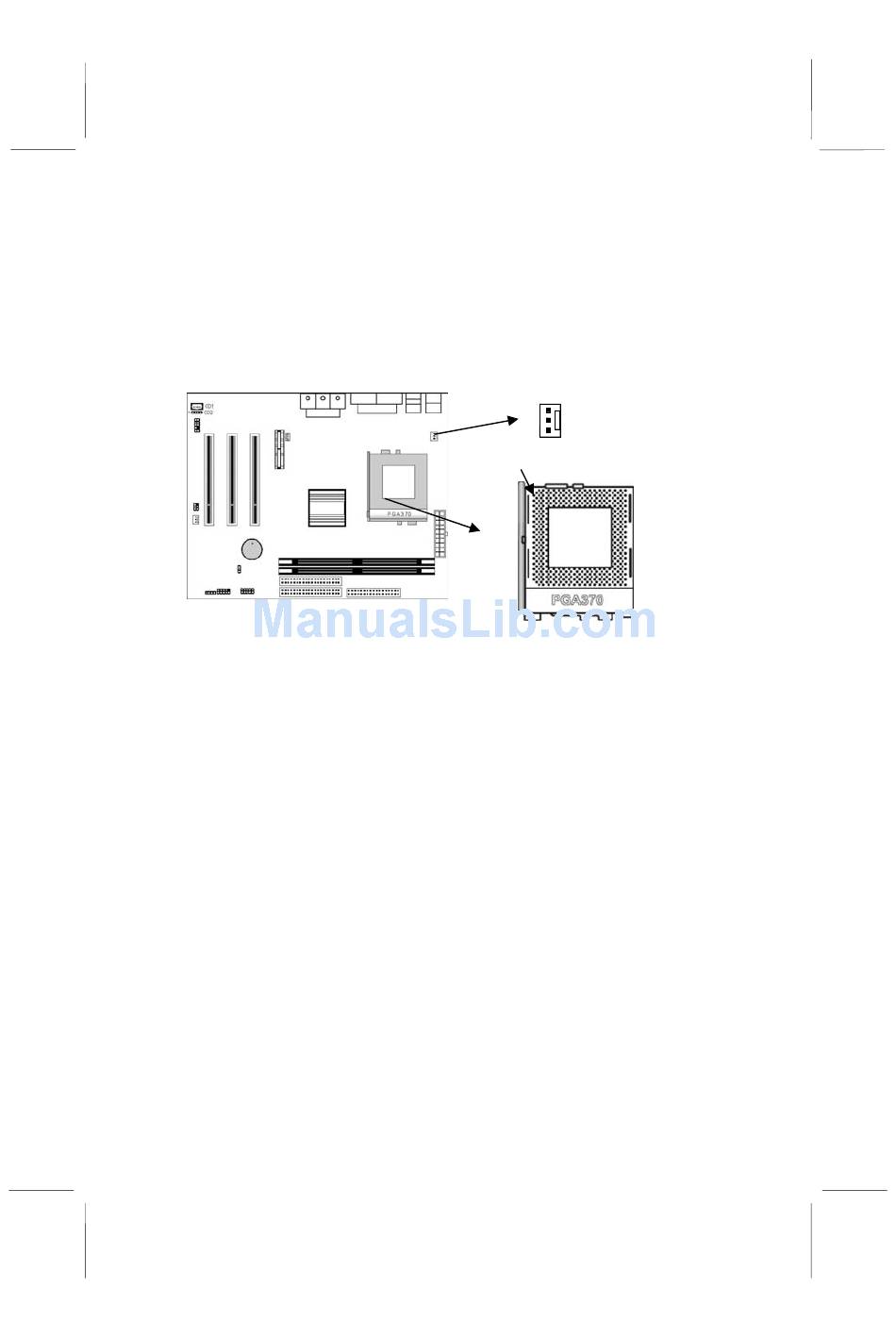

1. Locate the Socket-370 and FAN1. Pull the locking lever out
slightly from the socket and raise it to the upright position.
2. Identify the Pin-1 corner of the processor by its beveled edge.
3. Identify the Pin-1 corner on the Socket-370. The Pin-1 corner
is at the top of the locking lever when it is locked.
4. Insert the processor into the socket matching the Pin-1 corner.
The processor should drop into place freely without force.
5. Push locking lever down and hook it under the catch on the
side of socket. This secures the CPU in the socket.
6. All processors should be installed together with a heatsink
/cooling fan, connecting the cable from the fan to the CPU fan
power connector FAN1.
2: Mainboard Installation
FAN1
Pin-1 Corner
Socket-370
11
