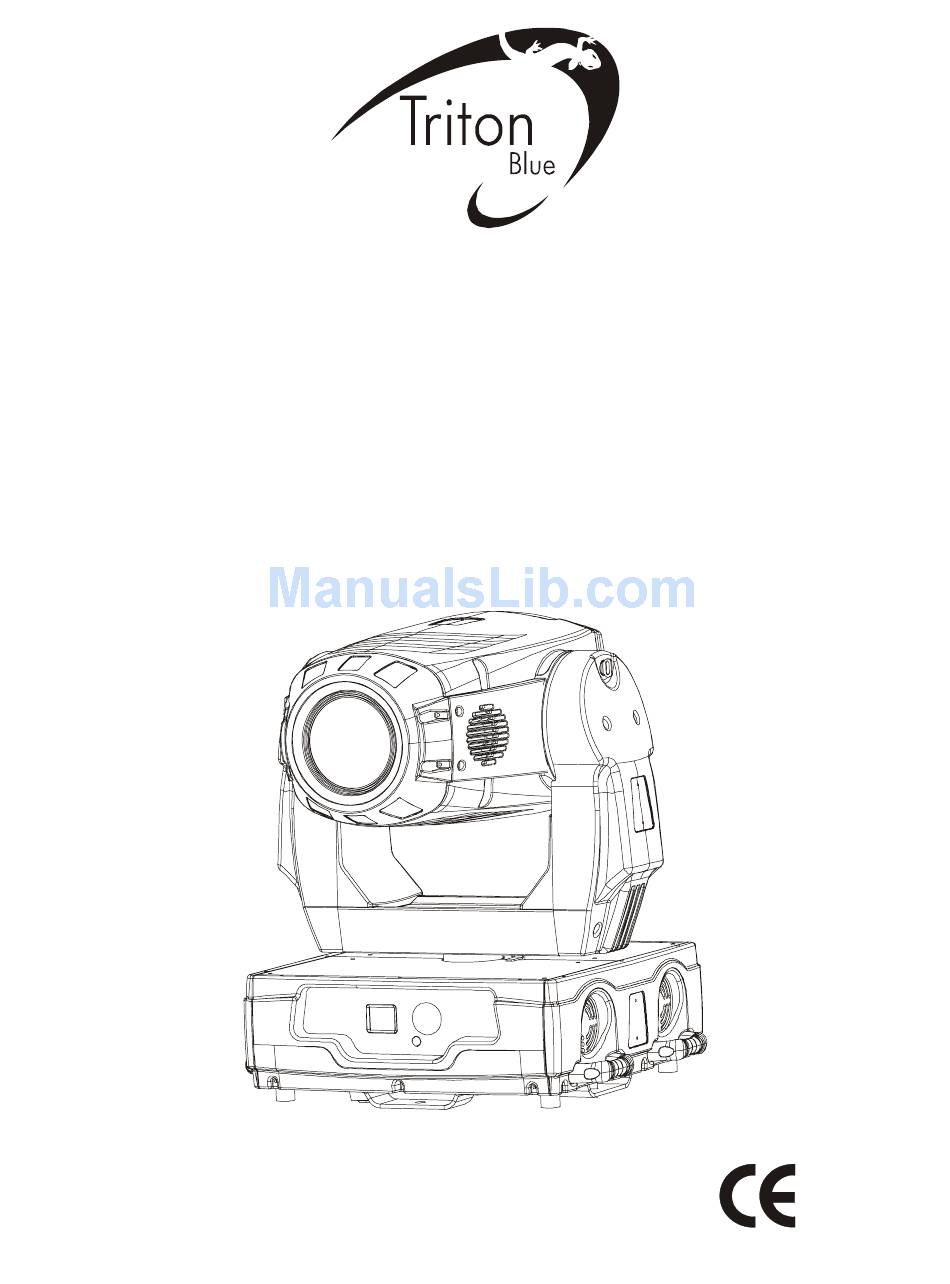

- Page 1 PROFESSIONAL MOVING HEAD USER’S MANUAL V 1200 KEEP THIS MANUAL FOR FUTURE NEEDS...
- Page 2 For your own safety, please read this user manual carefully before installing the device. Keep this device away from rain and moisture ! Unplug mains lead before opening the housing. Every person involved with the installation, operation and maintenance of this device has to: -be qualified -follow carefully the instructions of this manual INTRODUCTION:...
-
Page 3: Safety Instructions
Editable program : • edit and save the program to the incorporated EEPROM through the front control panel or external controller; can save maximum 48 scenes, and run the saved program by the “run” menu from the front control panel SAFETY INSTRUCTIONS CAUTION Be very careful during installation. -
Page 4: General Guidelines
CAUTION Never touch the device during operation! The housing may heat up CAUTION Never look directly into the light source, as sensitive persons may suffer an epileptic shock. Please be aware that damages caused by manual modifications to the device are not subject to warranty. -
Page 5: Installation Instructions
For safety reasons, please be aware that all modifications on the device are forbidden. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc. - Page 6 CAUTION Please consider the EN 60598-2-17 and the other respective national norms during the installation. The installation must only be carried out by a qualified person. The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
- Page 7 device’s weight. Connect the fixture to the mains with the power plug. installation via the Omega holders Screw one clamp each via a M12 screw and nut onto the Omega holders. Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of the device.
-
Page 8: Dmx-512 Control Connection
DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 9: Control Board
You can set the same starting address for all fixtures or a group of fixtures , or make different address for each fixture individually. If you set the same address, all the units will start to “listen” to the same control signal from the same channel number. - Page 10 Function Set DMX address DMX setting Mode Value display DMX value display Set to Slave Set to slave Auto program Auto program Music control Music control Informat Time information Power on time XXXX Individual fixture running time Machine on time XXXX Fixture running time Lamp on time...
-
Page 11: Instructions On Use
Mic sensitivity Sensitivity of Mic. 0~99% Reset default Restore factory settings ON/OFF Reset Reset All Reset all motors &return to home function Reset Scan Reset only motors for pan/tilt Reset Colors Reset only motors for colors Reset Gobos Reset only motors for gobo Reset Shutter Reset only motors for shutter Reset Others... - Page 12 56-69 Yellow Green 70-83 Light Yellow 84-97 Magenta 98-111 Orange 112-127 Purple 128-187 Forwards rainbow effect from fast to slow 188-193 No rotation 194-255 Backwards rainbow effect from slow to fast Channel 2 - Rotating gobos, cont. rotation : 0-14 Open 15-29 Rot.
- Page 13 Channel 5 - PAN movement 8bit : Channel 6 - TILT movement 8bit : Channel 7 - Speed pan/tilt movement: 0-14 max speed 15-225 max to min speed 226-235 blackout by movement 236-245 blackout by all wheel changing 246-255 no function Channel 8 - prism/prisms macros: 0-25 open...
- Page 14 64-95 Strobe effect slow to fast 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Channel 11 - Dimmer (intensity): 0-255 Intensity 0-100% Channel 12 –...
-
Page 15: Error Message
Channel 17 – Lamp on/off, reset, internal programs: 0-19 colour change normal by direction depend on distance 20-39 colour change to any position by direction depend on distance 40-59 Lamp on 60-79 Lamp switch off 80-99 Motor reset 100-119 Internal program 1 120-139 Internal program 2 140-159 Internal program 3 160-179 Internal program 4... -
Page 16: Cleaning And Maintenance
circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective ( or its driving IC on the main PCB). The Static gobo-wheel error is not located in the default position after the reset. 05Er (PAN-yoke movement error) This message will appear after the reset of the fixture if the yoke’s magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective ( or its driving IC on the main PCB). -
Page 17: Technical Specifications
CAUTION Disconnect from mains before starting maintenance operation. We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use alcohol or solvents. There are no serviceable parts inside the device except for the lamp. Please refer to the instructions under “Installation instructions”.
