Appendix D – Exploded Views
Cybex 750C Cybex
ITEM QTY. PART NO. DESCRIPTION
31 4 HS-15706 SCREW,8-16X.50,PNHD
201 1 AD-20840 PCA,PEM JACK BOARD
202 1 AF-21408 BRKT,AV,LOWER
218 1 PL-20951 CONSOLE,SMALL,TOP,A/V
219 1 KAD-21926 COVER,BOTTOM,AV
221 1 SW-20813-X* MEMBRANE,750CR,AV KEYPAD
400 1 AF-20959 WELDMENT,AV MOUNT
401 1 CP-21072 MONITOR,13.3" ATSC DIGITAL
PEM
401 1 CP-21073 MONITOR,13.3" DVB-T DIGITAL
PEM
402 4 HN-19662 NUT,LOCK FLG,1-4-20,ZN
403 2 HS-11347 BOLT,1-4-20X0.75,SCHD BTN,BLK
404 4 HS-13739 BOLT LCK,1-4-20X1.25,G5
405 1 AW-20841 CABLE,IPOD
406 1 DE-22190 LABEL,NIKE+ IPOD

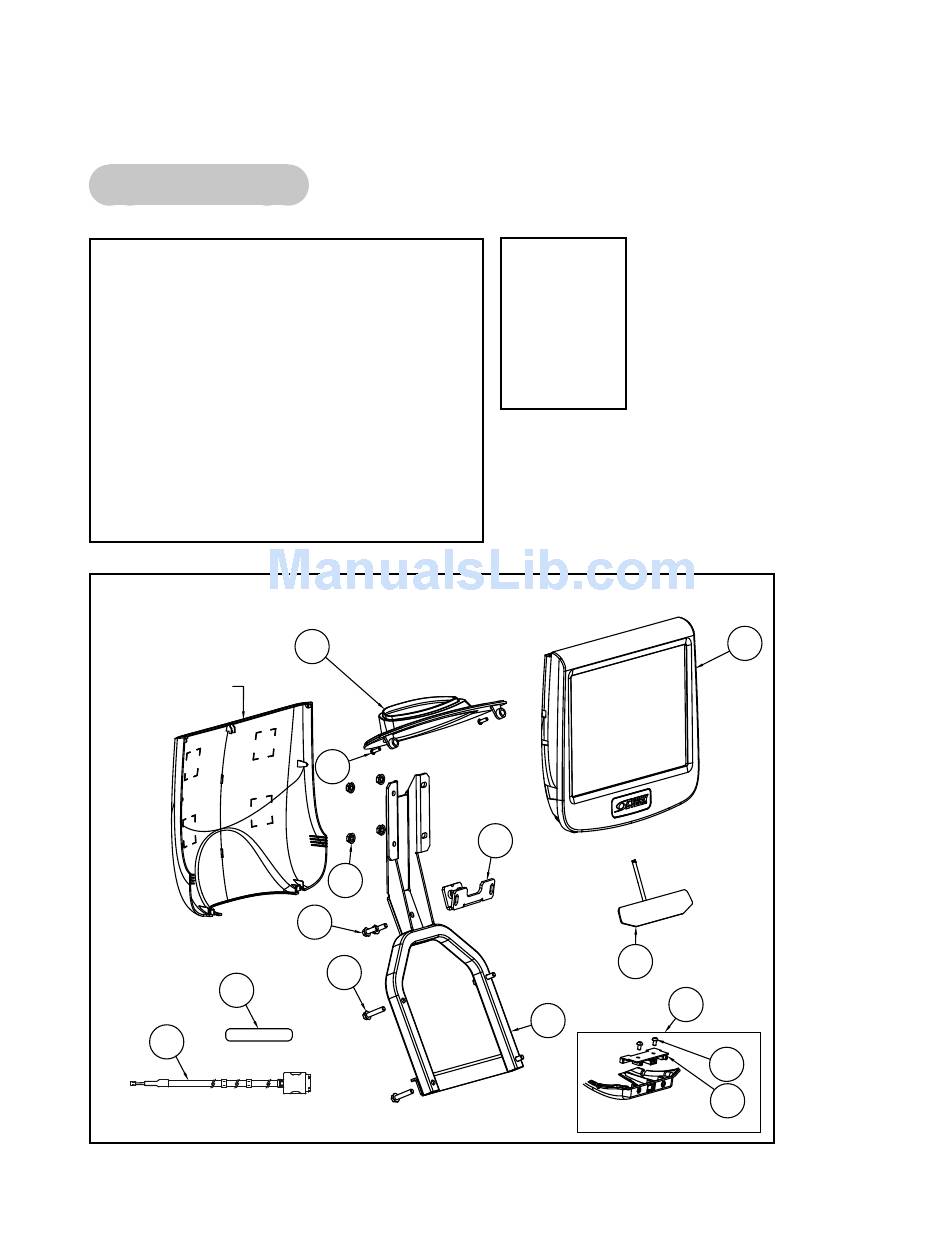

750C A/V Monitor Option
MONITOR BACK COVER
406
405
Cybex 750C/750R Owner's Manual
218
31
402
403
404
* Language Key
1-German
2-French
3-Spanish
4-English
6-Japanese
7-Swedish
8-Russian
A-Danish
202
221
400
401
219
31
201
Exploded
Views
