strip at the other side of the cabinet.
Note: for the models with cabinet display, the above operation concerning cables is not needed.

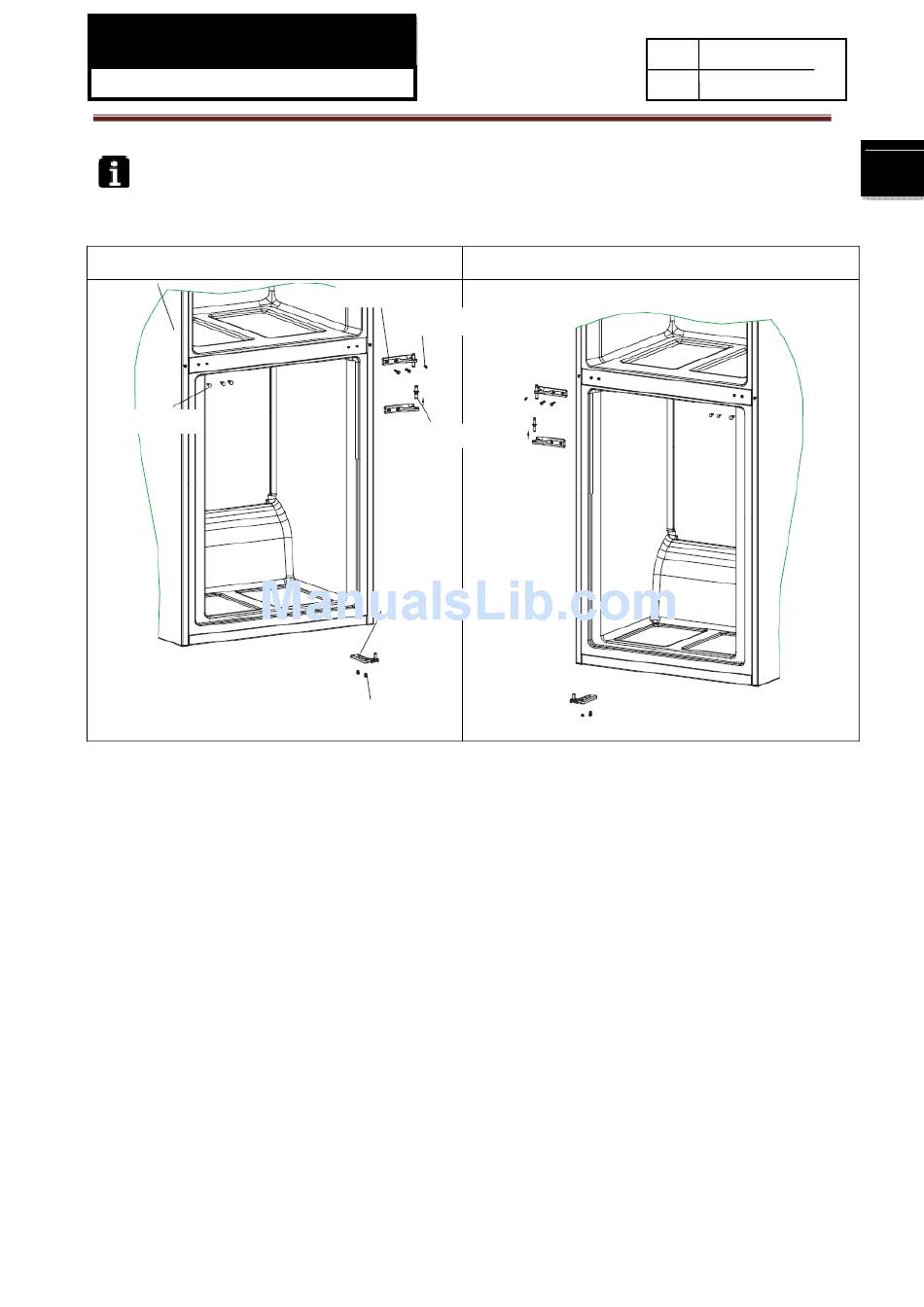

3-2-3: Dismantle and install the middle and lower hinges
Before change
PART-3
Hole plug
Screws affixed to the lower hinge
(1) Detach the 3 screws affixed to the middle hinge and remove the hinge. Unscrew the hinge axis
and then screw it from the reversed direction.
(2) Remove the upper and lower doors separately. Dismantle the stop blocks on the bottom of the
doors. Turn them by 180 degrees and refit them on the other side.
(3) Tilt the refrigerator to the required angle. Detach the screws fixing the lower hinge and remove the
hinge.
(4) Fix the lower hinge to the bottom of the other side of the cabinet. Then, mount the lower door on
the lower hinge.
(5) Take out the 3 hole plugs on the other side of the cabinet.
Turn the middle hinge by 180 degrees and install it on the other side of the cabinet. Attach the 3
screws removed in step 1. Mount the 3 hole plugs into the holes where the hinge is seated
originally.
Middle hinge
Screws
Middle hinge axis
lower hinge
Issue 2009-12-23
Rev. Ref0912S021V0
After change
