SERVICE MANUAL
Model: CFE629CW
Chapter 3 Disassembly

3-1 Installing and Removing Door

Precautions During Dismantling and Installation of The Door
(1) Before removing the doors, please remove food from the shelves and the bottle guards. Then,
unplug the refrigerator power cord to avoid personal injury, product damage or property loss.
(2) During dismantling of the door, in order to avoid possible personal injury, product damage or
property loss, at least two adults are needed to perform the following operations.
(3) While lifting the hinges to separate it from the door, please take care to prevent the door from falling
forward.

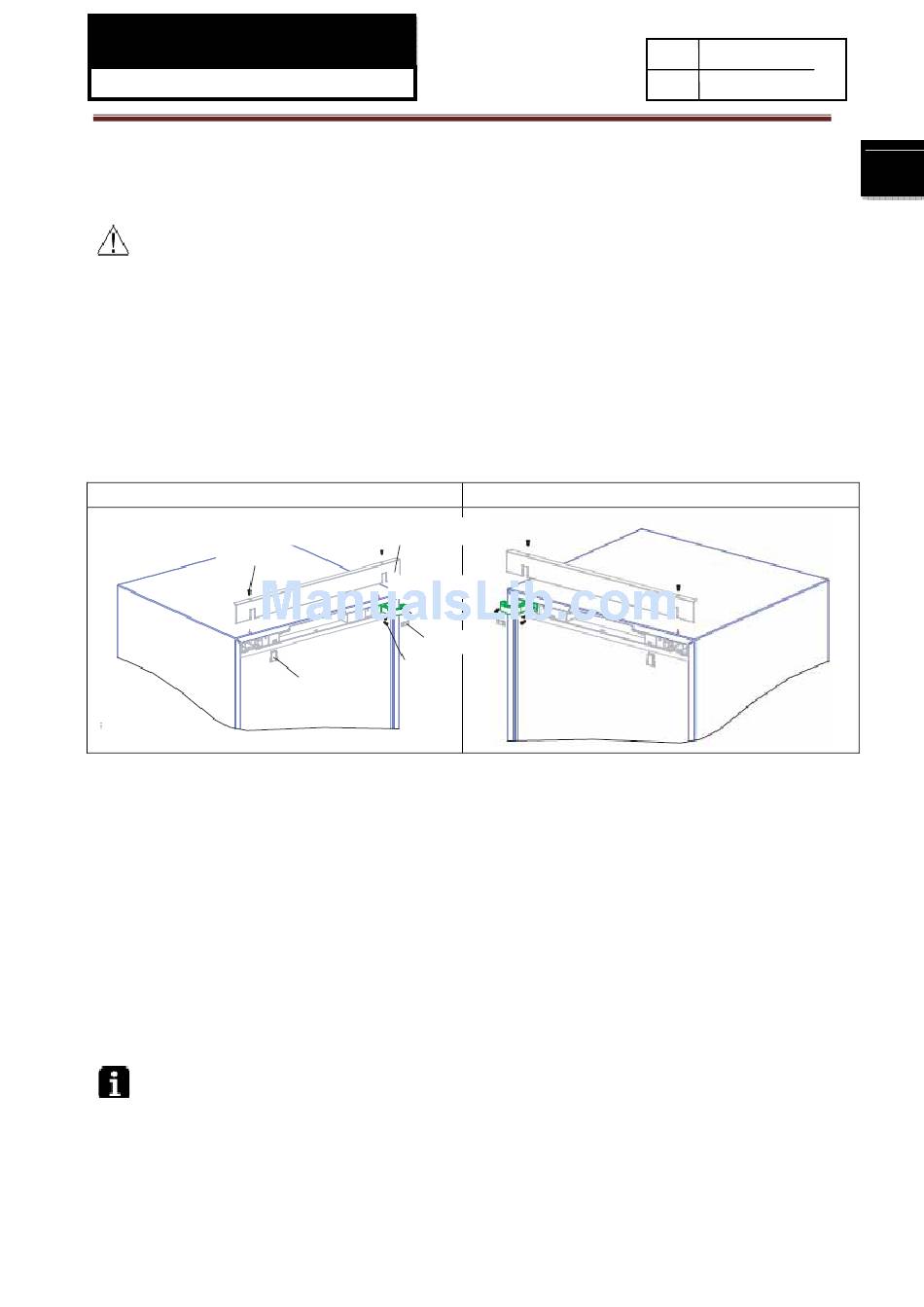

3-2-1 Dismantle and install front decoration strip of the table-board and the upper hinge
Before change
PART-1
Front decoration strip of the table-board
Screw
Pull decoration covers 1 and 2 downward to remove them and retain.
Detach the 2 screws fixing the front decoration strip of the table-board.
Lift the front decoration strip of the table-board outward and upward. At this time, there are wires
connecting it. Please do not disconnect the wires. Gently put the front decoration strip on the top
of the refrigerator.
Detach the screws affixed to the upper hinge and remove the hinge.
Turn over the upper hinge and fix it on the other side. Then, install the front decoration strip of the
table-board in the reversed direction.
Secure the 2 screws on the top.
Install the 2 decoration covers on the front decoration strip of the table-board with their positions
exchanged.
Note: for the models with cabinet display, the front decoration strip of the table-board is different
from the one shown in the figure. The dismantling and installation methods are the same.
Upper hinge
Cover 2
Screw
Cover 1
Issue 2009-12-23
Rev. Ref0912S021V0
After change
10
