SERVICE MANUAL
Model: CFE629CW

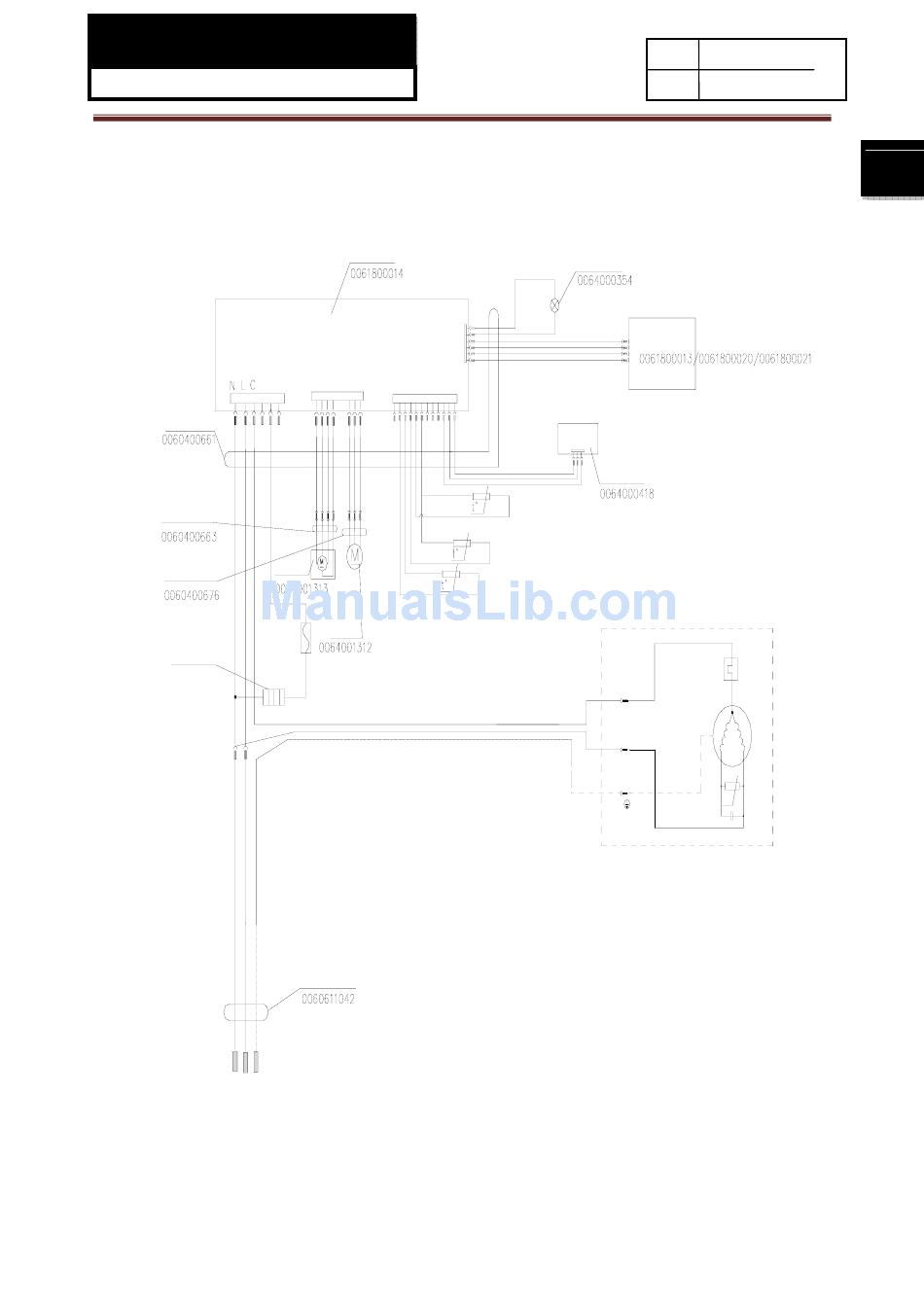

Chapter 7 Circuit diagram
7-1. Main control PCB diagram
CON3
Main control cable
Blue
Brown
Red
Black
Air escaper connecting cable
Electric air escaper
Fan motor connecting cable
Heating tube
Blue
Brown
Yellow/Green
Power board
CON2
CON4
CON1
Fan motor
Fuse
Power cable
LED Lamp
Display panel
Switch
Fridge storage temperature sensor
Defrosting temperature sensor
Freezer storage temperature sensor
Black
Blue
Yellow/Green
Issue 2009-12-23
Rev. Ref0912S021V0
21
