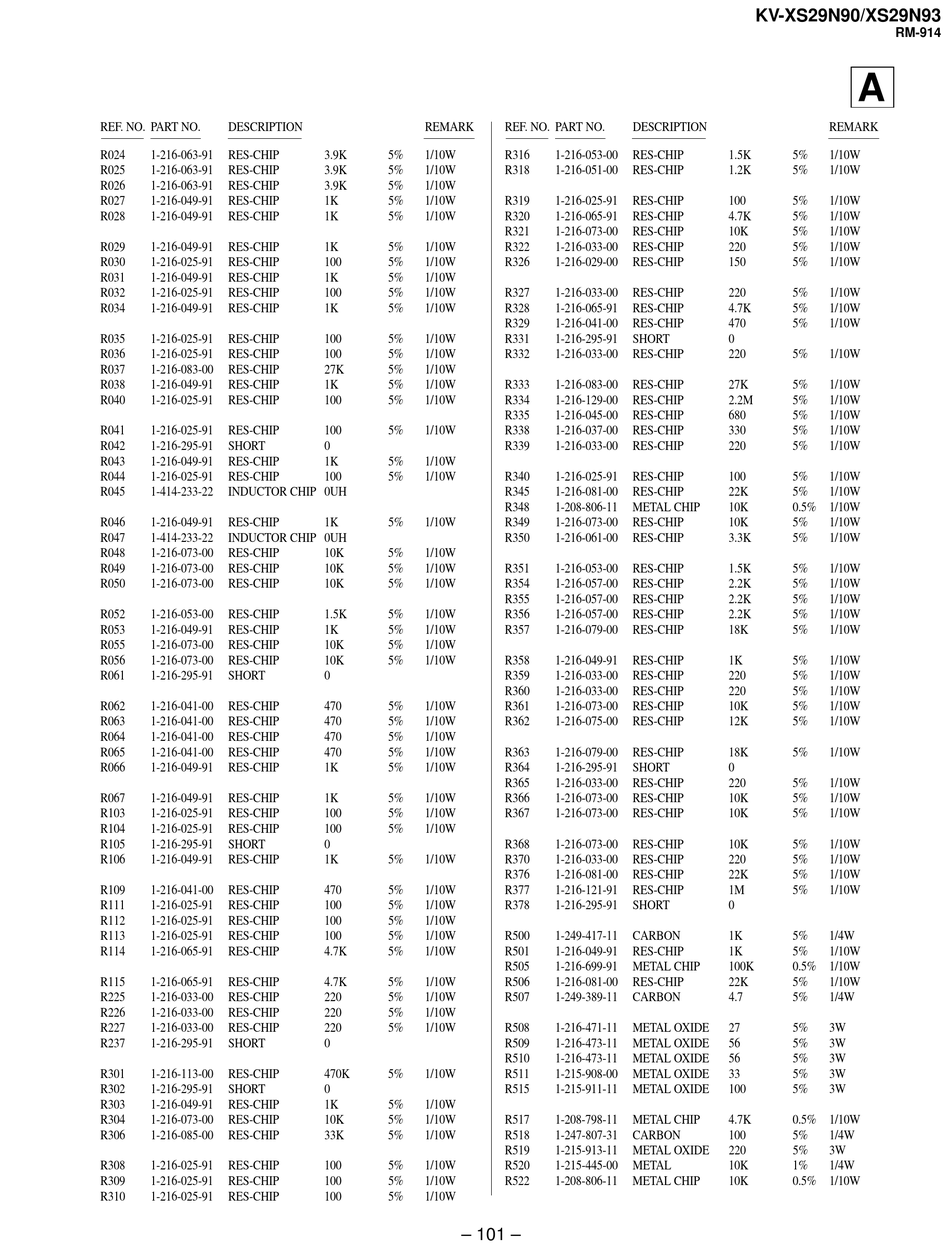

Sony TRINITRON KV-XS29N90 Service Manual page 53

The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF. NO. PART NO. DESCRIPTION
R024 1-216-063-91 RES-CHIP
R025 1-216-063-91 RES-CHIP
R026 1-216-063-91 RES-CHIP
R027 1-216-049-91 RES-CHIP
R028 1-216-049-91 RES-CHIP
R029 1-216-049-91 RES-CHIP
R030 1-216-025-91 RES-CHIP
R031 1-216-049-91 RES-CHIP
R032 1-216-025-91 RES-CHIP
R034 1-216-049-91 RES-CHIP
R035 1-216-025-91 RES-CHIP
R036 1-216-025-91 RES-CHIP
R037 1-216-083-00 RES-CHIP
R038 1-216-049-91 RES-CHIP
R040 1-216-025-91 RES-CHIP
R041 1-216-025-91 RES-CHIP
R042 1-216-295-91 SHORT
R043 1-216-049-91 RES-CHIP
R044 1-216-025-91 RES-CHIP
R045 1-414-233-22 INDUCTOR CHIP 0UH
R046 1-216-049-91 RES-CHIP
R047 1-414-233-22 INDUCTOR CHIP 0UH
R048 1-216-073-00 RES-CHIP
R049 1-216-073-00 RES-CHIP
R050 1-216-073-00 RES-CHIP
R052 1-216-053-00 RES-CHIP
R053 1-216-049-91 RES-CHIP
R055 1-216-073-00 RES-CHIP
R056 1-216-073-00 RES-CHIP
R061 1-216-295-91 SHORT
R062 1-216-041-00 RES-CHIP
R063 1-216-041-00 RES-CHIP
R064 1-216-041-00 RES-CHIP
R065 1-216-041-00 RES-CHIP
R066 1-216-049-91 RES-CHIP
R067 1-216-049-91 RES-CHIP
R103 1-216-025-91 RES-CHIP
R104 1-216-025-91 RES-CHIP
R105 1-216-295-91 SHORT
R106 1-216-049-91 RES-CHIP
R109 1-216-041-00 RES-CHIP
R111 1-216-025-91 RES-CHIP
R112 1-216-025-91 RES-CHIP
R113 1-216-025-91 RES-CHIP
R114 1-216-065-91 RES-CHIP
R115 1-216-065-91 RES-CHIP
R225 1-216-033-00 RES-CHIP
R226 1-216-033-00 RES-CHIP
R227 1-216-033-00 RES-CHIP
R237 1-216-295-91 SHORT
R301 1-216-113-00 RES-CHIP
R302 1-216-295-91 SHORT
R303 1-216-049-91 RES-CHIP
R304 1-216-073-00 RES-CHIP
R306 1-216-085-00 RES-CHIP
R308 1-216-025-91 RES-CHIP
R309 1-216-025-91 RES-CHIP
R310 1-216-025-91 RES-CHIP
REMARK
3.9K 5% 1/10W
3.9K 5% 1/10W
3.9K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
100 5% 1/10W
1K 5% 1/10W
100 5% 1/10W
1K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
27K 5% 1/10W
1K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
0
1K 5% 1/10W
100 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
1.5K 5% 1/10W
1K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
0
470 5% 1/10W
470 5% 1/10W
470 5% 1/10W
470 5% 1/10W
1K 5% 1/10W
1K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
0
1K 5% 1/10W
470 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
4.7K 5% 1/10W
4.7K 5% 1/10W
220 5% 1/10W
220 5% 1/10W
220 5% 1/10W
0
470K 5% 1/10W
0
1K 5% 1/10W
10K 5% 1/10W
33K 5% 1/10W
100 5% 1/10W
100 5% 1/10W
100 5% 1/10W
– 101 –
REF. NO. PART NO. DESCRIPTION
R316 1-216-053-00 RES-CHIP
R318 1-216-051-00 RES-CHIP
R319 1-216-025-91 RES-CHIP
R320 1-216-065-91 RES-CHIP
R321 1-216-073-00 RES-CHIP
R322 1-216-033-00 RES-CHIP
R326 1-216-029-00 RES-CHIP
R327 1-216-033-00 RES-CHIP
R328 1-216-065-91 RES-CHIP
R329 1-216-041-00 RES-CHIP
R331 1-216-295-91 SHORT
R332 1-216-033-00 RES-CHIP
R333 1-216-083-00 RES-CHIP
R334 1-216-129-00 RES-CHIP
R335 1-216-045-00 RES-CHIP
R338 1-216-037-00 RES-CHIP
R339 1-216-033-00 RES-CHIP
R340 1-216-025-91 RES-CHIP
R345 1-216-081-00 RES-CHIP
R348 1-208-806-11 METAL CHIP
R349 1-216-073-00 RES-CHIP
R350 1-216-061-00 RES-CHIP
R351 1-216-053-00 RES-CHIP
R354 1-216-057-00 RES-CHIP
R355 1-216-057-00 RES-CHIP
R356 1-216-057-00 RES-CHIP
R357 1-216-079-00 RES-CHIP
R358 1-216-049-91 RES-CHIP
R359 1-216-033-00 RES-CHIP
R360 1-216-033-00 RES-CHIP
R361 1-216-073-00 RES-CHIP
R362 1-216-075-00 RES-CHIP
R363 1-216-079-00 RES-CHIP
R364 1-216-295-91 SHORT
R365 1-216-033-00 RES-CHIP
R366 1-216-073-00 RES-CHIP
R367 1-216-073-00 RES-CHIP
R368 1-216-073-00 RES-CHIP
R370 1-216-033-00 RES-CHIP
R376 1-216-081-00 RES-CHIP
R377 1-216-121-91 RES-CHIP
R378 1-216-295-91 SHORT
R500 1-249-417-11 CARBON
R501 1-216-049-91 RES-CHIP
R505 1-216-699-91 METAL CHIP
R506 1-216-081-00 RES-CHIP
R507 1-249-389-11 CARBON
R508 1-216-471-11 METAL OXIDE
R509 1-216-473-11 METAL OXIDE
R510 1-216-473-11 METAL OXIDE
R511 1-215-908-00 METAL OXIDE
R515 1-215-911-11 METAL OXIDE
R517 1-208-798-11 METAL CHIP
R518 1-247-807-31 CARBON
R519 1-215-913-11 METAL OXIDE
R520 1-215-445-00 METAL
R522 1-208-806-11 METAL CHIP
KV-XS29N90/XS29N93
RM-914
A
REMARK
1.5K 5% 1/10W
1.2K 5% 1/10W
100 5% 1/10W
4.7K 5% 1/10W
10K 5% 1/10W
220 5% 1/10W
150 5% 1/10W
220 5% 1/10W
4.7K 5% 1/10W
470 5% 1/10W
0
220 5% 1/10W
27K 5% 1/10W
2.2M 5% 1/10W
680 5% 1/10W
330 5% 1/10W
220 5% 1/10W
100 5% 1/10W
22K 5% 1/10W
10K 0.5% 1/10W
10K 5% 1/10W
3.3K 5% 1/10W
1.5K 5% 1/10W
2.2K 5% 1/10W
2.2K 5% 1/10W
2.2K 5% 1/10W
18K 5% 1/10W
1K 5% 1/10W
220 5% 1/10W
220 5% 1/10W
10K 5% 1/10W
12K 5% 1/10W
18K 5% 1/10W
0
220 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
10K 5% 1/10W
220 5% 1/10W
22K 5% 1/10W
1M 5% 1/10W
0
1K 5% 1/4W
1K 5% 1/10W
100K 0.5% 1/10W
22K 5% 1/10W
4.7 5% 1/4W
27 5% 3W
56 5% 3W
56 5% 3W
33 5% 3W
100 5% 3W
4.7K 0.5% 1/10W
100 5% 1/4W
220 5% 3W
10K 1% 1/4W
10K 0.5% 1/10W
