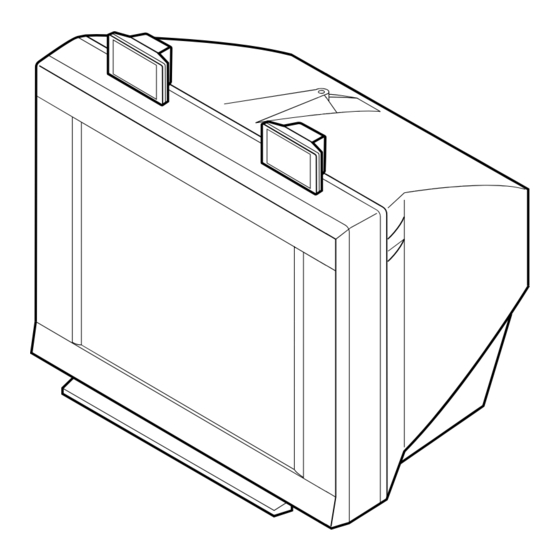

Trinitron color tv
Hide thumbs Also See for TRINITRON KV-XA21M80:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL

MODEL
COMMANDER DEST.
KV-XA21M80
RM-952
KV-XA21M83
RM-952
KV-XA21M50
RM-952
KV-XA21M50
RM-952
KV-XA21M61
RM-952
KV-XA21M61
RM-952
CHASSIS NO.
E
SCC-U53B-A
ME
SCC-U48D-A
EM
SCC-U45F-A
GE
SCC-U52B-A
EM
SCC-U45E-A
GE
SCC-U52C-A
1
2
3
4
6
5
7
9
8
÷
0
JUMP
SOUND
Á
PROGR
MODE
FAVORITE
TV
BG-3R
MODEL
COMMANDER DEST. CHASSIS NO.
KV-XA21M60
RM-952
KV-XA21M80
RM-952
TRINITRON
CHASSIS
S
SCC-U49D-A
ME
SCC-U48C-A
COLOR TV
®

Advertisement

Table of Contents
loading

Related Manuals for Sony TRINITRON KV-XA21M80

Summary of Contents for Sony TRINITRON KV-XA21M80

  • Page 1: Service Manual

    SERVICE MANUAL BG-3R CHASSIS MODEL COMMANDER DEST. CHASSIS NO. MODEL COMMANDER DEST. CHASSIS NO. KV-XA21M60 KV-XA21M80 RM-952 SCC-U49D-A RM-952 SCC-U53B-A KV-XA21M83 KV-XA21M80 RM-952 SCC-U48D-A RM-952 SCC-U48C-A KV-XA21M50 RM-952 SCC-U45F-A KV-XA21M50 RM-952 SCC-U52B-A KV-XA21M61 RM-952 SCC-U45E-A KV-XA21M61 RM-952 SCC-U52C-A ÷ JUMP SOUND Á...
  • Page 2 CARBON PAINTED ON THE CRT, AFTER REMOVING THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE ANODE. THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. – 2 –...

  • Page 3: Table Of Contents

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 TABLE OF CONTENTS Section Title Page Section Title Page SELF DIAGNOSIS FUNCTION 5. DIAGRAMS ........ 4 5-1. Block Diagram ............39 1. GENERAL ................ 7 5-2. Circuit Board Location ..........41 5-3. Schematic Diagrams ..........42 2. DISASSEMBLY (1) Schematic Diagrams of F, J2 and C1 Boards ..

  • Page 4: Self Diagnosis Function

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 SELF DIAGNOSTIC FUNCTION The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically begin to flash. The number of times the lamp flashes translates to a probable source of the problem. A definition of the STANDBY/TIMER lamp flash indicators is listed in the instruction manual for the user’s knowledge and reference.
  • Page 5 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 2. DISPLAY OF STANDBY/TIMER LIGHT FLASH COUNT Diagnostic Item Flash Count* 2 times +B overcurrent/overvoltage 2 times Vertical deflection stopped 3 times White balance failure 5 times * One flash count is not used for self-diagnostic. Lamp ON 0.3 sec.
  • Page 6 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen during repairs. When you have completed the repairs, clear the result display to “0”.
  • Page 8 AUDIO VIDEO VIDEO IN VIDEO OUT L(MONO) AUDIO VIDEO VIDEO IN VIDEO OUT...
  • Page 9 TWEETER (8 ) – R + – L + L(MONO) SELECT AUTO PROGR PROGR AUTO PROGR...
  • Page 10 L(MONO) SELECT AUTO PROGR PROGR...
  • Page 11 JUMP SOUND Á PROGR MODE SELECT AUTO L(MONO) PROGR PROGR FAVORITE AUTO PROGR...
  • Page 13 JUMP SOUND Á PROGR MODE L(MONO) SELECT AUTO PROGR PROGR SELECT AUTO FAVORITE PROGR PROGR...
  • Page 15 JUMP SOUND Á PROGR MODE FAVORITE...
  • Page 16 JUMP SOUND Á PROGR MODE FAVORITE...
  • Page 17 JUMP SOUND PROGR MODE JUMP Á SOUND PROGR MODE FAVORITE FAVORITE L(MONO) SELECT AUTO PROGR PROGR...
  • Page 18 JUMP SOUND PROGR MODE FAVORITE P166 SECTEXT FR1 MAR 03:59:09 Fom Singapore Dep/Arr Flight Alrcraft To PARIS 220/0588 SQ28 2130/1225 PA115 2115/1330 SQ26 To OSAKA 1000/1715 0930/2015 CX522 To ROMA 2130/0745 SQ24 2300/0915 AZ487 2210/0610 SQ21A To SYDNEY 2100/0835 SQ21A...
  • Page 19 L(MONO) SELECT AUTO PROGR PROGR...
  • Page 20 P166 SECTEXT FR1 MAR 03:59:09 Fom Singapore Dep/Arr Flight Alrcraft To PARIS 220/0588 SQ28 2130/1225 PA115 2115/1330 SQ26 To OSAKA 1000/1715 0930/2015 CX522 To ROMA 2130/0745 SQ24 2300/0915 AZ487 To SYDNEY 2210/0610 SQ21A 2100/0835 SQ21A...
  • Page 24 AUTO SELECT PROGR PROGR (MONO) FAVORITE L(MONO) SELECT AUTO PROGR PROGR L(MONO)
  • Page 27 Anode Button...

  • Page 28: Set-Up Adjustments

    KV-XA21M80/XA21M83/XA21M50/ SECTION 3 KV-XA21M61/ XA21M60 RM-952 SET-UP ADJUSTMENTS • The following adjustments should be made when a complete Perform the adjustments in the following order : realignment is required or a new picture tube is installed. 1. Beam Landing •...
  • Page 29 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 3-2. CONVERGENCE Preparation : • Before starting this adjustment, adjust the focus, horizontal size and vertical size. • Receive dot/hatch signal. Purity • Pic mode: Personal (Pic 90%, Brightness 50%, Col 50 %, Hue 50%, Shp 50%).

  • Page 30: Convergence Adjustment

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 YCH Rotate YCH VOL on DY BMC (Hexapole) Magnet. If the red, green and blue dots are not balanced or aligned, then Insert Correction Plate to DY Pocket (Left or use the BMC magnet to adjust in the manner described below.

  • Page 31: Focus Adjustment

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 3-4. G2 (SCREEN) AND WHITE BALANCE Fix a Permalloy assy corresponding to the misconverged areas. ADJUSTMENTS 1. G2 (SCREEN) ADJUSTMENT 1) Set the PICTURE to normal. 2) Put to VIDEO input mode without signals. 3) Connect R, G and B of the C1 board cathode to the oscilloscope.

  • Page 32: Circuit Adjustments

    KV-XA21M80/XA21M83/XA21M50/ SECTION 4 KV-XA21M61/ XA21M60 RM-952 CIRCUIT ADJUSTMENTS 4-1. ADJUSTMENTS WITH COMMANDER 4-2. ADJUSTMENT METHOD Service adjustments to this model can be performed using the sup- Item Number 00 of device GEO plied Remote Commander RM-952 This explanation uses H-Position as an example.
  • Page 36 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 ITEM INFORMATION No. OPB0 OP1 Item XTAL 4.43 XTAL 3.58 SECAM 2nd. Lang KV-XA21M80 (E) KV-XA21M83 KV-XA21M50 (EM) KV-XA21M50 (GE) KV-XA21M61 (EM) KV-XA21M61 (GE) KV-XA21M60 (S) KV-XA21M80 (ME) No. OPB1 OP2 AV Input Item NICAM HDEV Thai Bil Dis Fav.

  • Page 37: Picture Quality Adjustments

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 4-3. PICTURE QUALITY ADJUSTMENTS 4-4. DEFLECTION ADJUSTMENT NORMAL MODE (50Hz) SUB COLOR ADJUSTMENT Set to Service Mode. 1. Select Video. Using the 1 and 4 button, select category GEO (Service 2. Input a PAL color-bar. Mode). 3. Set to the following condition: Raise/lower the data using the 3 and 6 buttons.

  • Page 38: Picture Distortion Adjustment

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 4-6. PICTURE DISTORTION ADJUSTMENT (1) Item Number 00 – 0B GEO 0 HPS (H POSITION) GEO 1 HSZ (H SIZE) GEO 2 PAP (PIN AMP) GEO 3 TLT (TRAPEZIUM) GEO 4 VPS (V POSITION) GEO 5...

  • Page 39: Diagrams

    KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ SECTION 5 KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 DIAGRAMS RM-952 RM-952 5-1. BLOCK DIAGRAM Tweeter Box MAIN. TUVIF with TV V in AUDIO Jack STEREO DECODER CN3421 J3421 TV L in PROSESSOR (MSP3415) Model with Tweeter <slave: 84H> TV R in IC203...

  • Page 40: Circuit Board Location

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 5-3. SCHEMATIC DIAGRAM 5-2. CIRCUIT BOARDS LOCATION Note: • All capacitors are in µF unless otherwise noted. • All electrolytic capacitors are rated at 50V unless otherwise noted. • All resistors are in ohms.

  • Page 41: Schematic Diagrams Of F, J2 And C1 Boards

    KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 (1) Schematic Diagrams of F, J2 and C1 Boards CN4601 (FRONT AV IN,SENSOR, POWER SW) JW4603 F4601 T3.15A T4601 AC IN AC OUT JW4604 T.L.F T4602 R4601 AC IN AC OUT T.L.F 1/2W CN4602...

  • Page 42: Schematic Diagram Of A Board

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 (2) Schematic Diagram of A Board CN303 CN302 TO B3 BOARD CN1404 R336 TO B3 BOARD CN1406 JOINT A1 JOINT A2 JOINT A3 (SYSTEM CONTROLLER, Y/C JUNGLE, DEFLECTION, JOINT A4 JW080 TUVIF, FRONT AMP, POWER SUPPLY)
  • Page 43 KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 CN101 CN102 CN204 CN203 TO B3 BOARD CN1407 :S-MICRO :S-MICRO CN1405 TO B3 BOARD CN106 TO B3 BOARD CN104 CN3603 CN205 CN105 :TAB TU101 JR111 C112 JR108 C110 JR109 470p R108 R111 B:CHIP R103...
  • Page 44 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 TO PAGE 1 R901 R902 L901 D312 :FPRD :FPRD 1SS355TE-17 R377 L902 D311 C336 R345 1SS355TE-17 J901 R339 :CHIP C901 JACK 0.01 :CHIP B:CHIP R348 R376 :MPS C337 IC001 C341 :RN-CP :CHIP C902 0.22 R332 0.01...
  • Page 45 KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 TO PAGE 1 TO PAGE 1 C338 4700p B:CHIP R370 R333 :CHIP :CHIP R365 R306 :CHIP :CHIP R375 R350 (SYSTEM 3.3k :CHIP CONTROLLER, D309 Y/C JUNGLE, DEFLECTION, TUVIF, FRONT JOINT A21 AMP, POWER Q315...
  • Page 46 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 JOINT A1 JOINT A2 NS ROT JOINT A3 NS MUTE JOINT A4 JOINT A5 JOINT A6 L517 (SYSTEM CONTROLLER, Y/C JUNGLE, DEFLECTION, JOINT A7 TUVIF, FRONT AMP, POWER SUPPLY) C501 C551 R523 JOINT A8...
  • Page 47 KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 (SYSTEM CONTROLLER, Y/C JUNGLE, DEFLECTION, TUVIF, FRONT AMP, POWER SUPPLY) JOINT A1 CN507 JOINT A2 R501 :S-MICRO JOINT A3 TO C BOARD JOINT A4 R500 CN1801 JOINT A5 JOINT A6 C512 0.033 B:CHIP R596...
  • Page 48 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 TO PAGE 2 (SYSTEM CONTROLLER, Y/C JUNGLE, DEFLECTION, TUVIF, FRONT AMP, POWER SUPPLY) JOINT A13 T603 C624 R650 0.0022 D615 R653 C630 4.7k RU4AM-T3 IC603 JOINT A14 FB604 NJM78M09FA 160V D622 Q607 JOINT A15...
  • Page 49 KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 TO PAGE 2 TO PAGE 2 TO C BOARD JOINT A13 CN CN701 JOINT A14 R526 R522 C513 4.7k 330p :CHIP :RN-CP CH:CHIP 200V C566 CN505 IC503 220p JOINT A15 500V TDA8172 L518 C522 V.OUT...

  • Page 50: Schematic Diagram Of V1Board

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 (3) Schematic Diagram of V1 Board (KV-XA21M61(EM/GE)) – 61 – – 62 –...
  • Page 51 KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 – 63 – – 64 –...
  • Page 52 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 5-4. VOLTAGE LIST MEASUREMENT A (2/2) BOARD VOLTAGE LIST A (1/2) BOARD VOLTAGE LIST Pin No Voltage[v] Pin No. Voltage[v] Pin No. Voltage[v] Pin No Voltage[v] Pin No. Voltage[v] Pin No. Voltage[v] Q206 Q403...
  • Page 53 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 C1 BOARD VOLTAGE LIST Pin No Voltage[v] Pin No. Voltage[v] Pin No. Voltage[v] IC700 Q5963 134.1 J701 325.8 (328.2) <323.4> 67.1 155.8 (153.2) <150.3> 134.7 158 (155.7) <153.7> Q5965 4.9<5.3> 160.8 <154.57> 67.1 194.5 Q700 160.5 <154>...

  • Page 54: Waveforms

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 5-5. WAVEFORMS A BOARD WAVEFORMS PAL/SECAM NTSC 4.8Vp-p (V) 5.0Vp-p (V) 4.4Vp-p (V) 1.2Vp-p (H) 1.2Vp-p (H) PAL/SECAM NTSC 0.9Vp-p (H) 1.2Vp-p (H) 1.0Vp-p (H) 1.0Vp-p (H) 0.9Vp-p (V) PAL/SECAM NTSC 3.5Vp-p 1.4Vp-p (H) 3.2Vp-p (H) 3.2Vp-p (H)

  • Page 55: Printed Wiring Boards And Parts Location

    KV-XA21M80/XA2183/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 5-6. PRINTED WIRING BOARDS AND PARTS LOCATION NOTE: The circuit indicated at left contains high voltage of over PRINTING WIRING BOARD 1220 Vp-p. Please pay attention when inspecting or re- [SYSTEM CONTROLLER, Y/C JUNGLE, pairing it to prevent an electric shock.
  • Page 56 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M80/XA2183/XA21M50/ KV-XA21M61/XA21M60 KV-XA21M61/XA21M60 RM-952 RM-952 PRINTING WIRING BOARD [AUDIO PROCESSOR, AUDIO AMP, SUB TUNER, AV IN/OUT, VM DRIVER] [DVD, 3D TERMINAL] [FRONT AV IN, SENSOR, POWER SW] – C1 Board – – F Board – – V1 Board – (KV-XAM61(EM)/M61(GE)) –...

  • Page 57: Semiconductors

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 RM-952 5-7 SEMICONDUCTORS DIODE CATHODE CATHODE CATHODE ANODE CATHODE ANODE ANODE ANODE ERD29-08J AU-01Z-V1 DTZ-TT11-15B D1NS4 1SS302 ON3171-R EL1Z DTZ10B NEQS04 ERA22-08 MA111-(K8).S0 RD6.8ES-B1 ERC04-06SE RD5.1SB-T2 RD6.8SB-T1 GP08D RD5.6S-B RD20ES-B2 HSS83TD RD9.1S-B RD30ES-B2 31DQ06-FC5 1SS355TE17 RD39-ES-B2 RU4AM-T3 1SS119-25...
  • Page 58 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 MARKING SIDE VIEW TOP VIEW TOP VIEW Single In -line Package Dual In-line Package Pin 8~98 Pin 6~98 MM1319AFBE CXP86449-630S RU-1P NJM2903M CXA2159S M24C08-BN6 TDA7442DO13TR TDA9183T CATHODE ANODE TDA8172 S-80743AL-A7-S SBX3081-(01)30 LA6510 NJM78M09FA SE-135N MARKING SIDE VIEW...

  • Page 59: Exploded Views

    KV-XA21M80/XA21M83/XA21M50/ SECTION 6 KV-XA21M61/XA21M60 RM-952 EXPLODED VIEWS NOTE: • • Items marked " ∗ " are not stocked since Items with no part number and no The components identified by description are not stocked because they are seldom required for routine...

  • Page 60: Chassis

    KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 RM-952 6-2. CHASSIS r : 7-685-648-79 SCREW +BVTP 3 × 12 p : 7-685-663-71 SCREW +BVTP 4 × 16 REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK * A-1241-450-A F BOARD, MOUNTED ! 1-757-030-11...

  • Page 61: Electrical Parts List

    * A-1299-441-A A BOARD COMPLETE (KV-XA21M61(GE)) C053 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C054 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V * A-1299-417-A A BOARD COMPLETE (KV-XA21M80(E)) C055 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V * A-1299-415-A A BOARD COMPLETE (KV-XA21M80(ME)) C103 1-164-004-11 CERAMIC CHIP 0.1UF 10.00%25V...
  • Page 62 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK C230 1-164-346-11 CERAMIC CHIP C356 1-126-962-11 ELECT 3.3UF...
  • Page 63 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK C573 1-106-375-12 MYLAR 0.022UF 200V C653 1-104-664-11...
  • Page 64 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK D309 8-719-069-54 UDZS-TE17-5.1B (KV-XA21M60 Only) D608...
  • Page 65 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK <IC> JR300 1-216-295-11 SHORT JR304 1-216-295-11 SHORT...
  • Page 66 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK <TRANSISTOR> Q603 8-729-027-23 DTA114EKA-T146 (Except KV-XA21M50(Malaysia)/...
  • Page 67 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK R053 1-216-049-11 RES-CHIP 1/10W R312 1-216-039-00 RES-CHIP...
  • Page 68 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK R406 1-216-073-00 RES-CHIP 1/10W R567 1-216-105-91...
  • Page 69 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK R632 1-202-933-61 FUSIBLE 1/2W <TRANSFORMER> R634 ! 1-218-265-11 METAL 8.2M...
  • Page 70 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK C5955 1-104-664-11 ELECT 47UF 20.00% 16V <COIL>...
  • Page 71 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK R1812 1-249-435-11 CARBON 1/4W * A-1241-450-A F BOARD MOUNTED...
  • Page 72 KV-XA21M80/XA21M83/XA21M50/ KV-XA21M61/ XA21M60 The components identified by shading RM-952 and mark ! are critical for safety. Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK <JACK> <CHIP CONDUCTOR> J3421 1-694-719-11 TERMINAL, PUSH (4P)
  • Page 73 * 4-081-440-01 CUSHION (LOWER) ASSY (KV-XA21M60 Only) (KV-XA21M50(GE)/M80/M83) 4-080-934-11 MANUAL INSTRUCTION (KV-XA21M60 Only) 1-569-008-21 ADAPTOR, CONVERSION 2P (KV-XA21M80(E)/XA21M83 Only) 4-080-391-12 MANUAL INSTRUCTION (KV-XA21M80(ME)) 1-529-968-11 SPEAKER (5CM) (KV-XA21M83 Only) 4-080-391-21 MANUAL INSTRUCTION (KV-XA21M50/M80) 1-529-125-11 SPEAKER (13X7CM) 4-392-003-11 BAND, HOLD (Except KV-XA21M60)
  • Page 74 Replace only with part number specified. REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK Sony Corporation English 2000LS70168-1 Sony Technology Malaysia Sdn. Bhd. Printed in Malaysia 9-872-232-01 Visual Entertainment General Area  2000.12 – 90 –...
