Sony TRINITRON KV-X2151D Service Manual

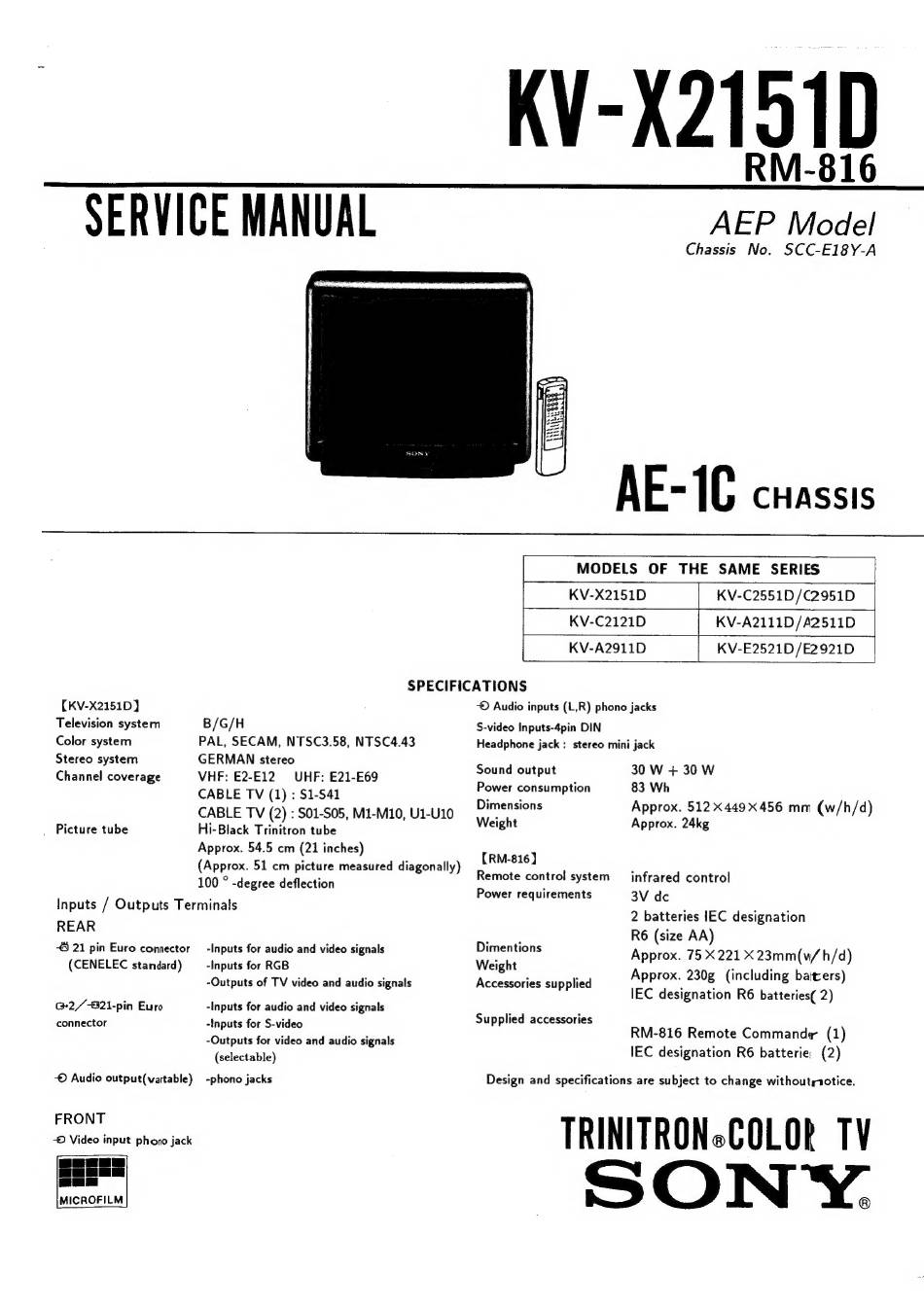

SERVICE MANUAL
KV-X2151D
RM-816
AEP Model
Chassis No. SCC-E18Y-A
AE-1C CHASSIS
MODELS OF THE SAME SERIES
KV-X2151D KV-C2551D/C2951D
KV-C2121D KV-A2111D/A2511D
KV-A2911D KV-E2521D/E2921D
SPECIFICATIONS
(KV-X2151D}
Television system
Color system
Stereo system
Channel coverage
B/G/H
PAL, SECAM, NTSC3.58, NTSC4.43
GERMAN stereo
VHF: E2-E12 UHF: E21-E69
CABLE TV (1) : $1-$41
CABLE TV (2) : S01-S05, M1-M10, U1-U10
Hi-Black Trinitron tube
Approx. 54.5 cm (21 inches)
(Approx. 51 cm picture measured diagonally)
100 ° -degree deflection
_ Picture tube
Inputs / Outputs Terminals
REAR
21 pin Euro connector
(CENELEC standard)
-Inputs for audio and video signals
-Inputs for RGB
-Outputs of TV video and audio signals
G@2/-821-pin Euro -Inputs for audio and video signals
connector -Inputs for S-video
-Outputs for video and audio signals
(selectable)
© Audio output(vartable) -phono jacks
FRONT
-5 Video input phono jack
MICROFILM
© Audio inputs (L,R) phono jacks
S-video Inputs-4pin DIN
Headphone jack : stereo mini jack
30 W + 30 W
83 Wh
Sound output
Power consumption
Remote control system infrared control
Power requirements 3V dc
2 batteries IEC designation
es R6 (size AA)
partentions Approx. 75 X 221 X 23mm(w/h/d)
Weight
Approx. 230g (including baiters)
A i lied : -
aaa aa IEC designation R6 batteries( 2)
Supplied accessories
RM-816 Remote Commande (1)
IEC designation R6 batterie, (2)
Design and specifications are subject to change withoutrtotice.
TRINITRON-COLOL TV
SONY.
