Trion Air Boss T1001 Module Installation And Operation Manual

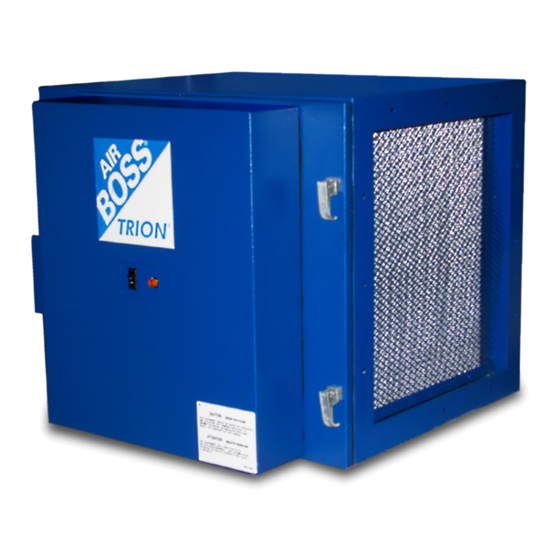

Air boss t-series custom packaged electronic air cleaner
Hide thumbs
Also See for Air Boss T1001 Module:
- Installation and service manual (23 pages) ,
- Specifications (2 pages) ,
- Instructions manual (22 pages)
Table of Contents
Advertisement
CUSTOM PACKAGED
ELECTRONIC
AIR CLEANER
Air Boss
T-Series
T1001 Module
T2002 Module
T1300
T2600
•
INSTALLATION
•
OPERATION
•
SERVICE
Electrostatic Precipitators for
Commercial & Industrial
Applications
101 McNeill Road • Sanford, NC 27330
•
(919) 775-2201 Fax: (919) 777-6399 (800) 884-0002
www.trioninc.com
T NO. 149869-001 •
MANUAL PAR
•
June 2004
4
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Trion Air Boss T1001 Module
Summary of Contents for Trion Air Boss T1001 Module
-
Page 1: Air Cleaner
CUSTOM PACKAGED ELECTRONIC AIR CLEANER Air Boss T-Series T1001 Module T2002 Module T1300 T2600 • INSTALLATION • OPERATION • SERVICE Electrostatic Precipitators for Commercial & Industrial Applications 101 McNeill Road • Sanford, NC 27330 • • (919) 775-2201 Fax: (919) 777-6399 (800) 884-0002 www.trioninc.com... -
Page 2: Table Of Contents
TABLE OF CONTENTS Page I. Specifications...........................3 II. Pr eparation For Installation ......................4 New Unit Inspection........................4 Operation ............................4 How It Operates..........................4 Unit Operation ..........................4 Ducting Application ........................5 III. Installation ............................5 Liquid Aerosol Installation ......................5 Electrical Installation ........................6 IV. Maintenance ..........................6 Cleaning ............................6 Inspections ...........................7 V. -
Page 3: Specifications
SPECIFICATIONS: POWER REQUIREMENTS Model Voltage AMPS (Max) T1001 Module 120V, 60 HZ, 1 PH. T1001 Module 230V, 50 HZ, 1 PH. T1001 Module 230V, 60 HZ, 1 PH. T1001 Module 230V, 60 HZ, 3 PH. T1001 Module 460V, 60 HZ, 3 PH. -
Page 4: Preparation For Installation
National Electrical Code, Canadian Electrical Code, Part 1 or other applicable electrical codes. For maximum air cleaning efficiency, your air cleaner should be located as specified by your Trion representative. The unit can be either wall-mounted or chain-hung. Trion can supply eyebolts. -
Page 5: Ducting Application
Ventilation Handbook from your local Trion representative. To maintain the selected cleaning efficiency, it is important to assure that the total air volume (capacity in CFM or m3/hr) is uniformly distributed across the entire face area of the unit. The metal mesh filters, perforated plate or mist suppressors provide some resistance to effect even air distribution. -
Page 6: Electrical Installation
A. All construction debris is removed from the ionizing- collecting cells, drain connections and ductwork. B. The drain line from the Trion drain basin is clear and completely connected to its point of termination. C. Supply line power is available and electrical wiring is completed to the junction box. -
Page 7: Inspections
Collector elements still wet – Allow more drying time Inspections b. See “Continuous arcing noise” below The motors and blowers on Trion T1300 and T2600 air 3. Continuous arcing noise and flickering indicating cleaners have sealed ball bearings and never need light lubricating. - Page 14 Blower / Motor Assembly FIG 6...
-
Page 22: Contact Information
Contact Information Headquarters Trion, Inc. Trion LTD. 101 McNeill Road The Cavendish Center Sanford, NC 27330 Winnall Close Tel. 800 884 0002 Winchester, Hampshire Fax 919 777 6399 SO23 OLB, UK Email: sales@trioninc.com Tel. 440 1962 840465 Fax 44 0 1962 828619 Email: info@trion.co.uk...
