Trion T1001 Specifications

T-SERIES
Model: T4002

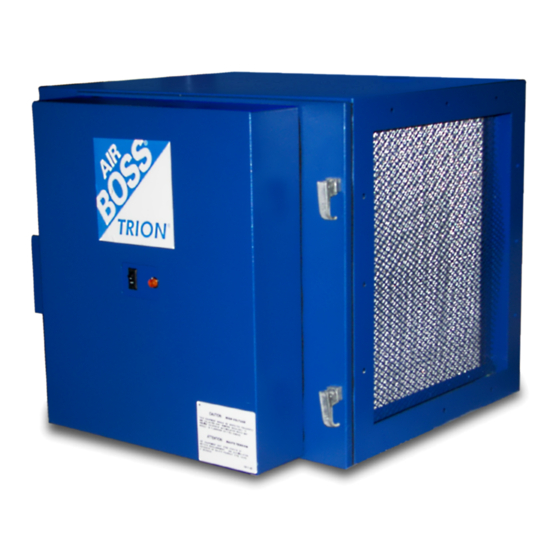

Trion Models T1001, T2002, T4002, T6002 and T8002 are high efficiency electrostatic modules for
in-duct installation where air movement is provided by other external sources.
Power Supply - Solid state unit mounted in external housing which also incorporates door operated
electrical safety interlock switch. Neon lamps provide 'Mains On' and 'HT ON' indication. The output of
the Ionizer = 12Kv, the Collector = 5.9Kv.
Pre-Filter - Close weave aluminium mesh uniformly distributes fume laden air and collects large
particles.
Ionizer Cell - Spiked saw blade type plates are fitted on all Trion T-Series units. They have the
advantage over standard tungsten wires for more effective air cleaning efficiency and an almost
unlimited life span.
Specifications
Airflow rating m 3 /hr
Power Consumption
Electrical Supply
Cabinet Dimensions mm
Height
Width
Length
Duct Dimensions mm
Height
Width
Weight (kg)
No. of Collector Cells
TRION
A FEDDERS ENGINEERED PRODUCTS COMPANY

FEATURES AND BENEFITS

T1001 T2002
1359-2209 2718-4417
50 Watts 50 Watts
230V / 1ph / 50Hz - Controls 24V
533 533
626 1087
635 635
432 432
397 857
44 80
1 2
®
T4002 T6002
5437-8835 8154-13251 10800-17680
100 Watts 150 Watts
1066 1599
1087 1087
635 635
965 1498
857 857
160 240
4 6
T8002
200 Watts
2132
1087
635
2034
857
320
8
